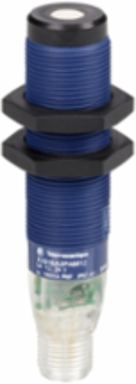

Telemecanique Sensors XX218A3PHM12 Ultrasonic sensors XX, ultrasonic sensor cylindrical M18, 2 emptying levels, Sn 0.5 m, NO, M12
- MPN: XX218A3PHM12
- PPN: TES-XX218A3PHM12
- UNSPSC: 39122230
CAD
$315.37
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
The XX range is an offer of sensors using the ultrasonic technology for the detection of any material, without contact. This product is designed for monitoring 2 emptying levels. This product features a cylindrical plastic case, diameter 18mm and an M12, 4-pin connector. DC supply, NO function, PNP solid-state output, diffuse detection system. Its sensing distance is 0.50m, remotely adjustable or by using external teach button.
Documentation & Downloads
Specifications
Key Specifications
| [Us] Rated Supply Voltage | 12...24 V DC reverse polarity protection |
|---|---|
| Discrete Output Function | 1 NO |
| Range Of Product | Telemecanique Ultrasonic sensors XX |
| [Sd] Sensing Range | 0.051-0.508 m |
| Wiring Technique | 3-wire |
| Series Name | Application |
| Detection System | diffuse |
| Sensor Type | ultrasonic sensor |
| Sensor Design | cylindrical M18 |
| Discrete Output Type | PNP |
|---|---|
| Type Of Output Signal | discrete |
| Sensor Name | XX2 |
| Material | plastic |
| Ip Degree Of Protection | IP67 conforming to IEC 60529 |
| Beam Angle | 6 ° |
| Product Specific Application | for 2 emptying levels monitoring |
| Electrical Connection | male connector M12 4 pins |
| [Sn] Nominal Sensing Distance | 0.5-0.5 m adjustable with remote teach push-button |
Complementary
| Repeat Accuracy | 1.27 % |
|---|---|
| Maximum Switching Current | 100 mA overload and short-circuit protection |
| Maximum Delay Response | 15 ms |
| Status Led | setting-up assistance 1 LED dual colour) || supply on 1 LED green) || output state 1 LED yellow) |
| [Sa] Assured Operating Distance | 0.051-0.508 m teach mode) |
| Marking | CE |
| Net Weight | 0.033 kg |
| Maximum Differential Travel | 2.5 mm |
| Thread Type | M18 x 1 |
| Maximum Delay First Up | 100 ms |
| Enclosure Material | valox |
| Front Material | epoxy |
| Height | 18 mm |
|---|---|
| Minimum Size Of Detected Object | cylinder diameter 2.5 mm 0.15 m |
| Maximum Voltage Drop | 1 V |
| Transmission Frequency | 300 kHz |
| Threaded Length | 43 mm |
| Blind Zone | 0-51 mm |
| Current Consumption | 40 mA |
| Deviation Angle From 90° Of Object To Be Detected | -7-7 ° |
| Maximum Delay Recovery | 1000 ms |
| Supply Voltage Limits | 10-28 V DC |
| Width | 18 mm |
| Depth | 79 mm |
Environment
| Product Certifications | cCSAus || UL |
|---|---|
| Resistance To Electromagnetic Fields | 10 V/m level 3 IEC 61000-4-3 |
| Vibration Resistance | +/-1 mm 10-55 Hz)IEC 60068-2-6 |
| Ambient Air Temperature For Storage | -40-80 °C |
| Resistance To Fast Transients | 1 kV level 3 IEC 61000-4-4 |
| Ambient Air Temperature For Operation | -20-65 °C |
|---|---|
| Standards | IEC 60947-5-2 |
| Shock Resistance | 30 gn in all 3 axes 11 ms IEC 60068-2-27 |
| Resistance To Electrostatic Discharge | 8 kV level 4 IEC 61000-4-2 |
Contractual warranty
| Warranty | 18 months |
|---|
Offer Sustainability
| Rohs Exemption Information | Yes |
|---|---|
| Environmental Disclosure | ENVPEP111234EN |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| Circularity Profile | ENVEOLI111225EN |
| Mercury Free | Yes |
|---|---|
| Sustainable Offer Status | Green Premium product |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
