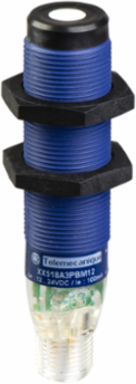

Telemecanique Sensors XX518A3PBM12 Ultrasonic sensors XX, ultrasonic sensor, diameter 18 mm, sensor XX5
- MPN: XX518A3PBM12
- PPN: TES-XX518A3PBM12
CAD
$237.63
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Ultrasonic sensors XX, ultrasonic sensor, diameter 18 mm, sensor XX5
Documentation & Downloads
Specifications
Key Specifications
| Discrete Output Type | PNP |
|---|---|
| Type Of Output Signal | discrete |
| Sensor Name | XX5 |
| Material | valox |
| Ip Degree Of Protection | IP67 IEC 60529 |
| Product Specific Application | optimum and universal |
| Electrical Connection | 1 male connector M12 4 pins |
| [Us] Rated Supply Voltage | 12...24 V DC reverse polarity protection |
| Discrete Output Function | 1 NC |
|---|---|
| Range Of Product | Telemecanique Ultrasonic sensors XX |
| [Sd] Sensing Range | 50.8-508 mm |
| Wiring Technique | 4-wire |
| Beam Angle | 5 ° |
| Sensor Type | ultrasonic sensor |
| Sensor Design | Ø 18 mm |
Complementary
| Iso Thread | M18 x 1 |
|---|---|
| Repeat Accuracy | 1.27 % |
| Minimum Size Of Detected Object | cylinder diameter 2.5 mm - up to 254 mm sensing distance |
| Switching Frequency | 40 Hz |
| Status Led | setting-up assistance 2 LEDs green/yellow (flashing)) || output state 2 LEDs green/yellow) |
| [Sa] Assured Operating Distance | 51-508 mm teach mode) |
| Marking | CE |
| Net Weight | 0.033 kg |
| Current Consumption | 40 mA |
| Blind Zone | 51 mm |
| Maximum Delay Recovery | 1000 ms |
| Supply Voltage Limits | 10-28 V DC |
| Width | 18 mm |
| Depth | 18 mm |
| Cad Overall Depth | 18 mm |
| Type Of Sensing Window | adjustable |
|---|---|
| Height | 18 mm |
| Maximum Switching Current | 100 mA overload and short-circuit protection |
| Maximum Delay Response | 15 ms |
| Transmission Frequency | 300 kHz |
| Maximum Voltage Drop | <1.5 V |
| Length | 77.62 mm |
| Cad Overall Height | 0.654 mm |
| Maximum Differential Travel | 2.5 mm |
| Deviation Angle From 90° Of Object To Be Detected | -10-10 ° |
| Maximum Delay First Up | 100 ms |
| Enclosure Material | ULTEM |
| Front Material | glass epoxy |
| Cad Overall Width | 18 mm |
| [Sn] Nominal Sensing Distance | 508 mm |
Environment
| Product Certifications | UL |
|---|---|
| Resistance To Electromagnetic Fields | 10 V/m level 3 IEC 61000-4-3 |
| Vibration Resistance | +/-1 mm 10-55 Hz)IEC 60068-2-6 |
| Ambient Air Temperature For Storage | -40-80 °C |
| Resistance To Electrostatic Discharge | 8 kV level 4 IEC 61000-4-2 |
| Ambient Air Temperature For Operation | -30-70 °C |
|---|---|
| Standards | IEC 60947-5-2 |
| Shock Resistance | 30 gn in all 3 axes 11 ms IEC 60068-2-27 |
| Nema Degree Of Protection | NEMA 4X indoor use only) |
| Resistance To Fast Transients | 1 kV level 3 IEC 61000-4-4 |
Contractual warranty
| Warranty | 18 months |
|---|
Offer Sustainability
| Rohs Exemption Information | Yes |
|---|---|
| Environmental Disclosure | ENVPEP111234EN |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Mercury Free | Yes |
|---|---|
| Sustainable Offer Status | Green Premium product |
| Circularity Profile | ENVEOLI111225EN |
