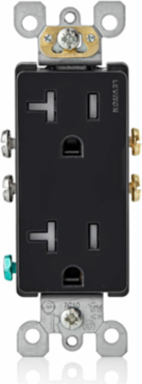

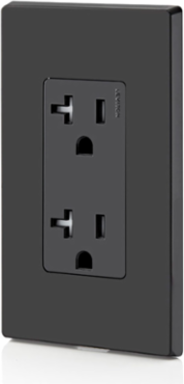

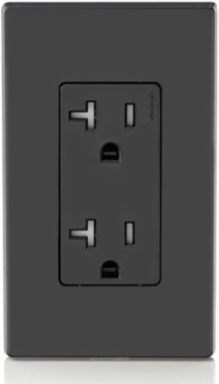

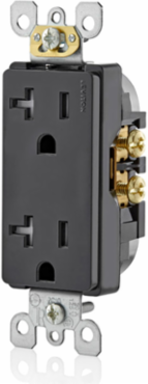

Leviton T5825-E 20 Amp Tamper-Resistant Duplex Outlet 125 Volt NEMA 5-20R Black
- MPN: T5825-E
- UPC: 078477450512
- PPN: LEV-T5825-E
CAD
$7.54
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
20 Amp, 125 Volt, NEMA: 5-20R, Pole: 2, 3-Wire, Tamper-Resistant, Duplex Receptacle/Outlet, Straight Blade, Self Grounding, Side Wired Only, NEC compliant – Black
Features
- Terminal screws accept #10 and #12 AWG copper (CU) or #10 copper clad (CC) wire
- SAFE – Tamper-Resistant offers protection from electrical shocks
- DURABLE – Impact-resistant thermoplastic nylon construction
- EASY – Side wiring for easy installation
- CONVENIENT – TR symbol on strap assures they meet the latest NEC requirements
Documentation & Downloads
Specifications
Additional
- Amperage
- 20 A
- NEMA Configuration
- 5-20R
- Tamper-Resistant
- Yes
- Torque Range
- 14–18 in-lbs
- Material
- Impact-resistant thermoplastic nylon
- Country of Origin
- China
- UL 498
- File E13399
Voltage125 VAC
TypeDuplex Receptacle
TerminationSide
Terminal AccommodationAccepts #10 and #12 AWG copper or #10 copper clad wire
ColorBlack
CSA C22.2 No. 42File 152105; Class 6233-01
NOMNOM Certified
