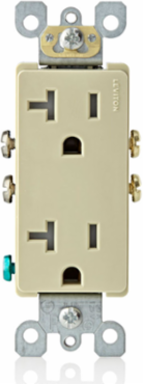

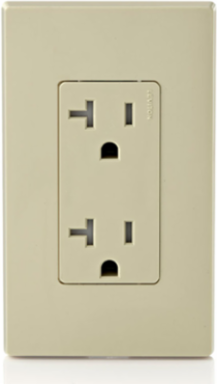

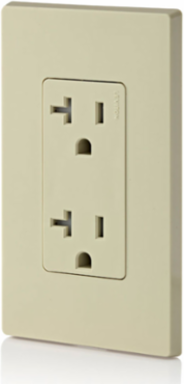

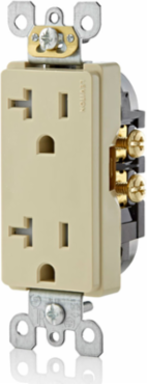

Leviton T5825-I 20 Amp Tamper-Resistant Duplex Receptacle, 125 Volt, Side Wired, Ivory
- MPN: T5825-I
- UPC: 078477450505
- PPN: LEV-T5825-I
CAD
$7.54
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
20 Amp, 125 Volt, NEMA: 5-20R, Pole: 2, 3-Wire, Tamper-Resistant, Duplex Receptacle/Outlet, Straight Blade, Self Grounding, Side Wired Only, NEC compliant – Ivory
Features
- Terminal screws accept #10 and #12 AWG copper (CU) or #10 copper clad (CC) wire
- SAFE – Tamper-Resistant offers protection from electrical shocks
- DURABLE – Impact-resistant thermoplastic nylon construction
- EASY – Side wiring for easy installation
- CONVENIENT – TR symbol on strap assures they meet the latest NEC requirements
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- China
RoHS CompliantFalse
Standards & Certifications
- CSA C22.2 No. 42
- File 152105; Class 6233-01
- NOM
- NOM Certified
NEMAWD-6
UL 498File E13399
Product Features
- Amperage
- 20 A
- Feature
- Tamper-Resistant
- Ratings
- 20A-125V
- Termination
- Side
- Type
- Duplex Receptacle
- Warranty
- 2-Year Limited
ColorIvory
Product TypeDecora
Terminal Accom.Side wiring accepts #10 and #12 AWG copper (CU) or #10 copper clad (CC) wire
Torque Range14 – 18 in.-lbs
Voltage125 VAC
