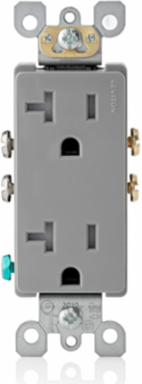

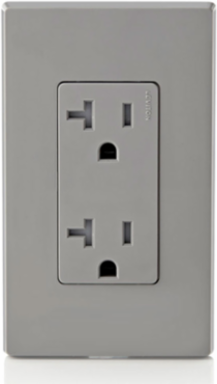

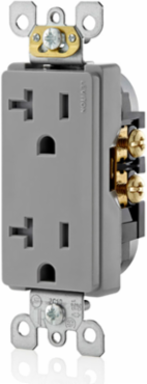

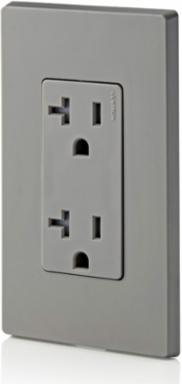

Leviton T5825-GY 20 Amp Tamper-Resistant Duplex Outlet/Receptacle, Gray, NEMA 5-20R, Side Wired
- MPN: T5825-GY
- UPC: 078477450529
- PPN: LEV-T5825-GY
CAD
$7.54
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
20 Amp, 125 Volt, NEMA: 5-20R, Pole: 2, 3-Wire, Tamper-Resistant, Duplex Receptacle/Outlet, Straight Blade, Self Grounding, Side Wired Only, NEC compliant – Gray
Features
- Terminal screws accept #10 and #12 AWG copper (CU) or #10 copper clad (CC) wire
- SAFE – Tamper-Resistant offers protection from electrical shocks
- DURABLE – Impact-resistant thermoplastic nylon construction
- EASY – Side wiring for easy installation
- CONVENIENT – TR symbol on strap assures they meet the latest NEC requirements
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | China |
|---|
| RoHS Compliant | False |
|---|
Product Features
| Amperage | 20 A |
|---|---|
| Feature | Tamper-Resistant |
| Ratings | 20A-125V |
| Termination | Side |
| Type | Duplex Receptacle |
| Warranty | 2-Year Limited |
| Color | Gray |
|---|---|
| Product Type | Decora |
| Terminal Accom. | Side wiring accepts #10 and #12 AWG copper (CU) or #10 copper clad (CC) wire |
| Torque Range | 14 – 18 in.-lbs |
| Voltage | 125 VAC |
Standards & Certifications
| CSA C22.2 No. 42 | File 152105; Class 6233-01 |
|---|---|
| NOM | NOM Certified |
| NEMA | WD-6 |
|---|---|
| UL 498 | File E13399 |
