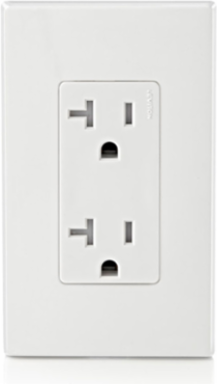

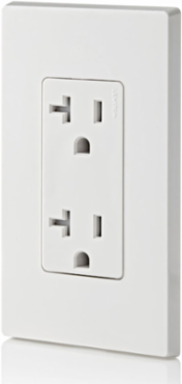

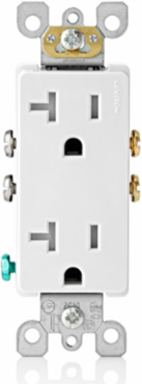

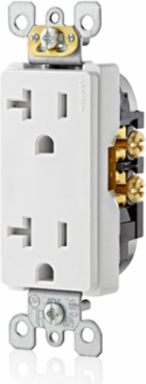

Leviton T5825-W 20 Amp Decora Tamper-Resistant Duplex Outlet, 125 Volt, NEMA 5-20R
- MPN: T5825-W
- UPC: 078477450352
- PPN: LEV-T5825-W
CAD
$7.54
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
20 Amp, 125 Volt, NEMA: 5-20R, Pole: 2, 3-Wire, Tamper-Resistant, Duplex Receptacle/Outlet, Straight Blade, Self Grounding, Side Wired Only, NEC compliant – White
Features
- Terminal screws accept #10 and #12 AWG copper (CU) or #10 copper clad (CC) wire
- SAFE – Tamper-Resistant offers protection from electrical shocks
- DURABLE – Impact-resistant thermoplastic nylon construction
- EASY – Side wiring for easy installation
- CONVENIENT – TR symbol on strap assures they meet the latest NEC requirements
Documentation & Downloads
Specifications
Additional
- Amperage
- 20 A
- NEMA Configuration
- 5-20R
- Torque Range
- 14–18 in.-lbs
- Wire Gauge Acceptable
- #10 and #12 AWG copper (CU), #10 copper clad (CC)
- Grounding
- Self Grounding
- Color
- White
- Material
- Impact-Resistant Thermoplastic Nylon
- UL 498
- File E13399
- RoHS Compliant
- False
Voltage125 V
TypeDuplex Receptacle
Wiring3-Wire
Wiring MethodSide wired
Tamper ResistanceYes
Country of OriginChina
CSA C22.2 No. 42File 152105; Class 6233-01
NOMNOM Certified
