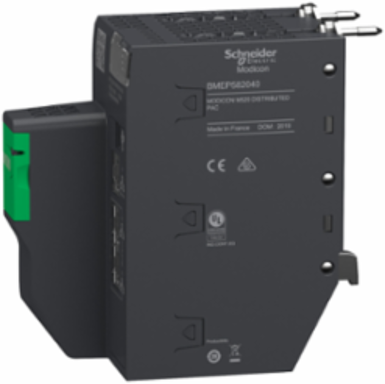

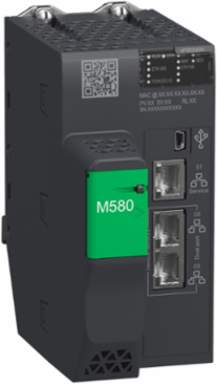

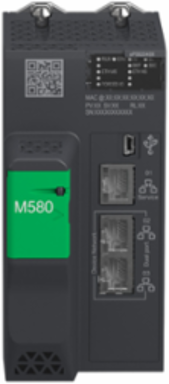

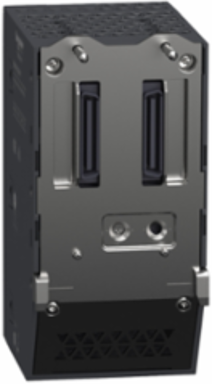

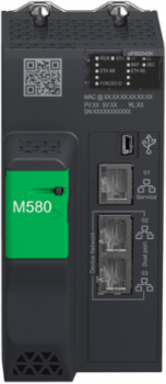

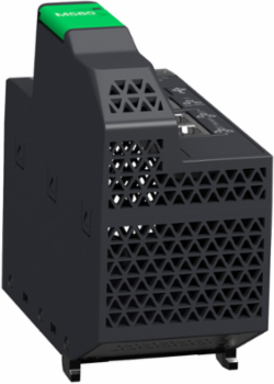

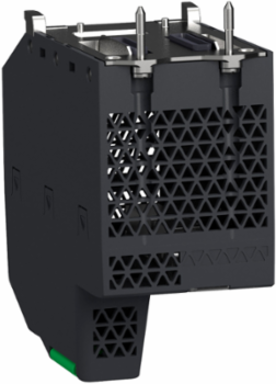

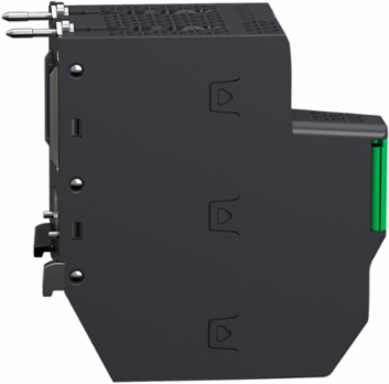

Schneider Electric BMEP582040H Modicon M580 Processor Module 8MB IP20, 2048 I/O Channels, -25 to 70 C
- MPN: BMEP582040H
- PPN: SCH-BMEP582040H
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
This product is part of the Modicon M580 range, an offer of Programmable Automation Controllers (PAC) and safety Programmable Logic Controllers (PLC) with built-in Ethernet. This processor module offers a maximum of 4 rack configuration and 72 application specific channels. It is a processor module with a current consumption of 270mA at 24V DC. It supports 2048 discrete, 512 analogue local I/O channels and 64 distributed equipment. This ruggedized product can be used in more severe environments, and operate in an extended temperature range, from -25°C to +70°C. It is integrated with Ethernet TCP/IP for service port, 2 Ethernet TCP/IP for device network, Ethernet for HSBY port and USB type mini B for connections. It offers 600000 hours of MTBF. It has 8 - 2 racks per remote drop for I/O station. It has an integrated RAM of 8MB for program, 768kb for data, 10kb for system memory and expandable flash of 4GB for data storage. It is an IP20 rated product. It weighs 0.849kg. It is suitable for medium to large process applications. This product is certified by UL, ATEX, IEC-Ex, CE, Merchant Navy, CSA, RCM and EAC. It meets EN 61131-2, EN 61000-6-4, EN 61000-6-2 and EN 61010-2-201 standards. The benefits of Modicon M580 are reduce time to market, improve reliability and sustainability, improve productivity with high performance and increase operating profitability due to improved access to data.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Argentina
Compliance|TAA Compliant | BAA Compliant via COTS
Communications & Management Attributes
- Communication Service
- RIO scanner, DIO scanner
Communication Module Processor Capacity2 Ethernet communication module16 AS-Interface module
Complementary Attributes
- Integrated Connection Type
- 1 Ethernet TCP/IP service port2 Ethernet TCP/IP device network, USB type mini B
Important Information Attributes
- Persona Type Ids
- EU, OM8, SI
- Application Structure
- 1 periodic fast task, 64 event tasks, 1 cyclic/periodic master task, 2 auxiliary tasks
- Status Led
- 1 LED (Green) processor running (RUN)1 LED (Red) processor or system fault (ERR), 1 LED (Red) I/O module fault (I/O), 1 LED (Green) download in progress (DL), 1 LED (Red) memory card or CPU flash fault (BACKUP)1 LED (green/red) ETH MS (Ethernet port configuration status), 1 LED (green/red) Eth NS (Ethernet network status)
- Application Specific I/O
- counter, HART, SSI encoder, accurate time stamping, motion control, serial link
- Carbon Footprint Of The End-of-life Phase [C1 To C4]
- 0.4 kg CO2 eq., 0.3797219836
- Carbon Footprint Of The Manufacturing Phase [A1 To A3]
- 66 kg CO2 eq., 65.8739084507
- Local Data Status
- Publishable
- Return Indicator
- Y
- Device Type
- PLC System - PLC CPU
- Traceability
- Yes
- Average Life Duration
- 20 year(s)
- Weee Product Category
- 5
- Eoli Availability Display
- Yes
- Reach Full Compliance Status
- Reference contains Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Reference contains Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant By Exemption
- Rohs Eur Full Compliance Status
- Compliant By Exemption
- China Rohs Label
- 5
- Without Single Use Plastic
- No
- Tier Id
- 1
- Function Option Id
- ADVANCED
- Market Segmentation Id
- INDUSTRIAL
- Product Kit Identifier
- N
- Control Channels
- programmable loops
- Marking
- CE
- Mtbf Reliability
- 775000 H
- Number Of Distributed Equipment
- 64
- Number Of Racks
- 4
- Product Or Component Type
- processor module
- Protective Treatment
- conformal coating
- Returnability
- Yes
- Software Version
- EIME v5.8.1
- Sustainable Packaging
- No
- Vibration Resistance
- 3 gn
- Database Version
- 2020-12
- Pcr Version
- PCR-ed3-EN-2015 04 02
- Data Source
- extrapolated product
- Functional-unit Quantity
- 1
- Reference Lifetime In Y
- 10
- Energy Model - Manufacturing [A1-a3]
- Energy model used: France
- Energy Model - Use [B6]
- Electricity grid mix; AC; consumption mix, at consumer; 230V; FR / Electricity mix; AC; consumption mix, at consumer; 120V; US / Electricity grid mix; AC; consumption mix, at consumer; 230V; CH
- Analogue I/O Processor Capacity
- 512 I/O
- Number Of Remote I/O Station
- 8 - 2 remote drop
- Package Weight(Lbs)
- 881.000 g
- Warranty (In Months)
- 18
Persona Type NamesEnd User, OEM - Control Panelbuilder, System Integrator
Environmental Characteristicgas resistant class Gx ISA S71.04gas resistant class 3C4 IEC 60721-3-3dust resistant class 3S4 IEC 60721-3-3, sand resistant class 3S4 IEC 60721-3-3, salt resistant level 2 IEC 68252mold growth resistant class 3B2 IEC 60721-3-3, fungal spore resistant class 3B2 IEC 60721-3-3hazardous location class I division 2
Certificate AgencyCE, UL, CSA, RCM, EAC, Merchant Navy, ATEX zone 2/22IECEx zone 2/22
Carbon Footprint Of The Distribution Phase [A4]0.1159942136, 0.1 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]0.0032860982, 0 kg CO2 eq.
Carbon Footprint Of The Use Phase [B2 B3 B4 B6]166 kg CO2 eq., 165.5145762712
Local Publishable Date2026-06-10
Stocking FlagN
ServiceabilityYes
Field Service DivisionIDIBS
Weee ScopeOut
Scope PerimeterAt least in Europe
End Of Life Doc RefENVEOLI1312016EN
Reach Full Compliance Status IdCONTAINS_SVHC
Rohs Eur In ScopeNo
Rohs Eur Conformity Date1949
China Rohs In ScopeYes
With Recycled CardboardYes
Product Contributes To Saved And Avoided EmissionsNo
Tier1
Function OptionAdvanced
Market SegmentationIndustrial
Checksprocess control
Current Consumption270 mA 24 V DC
Memory Descriptionexpandable flash, 4 GB data storageintegrated RAM, 10 kB system memoryintegrated RAM, 8 MB programintegrated RAM, 768 kB data
Number Of Application Specific Channel72
Number Of Instructions Per Ms30 Kinst/ms 65 % Boolean + 35 % fixed arithmetic40 Kinst/ms 100 % Boolean
Product AvailabilityStock - Normally stocked in distribution facility
Product Specific Applicationfor severe environments
Range Of ProductModicon M580
Shock Resistance30 gn
Supplyinternal power supply via rack
Total Lifecycle Carbon Footprint232 kg CO2 eq.
Pep CodeENVPEP1312016EN
Pep Verification Date2022-12-01
Type Of Verification For The PepIndependent external review
Functional-unit DescriptionThe Modicon M580 ePAC module provides cutting-edge features and high-end performances for small to large process automation for 10 years with a 100% use rate. Typical electrical power is 7,08 W (295 mA at 24 V DC)
Functional-unit Unitunit
Energy Consumption On Product Lifetime In Kwh510.8832
Energy Model - Installation [A5]Electricity grid mix; AC; consumption mix, at consumer; 230V; FR / Electricity mix; AC; consumption mix, at consumer; 120V; US / Electricity grid mix; AC; consumption mix, at consumer; 230V; CH
Energy Model - End Of Life [C1-c4]Electricity grid mix; AC; consumption mix, at consumer; 230V; FR / Electricity mix; AC; consumption mix, at consumer; 120V; US / Electricity grid mix; AC; consumption mix, at consumer; 230V; CH
Discrete I/O Processor Capacity2048 I/O
Nbr. Of Units In Pkg.1
Take-backNo
Customs Code8537109160
Environment Attributes Main
- Ambient Air Temperature For Operation
- -25-70 °C, -25-70 °C
- Directives
- 2014/35/EU - low voltage directive, 2014/30/EU - electromagnetic compatibility, 2014/34/EU - ATEX directive
- Recycled Metal Content At Cr Level
- 0 %
- Mercury Free
- Yes
- Circularity Profile
- ENVEOLI1312016EN
- Eu Rohs Directive
- Compliant By Exemption
- Operating Altitude
- 0...6561.68 ft (0...2000 m)2000...5000 m with derating factor
- Packaging Without Single Use Plastic
- No
- Relative Humidity
- 5-95 % 55-55 °C without condensation
- Pep Verification Date
- 2022-12-01
- Type Of Verification For The Pep
- Independent external review
Ambient Air Temperature For Storage-40-85 °C, -40-85 °C
Take BackNo
China Rohs RegulationX
Carbon Footprint231.8874870173
Environmental DisclosureENVPEP1312016EN
Ip Degree Of ProtectionIP20
Packaging Made With Recycled CardboardYes
Reach RegulationReference contains Substances of Very High Concern above the threshold
Pep CodeENVPEP1312016EN
Pcr VersionPCR-ed3-EN-2015 04 02
General Attributes
- Product Or Component Type
- processor module
Range Of ProductModicon M580
ETIM
- ETIM 8
- EC000236
ETIM 9EC000236
