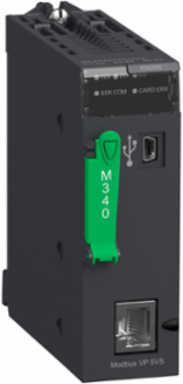

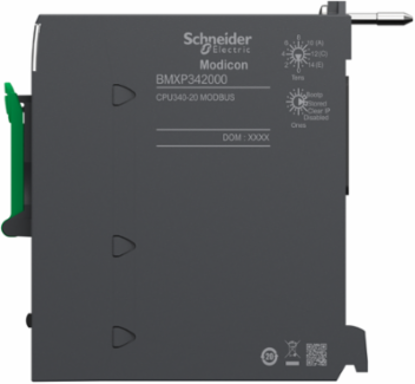

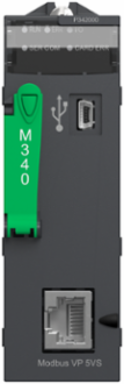

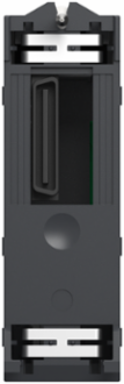

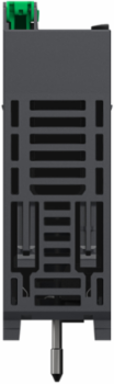

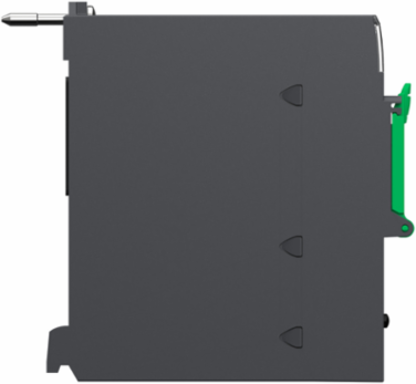

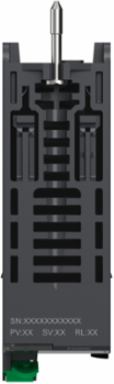

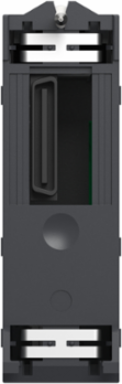

Schneider Electric BMXP342000 Modicon M340 Processor Module, 1024 Discrete I/O, 256 Analog I/O, IP20
- MPN: BMXP342000
- PPN: SCH-BMXP342000
CAD
$2206.48
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
This processor module is part of the Modicon M340 range, an offer of Programmable Automation Controllers (PAC). It offers a maximum of 1 rack configuration, 36 application specific channels and 11 slots. It is a processor module with a current consumption of 72mA at 24V DC, works with internal power supply. This product is robust, high quality and based on the latest innovative technology. Communication processor module interfaces are 2 Ethernet modules and 4 AS-Interface modules. It is supplied with a memory card for backup of programs, constants, symbols and data. It is an IP20 rated product. The module has 1024 multi-rack configuration discrete I/O processor capacity and 256 multi-rack, 66 single-rack configuration analog I/O processor capacity. It supports 128kb data, 2048kb, 1792kb program internal RAM memory capacity. It weighs 0.2kg. It is suitable for process industries, renewable energies, water, cement, manufacturing, infrastructures and machines applications. This product is certified by CE. It meets EN 61131-2, EN 61000-6-4, EN 61000-6-2 and EN 61010-2-201 standards. This processor module is compatible with Modicon M340 Programmable Logic Controllers (PLC). It is delivered in 2 packages (PCE and SO2 types). Compact-shaped, Modicon M340 offers in small box flexibility and integrated functions. In the heart of process, it provides you plug and work solutions with both Schneider Electric and third party devices.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- France, United States
Communications & Management Attributes
- Communication Module Processor Capacity
- 2 Ethernet communication module4 AS-Interface module
Physical Attributes
- Bus Length
- 0-1000 m serial link isolated Modbus segment0-15 m Modbus point-to-point, 0-10 m serial link non isolated character mode segment, 0-10 m serial link non isolated Modbus segment, 0-1000 m serial link isolated character mode segment, 0-15 m character mode point-to-point
Default Size Of Object Areas1024 %MWi internal words located internal data256 %KWi constant words located internal bits, 512 %Mi located internal data
Complementary Attributes
- Integrated Connection Type
- non isolated serial link RJ45, master/slave Modbus, RTU/ASCII asynchronous in baseband, RS485 1 twisted shielded pair 0.3...19.2 kbit/s half duplex, non isolated serial link RJ45 character mode asynchronous in baseband, RS232C 2 twisted shielded pairs 0.3...19.2 kbit/s full duplex, non isolated serial link RJ45 character mode asynchronous in baseband, RS485 1 twisted shielded pair 0.3...19.2 kbit/s half duplex, non isolated serial link RJ45, master/slave Modbus, RTU/ASCII asynchronous in baseband, RS232C 1 twisted shielded pair 0.3...19.2 kbit/s half duplexUSB port 12 Mbit/s
- Maximum Tap Links Length
- <15 m serial link non isolated character mode segment, <15 m serial link non isolated character mode segment, <15 m serial link non isolated character mode segment, <15 m serial link non isolated character mode segment, <15 m serial link non isolated Modbus segment, <15 m serial link non isolated Modbus segment, <15 m serial link non isolated Modbus segment, <15 m serial link non isolated Modbus segment, <40 m serial link isolated character mode segment, <40 m serial link isolated character mode segment, <40 m serial link isolated character mode segment, <40 m serial link isolated character mode segment, <40 m serial link isolated Modbus segment, <40 m serial link isolated Modbus segment, <40 m serial link isolated Modbus segment, <40 m serial link isolated Modbus segment<15 m serial link non isolated character mode segment, <15 m serial link non isolated character mode segment, <15 m serial link non isolated character mode segment, <15 m serial link non isolated character mode segment, <15 m serial link non isolated Modbus segment, <40 m serial link isolated character mode segment, <40 m serial link isolated character mode segment
Maximum Size Of Object Areas32634 %Mi located internal bits32464 %MWi internal words located internal data, 32760 %KWi constant words located internal data
Important Information Attributes
- Persona Type Ids
- EU, OM8, SI
- Application Structure
- 1 cyclic/periodic master task, 1 periodic fast task, no auxiliary task, 32 event tasks
- Marking
- CE, UL, CSA, RCM, EAC, UKCA, China RoHS, WEEE, IEC
- Number Of Addresses
- 0-248 character mode, 0-248 Modbus
- Number Of Devices Per Segment
- 0-32 character mode), 0-32 Modbus)
- Status Led
- 1 LED (Green) processor running (RUN)1 LED (Red) I/O module fault (I/O), 1 LED (Red) memory card fault (CARD ERR), 1 LED (Red) processor or system fault (ERR)1 LED (Yellow) activity on Modbus (SER COM)
- Carbon Footprint Of The Distribution Phase [A4]
- 0.03138375, 0 kg CO2 eq.
- Carbon Footprint Of The Installation Phase [A5]
- 0.095540625, 0.1 kg CO2 eq.
- Carbon Footprint Of The Use Phase [B2 B3 B4 B6]
- 77 kg CO2 eq., 77.0583272727
- Local Publishable Date
- 2025-07-09
- Stocking Flag
- Y
- Device Type
- PLC System - PLC CPU
- Traceability
- Yes
- Average Life Duration
- 15 year(s)
- Weee Product Category
- 5
- Eoli Availability Display
- Yes
- Reach Full Compliance Status
- Reference contains Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Reference contains Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant By Exemption
- Rohs Eur Full Compliance Status
- Compliant By Exemption
- China Rohs Label
- 5
- Without Single Use Plastic
- Yes
- Tier Id
- 1
- Function Option Id
- ADVANCED
- Market Segmentation Id
- INDUSTRIAL
- Product Kit Identifier
- N
- Control Channels
- programmable loops
- Execution Time Per Instruction
- 0.18 µs Boolean0.26 µs double-length words0.38 µs single-length words1.74 µs floating points
- Number Of Application Specific Channel
- 36
- Number Of Racks
- 4
- Product Or Component Type
- processor module
- Range Of Product
- Modicon M340 automation platform
- Software Version
- v5.9.4
- Sustainable Packaging
- Yes
- Total Lifecycle Carbon Footprint
- 94 kg CO2 eq.
- Database Version
- 2022-01
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
- Functional-unit Description
- The Ethernet control router enables communication from the control network to the device network. This module as the Modicon M580 range has a long life cycle for about more than 10 years with a 100% use rate. Typical electrical power is 4.125W (1800 mA at 3.3 V DC).& 10& 10UL 61010-2-201& 10CSA C22.2 No 61010-2-201
- Functional-unit Unit
- Unit
- Energy Model - Manufacturing [A1-a3]
- Energy model used: Electricity Mix; Production mix; Low voltage; FR
- Energy Model - Use [B6]
- Electricity Mix; Production mix; Low voltage; UE-27 / Electricity Mix; Production mix; Low voltage; APAC / Electricity Mix; Production mix; Low voltage; US / Electricity Mix; Production mix; Low voltage; AUS
- Recyclability Potential In %
- 32
- Discrete I/O Processor Capacity
- 1024 I/O
- Package Weight(Lbs)
- 240.0 g
- Warranty (In Months)
- 18
- Ionizing Radiation Human Health (Kbq Of U235 Equiv.) Manufacturing [A1-a3]
- 47940.9375
- Net Use Of Fresh Water (M3) End Of Life [C1-c4]
- 10484.0625
- Non-hazardous Waste Disposed Of (Kg) Benefits/Loads Beyond System Boundaries [D]
- -20725.3125
- Total Use Of Non-renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) End Of Life [C1-c4]
- 92192.8125
- Total Use Of Primary Energy During The Life Cycle (Mj) Installation [A5]
- 10658.4375
- Total Use Of Primary Energy During The Life Cycle (Mj) End Of Life [C1-c4]
- 9394.6875
- Total Use Of Renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Manufacturing [A1-a3]
- 71492.8125
- Use Of Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Manufacturing [A1-a3]
- 29912.8125
- Use Of Non-renewable Primary Energy Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) End Of Life [C1-c4]
- 92192.8125
- Use Of Renewable Primary Energy Resources Used As Raw Materials (Mj) Total Life Cycle
- 10464.375
- Use Of Renewable Primary Energy Resources Used As Raw Materials (Mj) Benefits/Loads Beyond System Boundaries [D]
- -9483.75
- Water Use (M3 Eq) Manufacturing [A1-a3]
- 53648.4375
- Customs Code
- 8537109160
Persona Type NamesEnd User, OEM - Control Panelbuilder, System Integrator
Control Parameterone LRC on each frame (ASCII) Modbus, one CRC on each frame (RTU) Modbusone LRC on each frame (ASCII) character mode
Monitoringdiagnostic counters Modbus, event counters Modbus
Number Of Devices2 point-to-point character mode, 2 point-to-point Modbus
Requests1 K data bytes per request character mode252 data bytes per RTU request Modbus, 504 data bytes per ASCII request Modbus
Certificate AgencyCE, UL, CSA, RCM, EAC, UKCA, Merchant Navy, cCSAus HazLoc Class I Division 2 Group A, cCSAus HazLoc Class I Division 2 Group B, cCSAus HazLoc Class I Division 2 Group C, cCSAus HazLoc Class I Division 2 Group D
Carbon Footprint Of The End-of-life Phase [C1 To C4]0.4 kg CO2 eq., 0.38625
Carbon Footprint Of The Manufacturing Phase [A1 To A3]16 kg CO2 eq., 16.34625
Local Data StatusPublishable
Return IndicatorY
Stock Policy1
ServiceabilityYes
Field Service DivisionIDIBS
Weee ScopeOut
Scope PerimeterAt least in Europe
End Of Life Doc RefENVEOLI2402021EN
Reach Full Compliance Status IdCONTAINS_SVHC
Rohs Eur In ScopeNo
Rohs Eur Conformity Date2438
China Rohs In ScopeYes
With Recycled CardboardYes
Product Contributes To Saved And Avoided EmissionsNo
Tier1
Function OptionAdvanced
Market SegmentationIndustrial
ConceptModbus
Current Consumption72 mA 24 V DC
Memory Descriptioninternal RAM 4096 kBinternal RAM 256 kB datainternal RAM 3584 kB program constants and symbolssupplied memory card (BMXRMS008MP) backup of programs, constants, symbols and data
Number Of Instructions Per Ms4.2 Kinst/ms 65 % Boolean + 35 % fixed arithmetic5.4 Kinst/ms 100 % Boolean
Product AvailabilityStock - Normally stocked in distribution facility
Protective TreatmentTC
ReturnabilityYes
Supplyinternal power supply via rack
System Overhead0.2 ms fast task1.05 ms master task
Pep CodeENVPEP2402021EN
Pep Verification Date2023-11-01
Psr VersionPSR-0005-ed2-2016 03 29
Data Sourceextrapolated product
Functional-unit Quantity1
Reference Lifetime In Y10
Energy Model - Installation [A5]Electricity Mix; Production mix; Low voltage; UE-27 / Electricity Mix; Production mix; Low voltage; APAC / Electricity Mix; Production mix; Low voltage; US / Electricity Mix; Production mix; Low voltage; AUS
Energy Model - End Of Life [C1-c4]Electricity Mix; Production mix; Low voltage; UE-27 / Electricity Mix; Production mix; Low voltage; APAC / Electricity Mix; Production mix; Low voltage; US / Electricity Mix; Production mix; Low voltage; AUS
Analogue I/O Processor Capacity256 I/O
Nbr. Of Units In Pkg.1
Take-backNo
Depletion Of Abiotic Resources - Fossil Fuels (Mj) Installation [A5]0.9945
Materials For Recycling (Kg) Installation [A5]0.0525
Non-hazardous Waste Disposed Of (Kg) Manufacturing [A1-a3]63154.6875
Total Use Of Non-renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Installation [A5]9945
Total Use Of Non-renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Benefits/Loads Beyond System Boundaries [D]-89514.375
Total Use Of Primary Energy During The Life Cycle (Mj) Operational Energy Use [B6]1801.2672
Total Use Of Primary Energy During The Life Cycle (Mj) Benefits/Loads Beyond System Boundaries [D]-9578.4375
Use Of Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Total Life Cycle29912.8125
Use Of Non-renewable Primary Energy Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Installation [A5]9945
Use Of Non-renewable Primary Energy Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Benefits/Loads Beyond System Boundaries [D]-89514.375
Use Of Renewable Primary Energy Resources Used As Raw Materials (Mj) Manufacturing [A1-a3]10464.375
Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials (Mj) Manufacturing [A1-a3]61029.375
Water Use (M3 Eq) End Of Life [C1-c4]40054.6875
Environment Attributes Main
- Directives
- 2014/35/EU - low voltage directive, 2014/30/EU - electromagnetic compatibility, 2012/19/EU - WEEE directive
- Recycled Metal Content At Cr Level
- 0 %
- Mercury Free
- Yes
- Ambient Air Temperature For Operation
- 0-60 °C
- Environmental Disclosure
- ENVPEP2402021EN
- Ip Degree Of Protection
- IP20
- Packaging Without Single Use Plastic
- Yes
- Relative Humidity
- 5-95 % without condensation
- Pep Verification Date
- 2023-11-01
- Psr Version
- PSR-0005-ed2-2016 03 29
Take BackNo
China Rohs RegulationX
Carbon Footprint93.9177516477
Circularity ProfileENVEOLI2402021EN
Eu Rohs DirectiveCompliant By Exemption
Packaging Made With Recycled CardboardYes
Reach RegulationReference contains Substances of Very High Concern above the threshold
Pep CodeENVPEP2402021EN
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent internal review
General Attributes
- Product Or Component Type
- processor module
Range Of ProductModicon M340 automation platform
ETIM
- ETIM 8
- EC000236
ETIM 9EC000236
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
