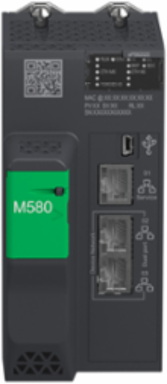

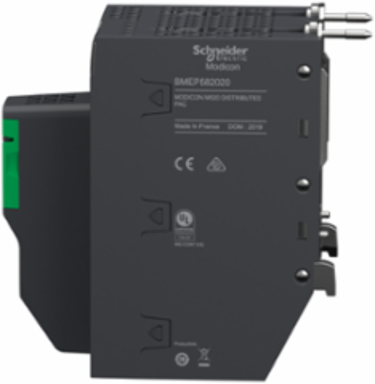

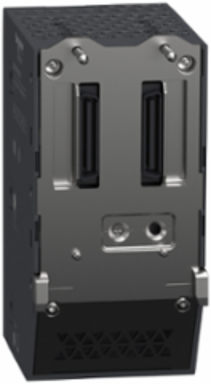

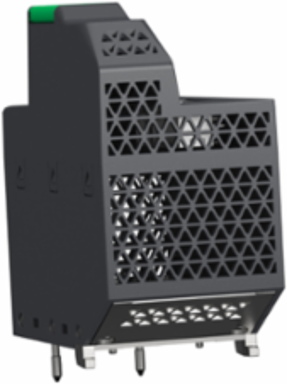

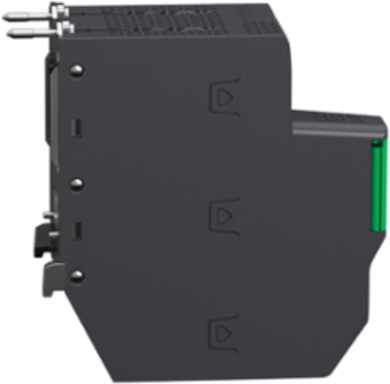

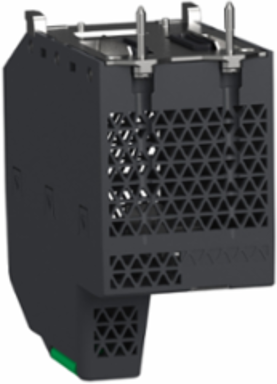

Schneider Electric BMEP582020 Modicon M580 Processor Module, 8MB RAM, 2048 Discrete I/O, 512 Analog I/O
- MPN: BMEP582020
- PPN: SCH-BMEP582020
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
This product is part of the Modicon M580 range, an offer of Programmable Automation Controllers (PAC) and safety Programmable Logic Controllers (PLC) with built-in Ethernet. This processor module offers a maximum of 4 rack configuration and 72 application specific channels. It is a processor module with a current consumption of 270mA at 24V DC. It supports 2048 discrete, 512 analogue local I/O channels and 128 distributed equipment. It is furnished with Ethernet TCP/IP for service port, 2 Ethernet TCP/IP for device network, Ethernet for HSBY port and USB type mini B for integrated connections. It offers 600000 hours of MTBF. It has an integrated RAM of 8MB for program, 768kb for data, 10kb for system and expandable flash of 4GB for data storage. It is an IP20 rated product. It weighs 0.849kg. It is suitable for medium to large process applications. This product is certified by CE, Merchant Navy, UL, RCM, CSA, EAC. It meets EN 61131-2, EN 61000-6-4, EN 61000-6-2 and EN 61010-2-201 standards. The benefits of Modicon M580 are reduce time to market, improve reliability and sustainability, improve productivity with high performance and increase operating profitability due to improved access to data.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- France, United States
ComplianceTAA Compliant | BAA Compliant via COTS
Communications & Management Attributes
- Communication Module Processor Capacity
- 2 Ethernet communication module, 4 AS-Interface module
Communication ServiceDIO scanner
Complementary Attributes
- Integrated Connection Type
- 1 Ethernet TCP/IP service port, 2 Ethernet TCP/IP device network, USB type mini B
Important Information Attributes
- Persona Type Ids
- EU, OM8, SI
- Application Structure
- 1 cyclic/periodic master task, 64 event tasks, 2 auxiliary tasks, 1 periodic fast task
- Memory Description
- expandable flash, 4 GB data storage, integrated RAM, 10 kB system memory, integrated RAM, 8 MB program, integrated RAM, 768 kB data
- Status Led
- 1 LED (Green) processor running (RUN), 1 LED (Red) processor or system fault (ERR), 1 LED (Red) I/O module fault (I/O), 1 LED (Green) download in progress (DL), 1 LED (Red) memory card or CPU flash fault (BACKUP), 1 LED (green/red) ETH MS (Ethernet port configuration status), 1 LED (green/red) Eth NS (Ethernet network status)
- Application Specific I/O
- HART, SSI encoder, motion control, serial link, accurate time stamping, counter
- Carbon Footprint Of The End-of-life Phase [C1 To C4]
- 0.4 kg CO2 eq., 0.3674728873
- Carbon Footprint Of The Manufacturing Phase [A1 To A3]
- 64 kg CO2 eq., 63.748943662
- Local Data Status
- Publishable
- Return Indicator
- Y
- Future Msrp
- 7398.00
- Stock Policy
- 2
- Serviceability
- Yes
- Field Service Division
- IDIBS
- Weee Scope
- Out
- Scope Perimeter
- At least in Europe
- End Of Life Doc Ref
- ENVEOLI1312016EN
- Reach Full Compliance Status Id
- CONTAINS_SVHC
- Rohs Eur In Scope
- No
- Rohs Eur Conformity Date
- 1949
- China Rohs In Scope
- Yes
- With Recycled Cardboard
- Yes
- Product Contributes To Saved And Avoided Emissions
- No
- Tier
- 1
- Function Option
- Advanced
- Market Segmentation
- Industrial
- Checks
- process control
- Current Consumption
- 270 mA 24 V DC
- Marking
- CE
- Number Of Application Specific Channel
- 72
- Number Of Racks
- 4
- Product Or Component Type
- processor module
- Returnability
- Yes
- Software Version
- EIME v5.8.1
- Sustainable Packaging
- No
- Vibration Resistance
- 3 gn
- Database Version
- 2020-12
- Pcr Version
- PCR-ed3-EN-2015 04 02
- Data Source
- extrapolated product
- Functional-unit Quantity
- 1
- Reference Lifetime, In Y
- 10
- Energy Model - Manufacturing [A1-a3]
- Energy model used: France
- Energy Model - Use [B6]
- Electricity grid mix; AC; consumption mix, at consumer; 230V; FR / Electricity mix; AC; consumption mix, at consumer; 120V; US / Electricity grid mix; AC; consumption mix, at consumer; 230V; CH
- Analogue I/O Processor Capacity
- 512 I/O
- Nbr. Of Units In Pkg.
- 1
- Take-back
- No
Persona Type NamesEnd User, OEM - Control Panelbuilder, System Integrator
CybersecurityAchilles certified, DoS prevention, IPSec, SNMP logging, Syslog protocol support, transport layer security, audit trail, embedded firewall, firmware signature, password protection, port hardening, secure communication (HTTPS), security log
Number Of Instructions Per Ms30 Kinst/ms 65 % Boolean + 35 % fixed arithmetic, 40 Kinst/ms 100 % Boolean
Certificate AgencyCE, UL, CSA, RCM, EAC, Merchant Navy
Carbon Footprint Of The Distribution Phase [A4]0.1122524648, 0.1 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]0.0031800951, 0 kg CO2 eq.
Carbon Footprint Of The Use Phase [B2, B3, B4, B6]166 kg CO2 eq., 165.5145762712
Local Publishable Date2026-04-04
Future Imap5627.84
Stocking FlagN
Device TypePLC System - PLC CPU
TraceabilityYes
Average Life Duration20 year(s)
Weee Product Category5
Eoli Availability DisplayYes
Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant By Exemption
Rohs Eur Full Compliance StatusCompliant By Exemption
China Rohs Label5
Without Single Use PlasticYes
Tier Id1
Function Option IdADVANCED
Market Segmentation IdINDUSTRIAL
Product Kit IdentifierN
Control Channelsprogrammable loops
Environmental Characteristichazardous location class I division 2
Mtbf Reliability775000 H
Number Of Distributed Equipment128
Product AvailabilityStock - Normally stocked in distribution facility
Range Of ProductModicon M580
Shock Resistance30 gn
Supplyinternal power supply via rack
Total Lifecycle Carbon Footprint230 kg CO2 eq.
Pep CodeENVPEP1312016EN
Pep Verification Date2022-12-01
Type Of Verification For The PepIndependent external review
Functional-unit DescriptionThe Modicon M580 ePAC module provides cutting-edge features and high-end performances for small to large process automation for 10 years with a 100% use rate. Typical electrical power is 7,08 W (295 mA at 24 V DC)
Functional-unit Unitunit
Energy Consumption On Product Lifetime, In Kwh510.8832
Energy Model - Installation [A5]Electricity grid mix; AC; consumption mix, at consumer; 230V; FR / Electricity mix; AC; consumption mix, at consumer; 120V; US / Electricity grid mix; AC; consumption mix, at consumer; 230V; CH
Energy Model - End Of Life [C1-c4]Electricity grid mix; AC; consumption mix, at consumer; 230V; FR / Electricity mix; AC; consumption mix, at consumer; 120V; US / Electricity grid mix; AC; consumption mix, at consumer; 230V; CH
Discrete I/O Processor Capacity2048 I/O
Package Weight(Lbs)876.000 g
Warranty (In Months)18
Environment Attributes Main
- Ambient Air Temperature For Storage
- -40-85 °C, -40-85 °C
- Operating Altitude
- 0...6561.68 ft (0...2000 m), 2000...5000 m with derating factor
- Recycled Metal Content At Cr Level
- 0 %
- Mercury Free
- Yes
- Ambient Air Temperature For Operation
- 0-60 °C
- Environmental Disclosure
- ENVPEP1312016EN
- Ip Degree Of Protection
- IP20
- Packaging Without Single Use Plastic
- Yes
- Relative Humidity
- 5-95 % 55-55 °C without condensation
- Pep Verification Date
- 2022-12-01
- Type Of Verification For The Pep
- Independent external review
Directives2014/35/EU - low voltage directive, 2014/30/EU - electromagnetic compatibility
Take BackNo
China Rohs RegulationX
Carbon Footprint229.7464253803
Circularity ProfileENVEOLI1312016EN
Eu Rohs DirectiveCompliant By Exemption
Packaging Made With Recycled CardboardYes
Reach RegulationReference contains Substances of Very High Concern above the threshold
Pep CodeENVPEP1312016EN
Pcr VersionPCR-ed3-EN-2015 04 02
General Attributes
- Product Or Component Type
- processor module
Range Of ProductModicon M580
ETIM
- ETIM 8
- EC000236
ETIM 9EC000236
