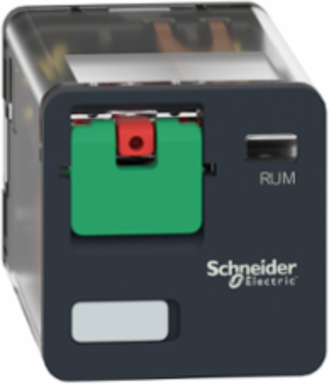

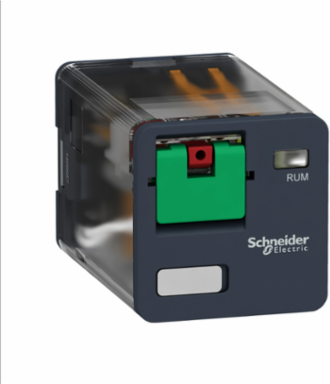

Schneider Electric RUMC21B7 Universal Plug-in Relay, 10A, 2 C/O, 24V AC, Lockable Test Button, IP40
Schneider Electric RUMC21B7 Universal Plug-in Relay, 10A, 2 C/O, 24V AC, Lockable Test Button, IP40
- MPN: RUMC21B7
- PPN: SCH-RUMC21B7
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$25.60/ EA
Description

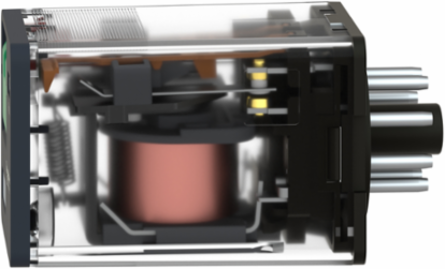

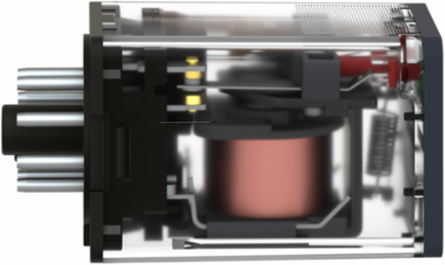

This Harmony RUM universal plug-in relay uses cylindrical pins, has a control coil voltage of 24V AC and has 2 changeover contacts double pole double throw with a rating of 10A." "It provides a complete system solution for the most demanding applications." "It also offers one-step lockable test button." "It helps to reduce the size of enclosures and increase machine reliability, you can mount nearly everywhere." "The product is IP40 and has a transparent cover allowing operator to visually inspect the status of contacts." "Workability for hard-wired logic automated systems to complement the functions of industrial programmable logic controllers (PLCs)." 0 0 0 0 0 0 0 0 0 0
Specifications
Specifications
- Utilisation Coefficient
- 20 %
- Range Of Product
- Harmony Electromechanical Relays
- Status Led
- without
- Series Name
- Universal
- Device Short Name
- RUM
[Uc] Control Circuit Voltage24 V AC
Product Or Component Typeplug-in relay
Control Typelockable test button
Contacts Type And Composition2 C/O
[Ithe] Conventional Enclosed Thermal Current10 A -40-55 °C
Complementary
- Maximum Switching Capacity
- 2500 VA/280 W
- Operating Rate
- <= 18000 cycles/hour no-load || <= 1200 cycles/hour under load
- Electrical Durability
- 100000 cycles resistive

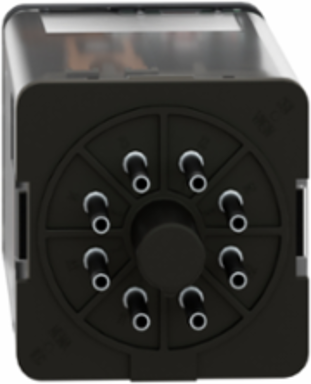

- Shape Of Pin
- cylindrical
- Net Weight
- 0.086 kg
- Maximum Switching Voltage
- 250 V IEC
- Device Presentation
- complete product
- Rated Operational Voltage Limits
- 19.2...26.4 V AC
- Mechanical Durability
- 5000000 cycles
- Operating Time
- 20 ms at nominal voltage
- Drop-Out Voltage Threshold
- >= 0.15 Uc AC
- Average Coil Consumption In Va
- 3-3 60 Hz
Safety Reliability DataB10d = 100000
Protection CategoryRT I
Contacts MaterialAgNi
Reset Time20 ms at nominal voltage
[Uimp] Rated Impulse Withstand Voltage4 kV 1.2/50 µs)
Average Resistance72 Ohm 20 °C +/- 15 %
[Ie] Rated Operational Current10 A 277 V AC UL || 10 A 30 V DC UL || 10 A 30 V DC CSA || 5 A 250 V AC NC)IEC || 5 A 28 V DC NC)IEC || 10 A 250 V AC NO)IEC || 10 A 28 V DC NO)IEC || 10 A 277 V AC CSA
[Ui] Rated Insulation Voltage250 V IEC || 300 V CSA || 300 V UL
Operating Positionany position
Load Current10 A 250 V AC || 10 A 28 V DC
Minimum Switching Capacity170 mW 10 mA, 17 V
Offer Sustainability
- Rohs Exemption Information
- Yes
- Sustainable Offer Status
- Green Premium product
- Reach Free Of Svhc
- Yes
- Circularity Profile
- N/A
Environmental DisclosureENVPEP1406038EN
Reach RegulationFree of Substances of Very High Concern above the threshold
China Rohs RegulationX
Eu Rohs DirectivePro-active compliance (Product out of EU RoHS legal scope)
Environment
- Product Certifications
- CSA || EAC || UL
- Pollution Degree
- 3
- Dielectric Strength
- 1500 V AC between contacts micro disconnection || 2500 V AC between coil and contact reinforced || 2000 V AC between poles basic
- Shock Resistance
- 10 gn 11 ms) in operation IEC 60068-2-27 || 10 gn 11 ms) not operating IEC 60068-2-27
- Ambient Air Temperature For Storage
- -40-85 °C
StandardsCSA C22.2 No 14 || UL 508 || IEC 61810-1
Ambient Air Temperature For Operation-40-55 °C
Vibration Resistance3 gn +/- 1 mm 10-150 Hz)5 cycles in operation || 4 gn +/- 1 mm 10-150 Hz)5 cycles not operating
Ip Degree Of ProtectionIP40
