Weidmuller 1510690000 UR20-4AO-UI-16-HD
- MPN: 1510690000
- PPN: WDM-1510690000
CAD
$418.01
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

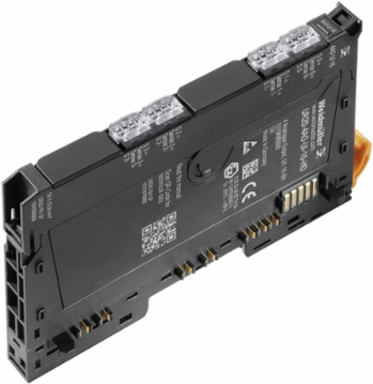

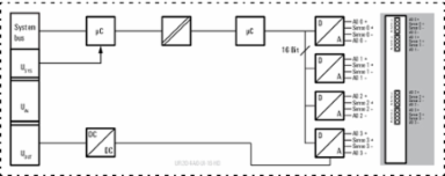

Remote I/O module, IP20, Analog signals, Output, Current/Voltage, 4-channel
Documentation & Downloads
Specifications
General Data
| Air humidity (operation) | 10% to 95%, non-condensing as per DIN EN 61131-2 |
|---|---|
| Air humidity (transport) | 10% to 95%, non-condensing as per DIN EN 61131-2 |
| Air pressure (storage) | 1013 hPa (height 0 m) to 700 hPa (height 3000 m) as per DIN EN 61131-2 |
| Pollution severity | 2 |
| Surge voltage category | II |
| UL 94 flammability rating | V-0 |
| Air humidity (storage) | 10% to 95%, non-condensing as per DIN EN 61131-2 |
|---|---|
| Air pressure (operation) | ≥ 795 hPa (height ≤ 2000 m) as per DIN EN 61131-2 |
| Air pressure (transport) | 1013 hPa (height 0 m) to 700 hPa (height 3000 m) as per DIN EN 61131-2 |
| Shock | 15 g over 11 ms, half sinus wave, acc. to IEC 60068-2-27 |
| Test voltage | 500 V |
| Vibration resistance | 5 Hz ≤ f ≤ 8.4 Hz: 3.5-mm amplitude as per IEC 60068-2-6, 8.4 Hz ≤ f ≤ 150 Hz: 1 g acceleration as per IEC 60068-2-6 |
Analogue Outputs
| Accuracy | ±0,1 % FSR max., 0,05 % FSR typ. |
|---|---|
| Cross-talk between the channels | 0 % FSR |
| Max. error between T min. and T max. | 220 ppm FSR |
| Monotonicity | Yes |
| Output variable | Voltage (0...5 V, 0...10 V, 1...5 V, 2...10 V, ±10 V, ±5 V), Current (0...20 mA or 4...20 mA) |
| Resolution | 16 Bit |
| Short-circuit-proof | Yes |
| Temperature coefficient | 20 ppm voltage / 31 ppm current measurement / °K |
| load impedance current | < 600 Ω |

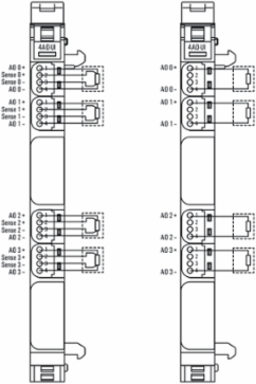

| Actuator connection | 2-wire (current and voltage), 3- and 4-wire (voltage), 2-wire (automatic detection) |
|---|---|
| Individual channel diagnosis | No |
| Module diagnosis | Yes |
| Number of analogue outputs | 4 |
| Repeat accuracy | < 1 mV eff. |
| Response time | 1 ms / 4 channels |
| Standing wave ratio | 0 % |
| Type | 1. U (0…5 V, 0…10 V, 1…5 V, 2…10 V, ±10 V), 2. I (0–20 mA or 4–20 mA) |
| load impedance voltage | > 1 kΩ (at >50 °C ambient temperature, max. total sensor current = 25 mA) |
Approvals
| Approvals | CE, CULUS, CULUSEX, DEMKOATEX, IECEXULD, KOREANCERT |
|---|---|
| UL File Number Search | E141197 |
| ROHS | Conform |
|---|
Dimensions And Weights
| Width | 11.5 mm |
|---|---|
| Height | 120 mm |
| Depth | 76 mm |
| Mounting dimension - height | 128 mm |
| Width (inches) | 0.453 inch |
|---|---|
| Height (inches) | 4.724 inch |
| Depth (inches) | 2.992 inch |
| Net weight | 72 g |
Connection Data
| Wire connection cross section, finely stranded, max. | 0.35 mm² |
|---|---|
| Wire cross-section, finely stranded, max. (AWG) | AWG 22 |
| Wire cross-section, solid, max. | 0.35 mm² |
| Wire cross-section, solid, min. | 0.14 mm² |
| Wire connection cross-section, finely stranded, min. | 0.14 mm² |
|---|---|
| Wire cross-section, finely stranded, min. (AWG) | AWG 26 |
| Wire cross-section, solid, max. (AWG) | AWG 22 |
| Wire cross-section, solid, min. (AWG) | AWG 26 |
Classifications
| ETIM 6.0 | EC001597 |
|---|---|
| eClass 9.0 | 27-24-26-02 |
| eClass 10.0 | 27-24-26-02 |
| ETIM 7.0 | EC001597 |
|---|---|
| eClass 9.1 | 27-24-26-02 |
Product Information

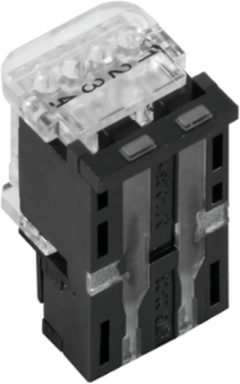

| Product information | Note: Please order connector (1469340000) separately |
|---|
Environmental Product Compliance
| REACH SVHC | Lead 7439-92-1 |
|---|
System Data
| Field bus protocol | CANopen, DeviceNet, EtherCAT, EtherNet/IP, Modbus/TCP, PROFINET IRT, PROFIBUS DP-V1, POWERLINK |
|---|---|
| Interface | u-remote system bus |
| Transmission speed of system bus, max. | 48 Mbit |
| Galvanic isolation | 500 V DC between the current paths |
|---|---|
| Module type | Analogue output module |
Temperatures
| Storage temperature, max. | 85 °C |
|---|---|
| Operating temperature | -20 °C ... +60 °C |
| Storage temperature, min. | -40 °C |
|---|---|
| Storage temperature | -40 °C ... +85 °C |
Power Supply
| Current consumption from I | 85 mA |
|---|
| Voltage supply | 24 V DC +20 %/ -15 %, via the system bus |
|---|
