Weidmuller 1315680000 UR20-4AO-UI-16
Weidmuller 1315680000 UR20-4AO-UI-16
- MPN: 1315680000
- PPN: WDM-1315680000
Spec sheet
In Stock
Company Stock:
00
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Looking to buy a large quantity?
To view product inventory
CAD$468.45/ EA
Description

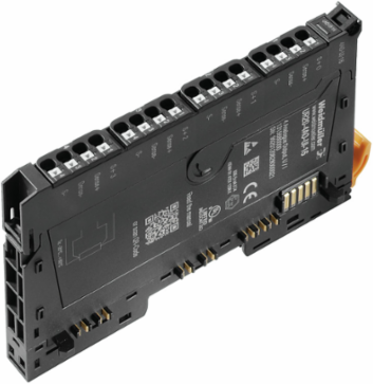

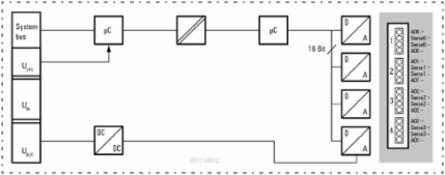

Remote I/O module, IP20, Analog signals, Output, 4-channel, Current/Voltage
Specifications
General Data
- Air humidity (operation)
- 10% to 95%, non-condensing as per DIN EN 61131-2
- Air humidity (transport)
- 10% to 95%, non-condensing as per DIN EN 61131-2
- Air pressure (storage)
- 1013 hPa (height 0 m) to 700 hPa (height 3000 m) as per DIN EN 61131-2
- Pollution severity
- 2
- Surge voltage category
- II
- UL 94 flammability rating
- V-0
Air humidity (storage)10% to 95%, non-condensing as per DIN EN 61131-2
Air pressure (operation)≥ 795 hPa (height ≤ 2000 m) as per DIN EN 61131-2
Air pressure (transport)1013 hPa (height 0 m) to 700 hPa (height 3000 m) as per DIN EN 61131-2
Shock15 g over 11 ms, half sinus wave, acc. to IEC 60068-2-27
Test voltage500 V
Vibration resistance5 Hz ≤ f ≤ 8.4 Hz: 3.5-mm amplitude as per IEC 60068-2-6, 8.4 Hz ≤ f ≤ 150 Hz: 1 g acceleration as per IEC 60068-2-6
Analogue Outputs
- Accuracy
- ±0,1 % FSR max., 0,05 % FSR typ.
- Cross-talk between the channels
- 0.001 % FSR
- Max. error between T min. and T max.
- 220 ppm FSR
- Monotonicity
- Yes
- Output variable
- Voltage (0...5 V, 0...10 V, 1...5 V, 2...10 V, ±10 V, ±5 V), Current (0...20 mA or 4...20 mA)
- Resolution
- 16 Bit
- Short-circuit-proof
- Yes
- Type
- 1. U (0…5 V, 0…10 V, 1…5 V, 2…10 V, ±10 V), 2. I (0–20 mA or 4–20 mA)
- load impedance voltage
- > 1 kΩ (at >50 °C ambient temperature, max. total sensor current = 25 mA)

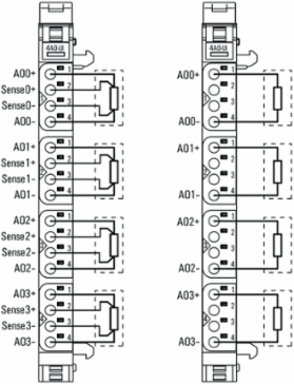

Actuator connection2-wire (automatic detection), 4-wire
Individual channel diagnosisNo
Module diagnosisYes
Number of analogue outputs4
Repeat accuracy< 1 mV eff.
Response time1 ms / 4 channels
Temperature coefficient20 ppm voltage / 31 ppm current measurement / °K
load impedance current< 600 Ω
Approvals
- Approvals
- CE, CULUS, CULUSEX, DEMKOATEX, EAC, IECEXULD, KOREANCERT, WATEXIECEX
- UL File Number Search
- E141197
ROHSConform
Dimensions And Weights
- Width
- 11.5 mm
- Height
- 120 mm
- Depth
- 76 mm
- Mounting dimension - height
- 128 mm
Width (inches)0.453 inch
Height (inches)4.724 inch
Depth (inches)2.992 inch
Net weight87 g
Connection Data
- Type of connection
- PUSH IN
- Wire connection cross-section, finely stranded, min.
- 0.14 mm²
- Wire cross-section, finely stranded, min. (AWG)
- AWG 26
- Wire cross-section, solid, max. (AWG)
- AWG 16
- Wire cross-section, solid, min. (AWG)
- AWG 26
Wire connection cross section, finely stranded, max.1.5 mm²
Wire cross-section, finely stranded, max. (AWG)AWG 16
Wire cross-section, solid, max.1.5 mm²
Wire cross-section, solid, min.0.14 mm²
Classifications
- ETIM 6.0
- EC001597
- eClass 9.0
- 27-24-26-02
- eClass 10.0
- 27-24-26-02
ETIM 7.0EC001597
eClass 9.127-24-26-02
Environmental Product Compliance
- REACH SVHC
- Lead 7439-92-1
System Data
- Diagnostic data
- 1 Bit
- Galvanic isolation
- DC 500 V between current paths
- Module type
- Analogue output module
- Process data
- 8 Byte
Field bus protocolCANopen, DeviceNet, EtherCAT, EtherNet/IP, Modbus/TCP, PROFINET IRT, PROFIBUS DP-V1, POWERLINK
Interfaceu-remote system bus
Parameter data12 Byte
Transmission speed of system bus, max.48 Mbit
Temperatures
- Operating temperature, max.
- 60 °C
- Storage temperature, max.
- 85 °C
- Operating temperature
- -20 °C ... +60 °C
Operating temperature, min.-20 °C
Storage temperature, min.-40 °C
Storage temperature-40 °C ... +85 °C
Power Supply
- Current consumption from I
- 85 mA
Voltage supply24 V DC +20 %/ -15 %, via the system bus
