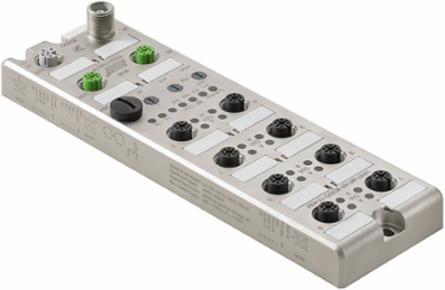

Weidmuller 2426290000 UR67-MP-HP-8DIDO-12-60M
- MPN: 2426290000
- PPN: WDM-2426290000
CAD
$969.00
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Automation Products - u-remote IP67, Sensor-actuator active distributor, PROFINET V2.3, EtherNet/IP, EtherCAT, Multiprotocol
Documentation & Downloads
Specifications
General Data
| Housing main material | Zinc diecast |
|---|---|
| UL 94 flammability rating | UL 94 |
| Protection degree | IP67 |
|---|
Approvals
| Approvals | CE, CULUS |
|---|---|
| UL File Number Search | E141197 |
| ROHS | Conform |
|---|
Digital Inputs
| Input current, high | Type 1 in acc. with IEC 61131-2 |
|---|
| Input current, low | Type 1 in acc. with IEC 61131-2 |
|---|
Dimensions And Weights
| Length | 200 mm |
|---|---|
| Width | 59.6 mm |
| Height | 17.6 mm |
| Net weight | 500 g |
| Length (inches) | 7.874 inch |
|---|---|
| Width (inches) | 2.346 inch |
| Height (inches) | 0.693 inch |
Digital Outputs
| Max. total current outputs | 9 A (12 A see manual) |
|---|---|
| Output voltage, low | min. (UL -1) |
| max. current-carrying capacity per output signal | 2 A |
| Output voltage, high | max. 2 V |
|---|---|
| Short-circuit proof | Yes |
Connections
| Fieldbus (BUS-IN) | 1x M12 female 4-pole, D-coded |
|---|---|
| I/O connections | 8 x M12 socket 5-pole, A-coded |
| Supply voltage (AUX-OUT) | 1x M12 socket 5-pole, L-coded |
| Fieldbus (BUS-OUT) | 1x M12 female 4-pole, D-coded |
|---|---|
| Supply voltage (AUX-IN) | 1x M12 plug 5-pole, L-coded |
Supply Voltage
| Limits | 18 V DC ... 30 V DC |
|---|---|
| Power consumption of module electronics | 100 mA typical |
| Operating voltage | 24 V |
|---|---|
| Reverse polarity protection | Yes |
Classifications
| ETIM 6.0 | EC001597 |
|---|---|
| eClass 9.0 | 27-24-26-02 |
| eClass 10.0 | 27-24-26-02 |
| ETIM 7.0 | EC001597 |
|---|---|
| eClass 9.1 | 27-24-26-02 |
Environmental Product Compliance
| REACH SVHC | Lead 7439-92-1 |
|---|
System Data
| Field bus protocol | PROFINET, EtherCAT, EtherNet/IP |
|---|
Temperatures
| Operating temperature, max. | 70 °C |
|---|
| Operating temperature, min. | -20 °C |
|---|
