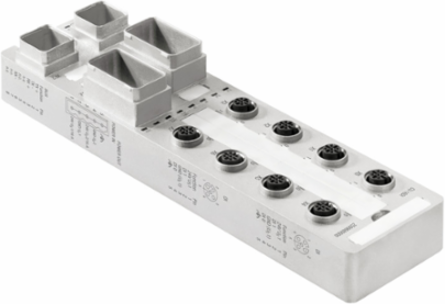

Weidmuller 2599680000 UR67-PN-V14-CU-16DI-12
- MPN: 2599680000
- PPN: WDM-2599680000
CAD
$1687.67
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Automation Products - u-remote IP67, Sensor-actuator active distributor, PROFINET V2.3
Documentation & Downloads
Specifications
General Data
| Housing main material | Zinc diecast |
|---|---|
| UL 94 flammability rating | UL 94 |
| Protection degree | IP67 |
|---|
Approvals
| Approvals | CULUS |
|---|---|
| UL File Number Search | E141197 |
| ROHS | Conform |
|---|
Digital Inputs
| Input type | P-switching, Type 2 in acc. with IEC 61131-2 |
|---|---|
| Input voltage, low | < 5 V |
| Protective circuit | Constant current with thermal switch-off and automatic restart |
| Switch-off energy (inductive) | < 150 mJ / channel |
| Input voltage, high | > 11 V |
|---|---|
| Number | 16 |
| Sensor connection | 2-wire, 3-wire + FE, M12, 5-pole |
Dimensions And Weights
| Length | 225 mm |
|---|---|
| Width | 60 mm |
| Height | 43 mm |
| Weight | 965 g |
| Length (inches) | 8.858 inch |
|---|---|
| Width (inches) | 2.362 inch |
| Height (inches) | 1.693 inch |
| Net weight | 1,900 g |
Connections
| Fieldbus (BUS-IN) | V14 PushPull RJ45 |
|---|---|
| I/O connections | 8 x M12 socket 5-pole, A-coded |
| Supply voltage (AUX-OUT) | PushPull-Power |
| Fieldbus (BUS-OUT) | V14 PushPull RJ45 |
|---|---|
| Supply voltage (AUX-IN) | PushPull-Power |
Supply Voltage
| Limits | 18 V DC ... 30 V DC |
|---|---|
| Operating voltage | 24 V |
| Max. total current module | 150 mA |
|---|---|
| Reverse polarity protection | Yes |
Classifications
| ETIM 6.0 | EC001597 |
|---|---|
| eClass 9.0 | 27-24-26-02 |
| eClass 10.0 | 27-24-26-02 |
| ETIM 7.0 | EC001597 |
|---|---|
| eClass 9.1 | 27-24-26-02 |
Environmental Product Compliance
| REACH SVHC | Lead 7439-92-1 |
|---|
System Data
| Fast Startup | Yes |
|---|---|
| Parameter data | 16 Byte |
| Field bus protocol | PROFINET |
|---|
Temperatures
| Operating temperature, max. | 55 °C |
|---|
| Operating temperature, min. | -20 °C |
|---|
