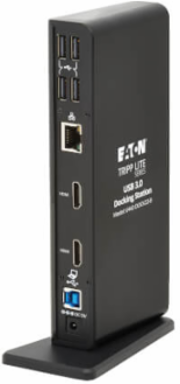

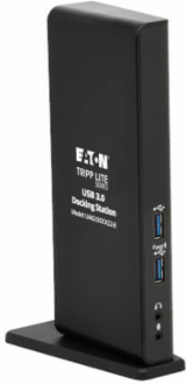

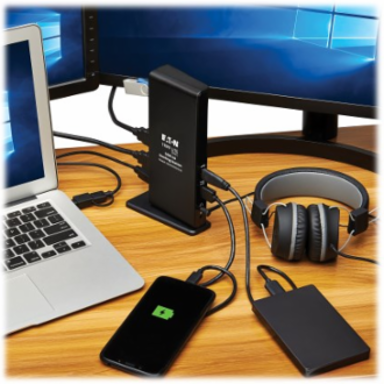

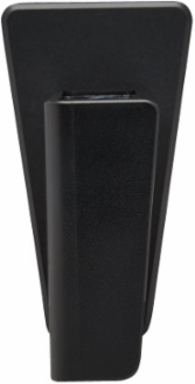

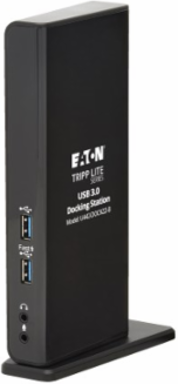

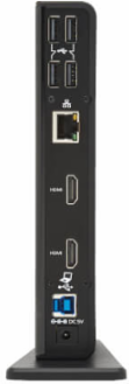

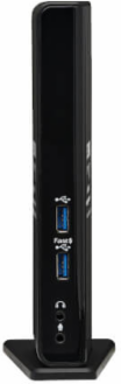

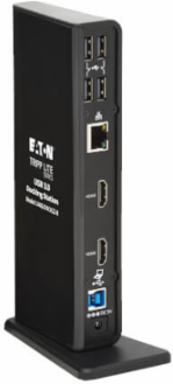

Tripp Lite U442DOCK22B USB-A/USB-C Dual Display Docking Station, 1080p 60 Hz HDMI, USB 3.x (5Gbps), USB 2.0 Hub, GbE
- MPN: U442DOCK22B
- UPC: 037332267160
- PPN: TRP-U442-DOCK22-B
CAD
$223.30
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
USB-A / USB-C Dual Display Docking Station - 1080p 60 Hz HDMI, USB 3.x (5Gbps) and USB 2.0 Hub Ports, GbE
Features
- USB-B to USB-A cable
- USB-A to USB-C adapter
- External power supply (Input: 100-240V, 50/60 Hz, 0.8A; Output: 5V 4A)
- Owner's manual
Documentation & Downloads
Specifications
Dimensions
| Host Connector | USB A (MALE); USB C (MALE) |
|---|---|
| Audio Ports | (2) 3.5MM (FEMALE) |
| Network Ports | RJ45 (FEMALE) |
| AC Power Adapter Cord Length | 5 |
| DC Barrel Plug | OD: 5.5 x 2.5 x 10mm, Positive Pin, Negative Sleeve |
| Side A - Connector 1 | USB B (FEMALE) |
| Side B - Connector 2 | RJ45 (FEMALE) |
| Side B - Connector 4 | (2) 3.5MM (FEMALE) |
| Cable Outer Diameter | 4.2 mm |
| Unit Weight | 0.45 |
| Video Ports | (2) HDMI (FEMALE) |
|---|---|
| Data Ports | (6) USB A (FEMALE) |
| AC Power Adapter Plug | NEMA 1-15P North America |
| Input Cord Length | 3.28 |
| Number of Ports | 12 |
| Side B - Connector 1 | (2) HDMI (FEMALE) |
| Side B - Connector 3 | (6) USB A (FEMALE) |
| LED Indicators | Power (Blue), USB Connection (Green) |
| Unit Dimensions | 7.390 x 3.020 x 1.220 |
Material
| Connector Plating | Nickel |
|---|---|
| Material of Construction | Plastic |
| Color | Black |
|---|
Compliance
| TAA Compliant Option | N |
|---|
Reference
| Product Type | Docking Station |
|---|---|
| Product Warranty Period | 1-year limited warranty |
| Recommended Category Cable | Cat6 |
|---|
Performance
| Technology | Cat5/5e; Cat6; HDMI; USB 3.x; Stereo Audio |
|---|---|
| Max Supported Video Resolution | Single: 2560 x 1400 @ 60Hz Dual: 1920 x 1080 @ 60Hz |
| Extended Mode Details | 2x HDMI (1080p). This is in addition to a built in monitor in the laptop or source device |
| Video Ports Details | HDMI 1.3 |
| Data Ports Details | (4) USB-A - USB 2.0; (2) USB-A - USB 3.2 Gen 1 (5 Gbps) |
| AC Power Adapter Output Specs | 5V / 4A |
| Power Source Type | AC Adapter with detachable power cord |
| Charging Ports | USB-A: 5V 1.5A (7.5W) |
| Operating Temperature Range | 32° to 104°F (0° to 40°C) |
| Operating Humidity Range | 20% to 80% RH, Non-Condensing |
| Network Compatibility | 1 Gbps (Gigabit) |
| USB Specification | USB 2.0 (up to 480 Mbps); USB 3.0 (up to 5 Gbps); USB 3.1 Gen 1 (up to 5 Gbps); USB 3.2 Gen 1 (up to 5 Gbps) |
| Resolutions Supported | HDMI Single: 2560 x 1440 @ 60Hz; HDMI Dual: 1080p @ 60Hz |
|---|---|
| Extended Mode | Yes |
| Mirror Mode Details | 2x HDMI (1920 x 1200 60Hz incl. 1080p). This is in addition to a built in monitor in the laptop or source device |
| Audio Ports Details | Two 3.5mm TRS audio jacks (1 x microphone jack, 1 x stereo headphone jack) |
| AC Power Adapter Input Specs | 100-240V / 50/60Hz / 0.8A |
| Voltage Compatibility | 100; 110; 120; 125; 127; 200; 208; 220; 230; 240 |
| Total Charging Watts | 20 |
| Charging Ports / Amps | (1) 1.5A |
| Storage Temperature Range | -4° to 158°F (-20° to 70°C) |
| Storage Humidity Range | 10% to 90% RH, Non-Condensing |
| Number of USB Hub Ports | 6 |
