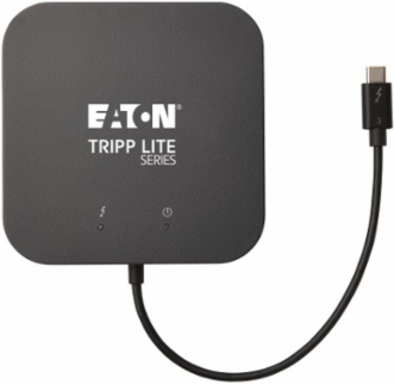

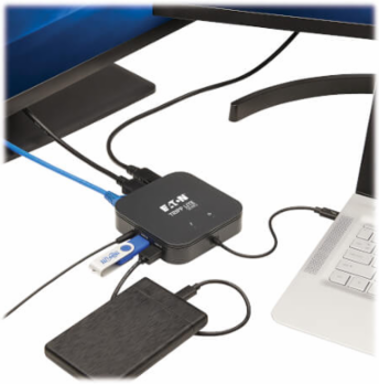

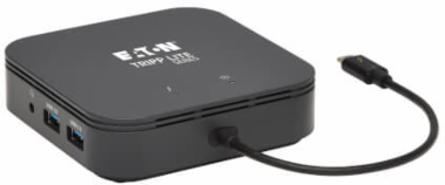

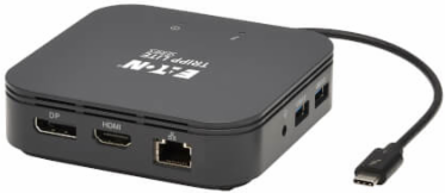

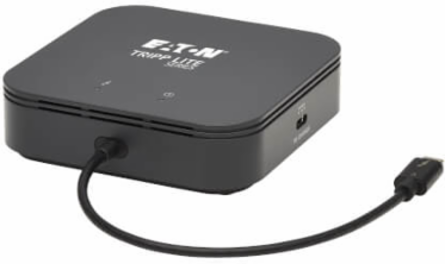

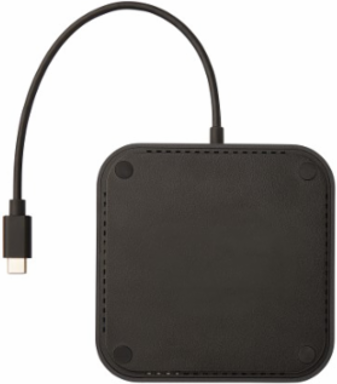

Tripp Lite MTB3DOCK04 Thunderbolt 3 Dual Monitor Docking Station - 8K/30Hz DisplayPort, 4K/60Hz HDMI, USB 3.2 Gen 2, GbE, 60W PD Charging - Black
- MPN: MTB3DOCK04
- UPC: 037332258502
- PPN: TRP-MTB3-DOCK-04
CAD
$197.34
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Thunderbolt 3 Dual Monitor Docking Station - 8K/30Hz DisplayPort, 4K/60Hz HDMI, USB 3.2 Gen 2, GbE, 60W PD Charging - Black
Features
- Thunderbolt 3 Dock, Dual Display, Black
- Owner's manual
Documentation & Downloads
Specifications
Dimensions
| Host Connector | Thunderbolt 3 (Type-C Male) |
|---|---|
| Video Ports Details | HDMI 2.0; HDCP 2.2; DisplayPort 1.4 |
| Audio Ports Details | 3.5mm Combo Stereo Audio/Microphone Jack |
| Data Ports Details | (2) USB-A - USB 3.2 Gen 2 (10 Gbps) |
| Number of Ports | 7 |
| Side A - Connector 1 | Thunderbolt 3 (Type-C Male) |
| Side B - Connector 2 | HDMI (Female) |
| Side B - Connector 4 | 3.5mm (Female) |

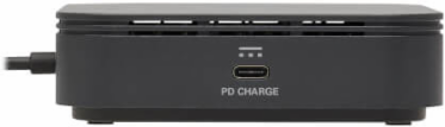

| Side B - Connector 6 | USB-C (Female) |
| Recommended Category Cable | Cat5/Cat5e/Cat6 Cables |
| Unit Weight | 0.481 lb |
| Video Ports | DisplayPort (Female); HDMI (Female) |
|---|---|
| Audio Ports | 3.5mm (Female) |
| Data Ports | (2) USB-A (Female) |
| Network Ports | RJ45 (Female) |
| Dock Connectors | DisplayPort, HDMI, (2) USB-A 3.2 Gen2, USB-C PD Charging, RJ45, 3.5mm |

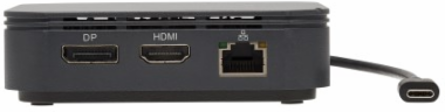

| Side B - Connector 1 | DisplayPort (Female) |
| Side B - Connector 3 | RJ45 (Female) |

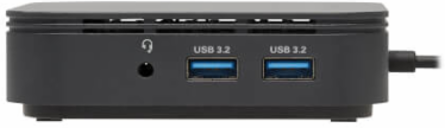

| Side B - Connector 5 | (2) USB-A (Female) |
| Built-In Cable Length | 0.66 ft |
| Unit Dimensions | 0.980 x 4.170 x 4.170 in |
Material
| Color | Black |
|---|---|
| LED Indicators | PD Charging Port in Use = Green, Device Plugged into Thunderbolt Port = Blue |
| Material of Construction | PC, ABS |
|---|
Compliance
| TAA Compliant Option | N |
|---|
| Product Warranty Period | 3-year limited warranty |
|---|
Reference
| Product Type | Docking Station |
|---|
| Technology | DisplayPort; HDMI; Thunderbolt |
|---|
Performance
| USB Specification | USB 3.2 Gen 2 (Up to 10 Gbps) |
|---|---|
| Displayport Specification | 1.4 |
| Number of Monitors Supported | 2 |
| Total Charging Watts | 60 |
| Charging Ports / Amps | 3A |
| Storage Temperature Range | -4° to 158°F (-20° to 70°C) |
| Thunderbolt Specification | Thunderbolt 3 (up to 40Gbps short or active cables) |
|---|---|
| HDCP Specification | 2.2 |
| Network Compatibility | 1 Gbps (Gigabit) |
| Charging Method | USB |
| Operating Temperature Range | 32° to 95°F (0° to 35°C) |
| Relative Humidity | 0-90% non-condensing |
