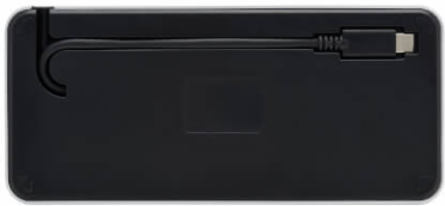

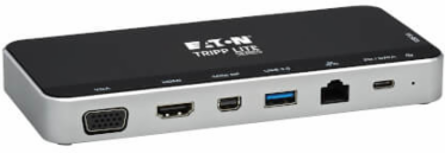

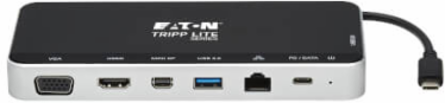

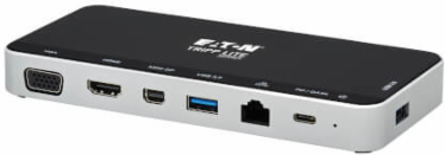

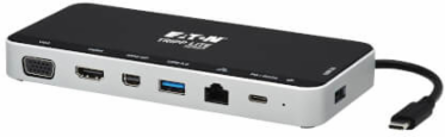

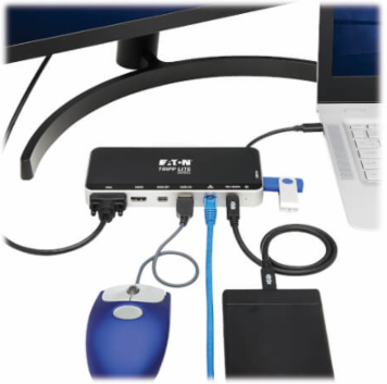

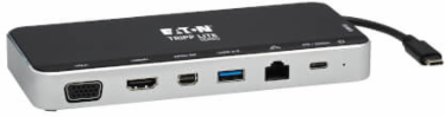

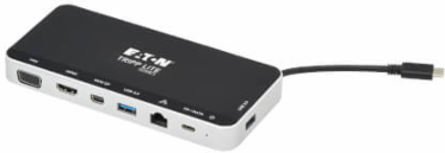

Tripp Lite U442DOCK16B USB-C Dock, Triple Display, 4K HDMI & mDP, VGA, USB 3.x (5Gbps), USB-A/C Hub, GbE, 60W PD Charging
- MPN: U442DOCK16B
- UPC: 037332253620
- PPN: TRP-U442-DOCK16-B
CAD
$129.69
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
USB Dock, Triple Display - 4K HDMI & mDP, VGA, USB 3.x (5Gbps), USB-A/C Hub, GbE, 60W PD Charging
Features
- Owner's manual
Documentation & Downloads
Specifications
Dimensions

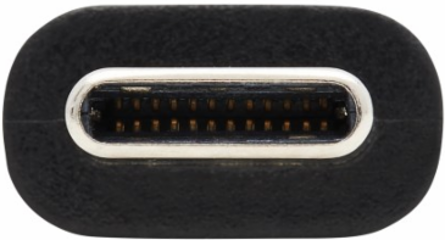

| Host Connector | USB C (MALE) |
|---|---|
| Data Ports | (2) USB A (FEMALE); (1) USB C (FEMALE) |
| Built-In Cable Length | 0.49 |
| Dock Connectors | VGA, HDMI, Mini DisplayPort, (2) USB-A 3.0, RJ45, USB-C PD Charging/Data |
| Side B - Connector 1 | HD15 (FEMALE); HDMI (FEMALE); MINI DISPLAYPORT (FEMALE) |
| Side B - Connector 3 | RJ45 (FEMALE) |
| Unit Dimensions | 1.310 x 3.860 x 0.450 |
| Video Ports | MINI DISPLAYPORT (FEMALE); HDMI (FEMALE); HD15 (FEMALE) |
|---|---|
| Network Ports | RJ45 (FEMALE) |
| Number of Ports | 7 |
| Side A - Connector 1 | USB C (MALE) |
| Side B - Connector 2 | (2) USB A (FEMALE); USB C (FEMALE) |
| LED Indicators | White (Connection to Power) |
| Unit Weight | 0.15 |
Material
| Color | Gray |
|---|
| Material of Construction | Aluminum |
|---|
Compliance
| Cable Jacket Rating | VW-1 |
|---|
| TAA Compliant Option | N |
|---|
Reference
| Product Type | Docking Station |
|---|---|
| Product Warranty Period | 3-year limited warranty |
| Recommended Category Cable | Cat6 Cables |
|---|
Performance
| Technology | HDMI; Stereo Audio; USB 3.x |
|---|---|
| Video Ports Details | DisplayPort 1.2; HDMI 1.4; HDCP 1.4 |
| Battery Charging | No |
| Charging Ports | USB-C: 60W (20V 3A) Power Delivery (PD 3.0) |
| Operating Temperature Range | 32° to 122°F (0° to 50°C) |
| Operating Humidity Range | 10% to 90% RH, Non-Condensing |
| Network Compatibility | 1 Gbps (Gigabit) |
| USB Specification | USB 3.0 (up to 5 Gbps); USB 3.1 Gen 1 (up to 5 Gbps); USB 3.2 Gen 1 (up to 5 Gbps) |
| HDCP Specification | 1.4 |
| Number of Monitors Supported | 3 |
|---|---|
| Data Ports Details | (2) USB-A - USB 3.2 Gen 1 (5 Gbps); (1) USB-C - USB 3.2 Gen 1 (5 Gbps) |
| Total Charging Watts | 60 |
| Charging Ports / Amps | (1) 3A |
| Storage Temperature Range | -4° to 158°F (-20° to 70°C) |
| Storage Humidity Range | 0% to 95% RH, Non-Condensing |
| USB Hub Ports | Yes |
| Displayport Specification | 1.2 |
