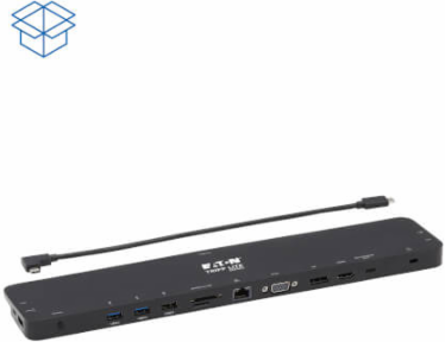

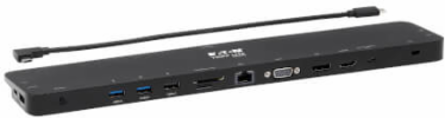

Tripp Lite U442DOCK7DB USB-C Dock, Triple Display, 4K HDMI & DP, VGA, USB 3.x (5Gbps)/USB 2.0 Hub, GbE, 100W PD, Black
- MPN: U442DOCK7DB
- UPC: 037332250698
- PPN: TRP-U442-DOCK7D-B
CAD
$284.02
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
USB-C Dock, Triple Display - 4K HDMI & DP, VGA, USB 3.x (5Gbps) and USB 2.0 Hub Ports, GbE, 100W PD Charging
Features

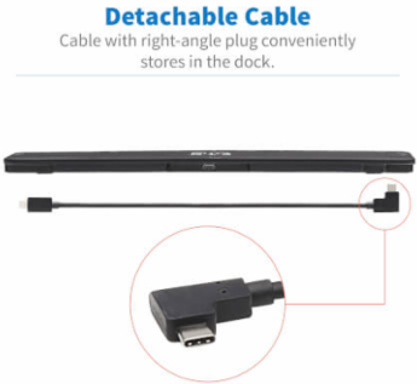

- USB-C cable (M/M), 11-inch (0.27m)
- Owner's manual
Documentation & Downloads
Specifications
Dimensions
| Host Connector | USB-C (Female) |
|---|---|
| Data Ports | (1) USB-C, USB 3.2 Gen 1 (5 Gbps); (2) USB-A, USB 3.2 Gen 1 (5 Gbps); (3) USB-A, USB 2.0 (Female) |
| Number of Ports | 15 |
| Charging Port Types | (5) USB-A (Female), (2) USB-C (Female) |
| Cable Length | 0.89 |
| Unit Weight | 0.55 |
| Audio Port | 3.5mm (Female) |
|---|---|
| Network Port | RJ45 (Female) |

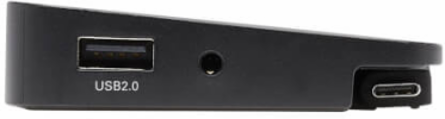

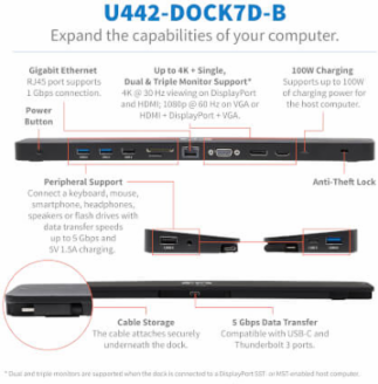

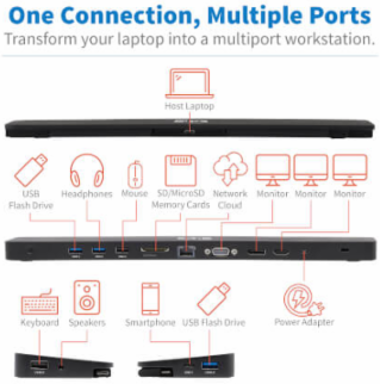

| Port Configuration | (2) USB-C, USB-C PD Charging, (2) USB-A 3.0, USB-A 3.0 BC 1.2, (2) USB-A 2.0, HDMI, DisplayPort, VGA, RJ45, Micro SD, SD, 3.5mm |
| Cable Outer Diameter | 4.2mm |

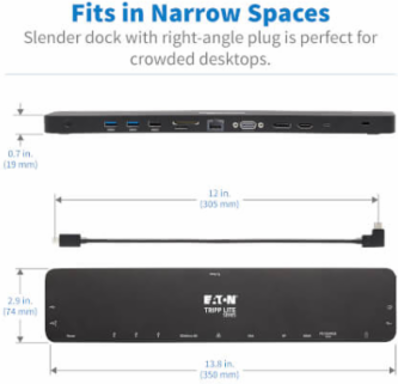

| Unit Dimensions | 0.740 x 13.780 x 2.910 |
| Number of USB Hub Ports | 6 |
Material
| Connector Plating | Nickel |
|---|---|
| Connector Style | Angled, Straight |
| Material | ABS |
| Connector Type | Molded |
|---|---|
| Color | Black |
Compliance
| Certifications | ICES (Canada), NOM (Mexico) |
|---|
| Compliance Standards | CE (Europe), FCC (USA), REACH, RoHS, UKCA |
|---|
Reference
| Product Type | Docking Station |
|---|
| Warranty | 3-year limited warranty |
|---|
Performance
| Supported Technologies | Cat5/5e, Cat6, DisplayPort, HDMI, Stereo Audio, USB 3.x |
|---|---|
| Video Standards | DisplayPort 1.2, HDMI 1.4, HDCP 1.4 |
| Power Consumption | 18.00 |
| Number of Charging Ports | 7 |
| Operating Temperature Range | 32° to 113°F (0° to 45°C) |
| Operating Humidity Range | 10% to 85% RH, Non-Condensing |
| Data Transfer Rate | (2) 480 Mbps, (4) 5 Gbps |

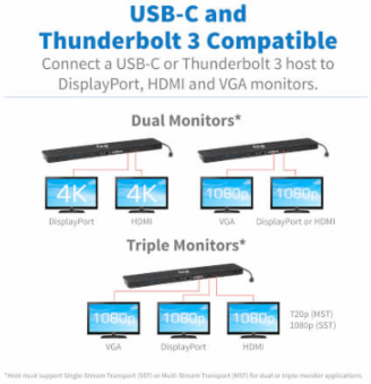

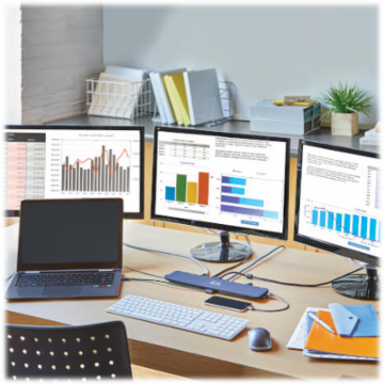

| Number of Monitors Supported | 3 |
|---|---|
| Extended Mode | Yes |
| LED Indicators | Power (Blue); RJ45: White (Connected), Amber (Data) |
| Total Charging Watts | 100 |
| Storage Temperature Range | 14° to 158°F (-10° to 70°C) |
| Storage Humidity Range | 5% to 90% RH, Non-Condensing |
| TAA Compliant Option | No |
