Documentation & Downloads
Tripp Lite U442DOCK21B USB-C Dock, Dual Display, 5K DP, 4K HDMI, USB 3.x (5Gbps), USB-A/C Hub, GbE, 85W PD Charging
- MPN: U442DOCK21B
- UPC: 037332253477
- PPN: TRP-U442-DOCK21-B
CAD
$601.57
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
USB-C Dock, Dual Display - 5K 60 Hz DP, 4K 60 Hz HDMI, USB 3.x (5Gbps), USB-A/C Hub, GbE, 85W PD Charging

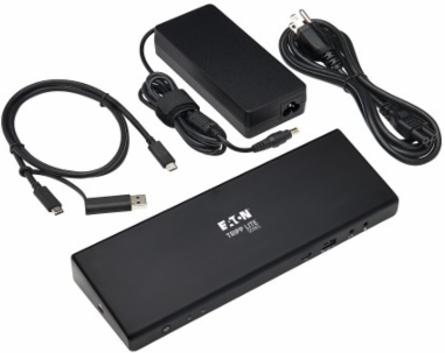

Features
- USB-C cable, 1 m
- USB-C to USB-A adapter
- External power supply (Input: 100–240V, 50/60 Hz, 1.8A; Output: 20V 6.75A)
- C5 to NEMA 5-15P Adapter, 5 ft
- Owner's manual
Documentation & Downloads
Specifications
Dimensions
- Host Connector
- USB C (MALE)
- Video Output
- DISPLAYPORT (FEMALE); HDMI (FEMALE)
- Audio Ports
- (2) 3.5MM (FEMALE)
- Network Ports
- RJ45 (FEMALE)
- AC Power Adapter Cord Length
- 5.25
- DC Barrel Plug
- OD: 5.5 x 2.5 x 10mm, Positive Pin, Negative Sleeve
- Dock Connectors
- USB-C, USB-C PD Charging, (4) USB-A 3.2 Gen1, USB-A 3.2 Gen1 BC 1.2, (2) DisplayPort, (2) HDMI, (2) 3.5mm, RJ45
- Side B - Connector 1
- (2) DISPLAYPORT (FEMALE); (2) HDMI (FEMALE)
- Side B - Connector 3
- RJ45 (FEMALE)
- Side B - Connector 5
- USB C (FEMALE)
- Cable Outer Diameter
- 5.0mm
- Unit Dimensions
- 9.840 x 3.240 x 1.360
Video InputUSB C (FEMALE)
Video Ports(2) DISPLAYPORT (FEMALE); (2) HDMI (FEMALE)
Data Ports(1) USB C (FEMALE); (5) USB A (FEMALE)
AC Power Adapter PlugNEMA 5-15P North America
Input Cord Length5
Number of Ports15
Side A - Connector 1USB C (FEMALE)
Side B - Connector 2(5) USB A (FEMALE)
Side B - Connector 4(2) 3.5MM (FEMALE)
LED IndicatorsPower (Blue), USB Connection (Green)
Cable Length3.28
Unit Weight0.86
Material
- Color
- Black
Material of ConstructionPolycarbonate, ABS
Compliance
- Cable Jacket Rating
- VW-1
TAA Compliant OptionN
Reference
- Product Type
- Docking Station
- Product Warranty Period
- 3-year limited warranty
Recommended Category CableCat6 Cables
Performance
- Technology
- Cat5/5e; Cat6; DisplayPort; HDMI; USB 3.x
- Video Ports Details
- DisplayPort 1.2; HDMI 2.0
- Audio Specification
- 2.1 Channel Surround Sound, TRRS
- AC Power Adapter Input Specs
- 100-240V / 50/60Hz / 1.8A
- Voltage Compatibility
- 100; 110; 120; 125; 127; 200; 208; 220; 230; 240
- Power Source Type
- AC Adapter with detachable power cord
- Power Consumption
- 15.00
- Total Charging Watts
- 100
- Charging Ports Details
- (4) USB-A ports support 5V/0.9A (4.5W) charging; (1) USB-A port supports 5V/1.5A (7.5W) charging and Apple Charging 5V/2.4A (12A); (1) USB-C port supports 5V/1.5A (7.5W) charging; Charge host with PD 2.0 charging (5/9/15V, 3A; 20V/4.25A) up to 85W
- Operating Temperature Range
- 32° to 104°F (0° to 40°C)
- Operating Humidity Range
- 20% to 80% RH, Non-Condensing
- Network Compatibility
- 1 Gbps (Gigabit)
- Displayport Specification
- 1.2
Number of Monitors Supported2
Audio Ports DetailsSeparate 3.5 mm mini stereo jacks for speakers and microphone
Data Ports Details(1) USB-C - USB 3.2 Gen 1 (5 Gbps); (5) USB-A - USB 3.2 Gen 1 (5 Gbps)
AC Power Adapter Output Specs20V / 6.75A
Battery ChargingYes
AC AdapterInput: 100–240V, 50/60 Hz, 1.8A; Output: 20V, 6.75A
Number of Charging Ports6
Charging PortsUSB-A: 5V 1.5A (7.5W); USB-C: 100W (20V 5A) Power Delivery (PD 2.0)
Charging Ports / Amps(4) 0.9A; (2) 1.5A; 2.4A
Storage Temperature Range-4° to 158°F (-20° to 70°C)
Storage Humidity Range20% to 80% RH, Non-Condensing
USB SpecificationUSB 3.0 (up to 5 Gbps); USB 3.1 Gen 1 (up to 5 Gbps); USB 3.2 Gen 1 (up to 5 Gbps)
