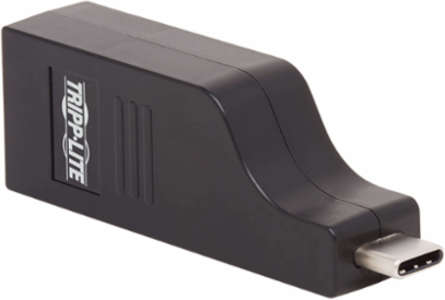

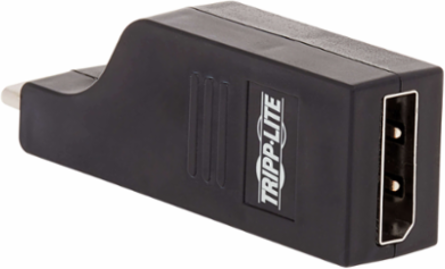

Tripp Lite U444-000-DP4K6B USB-C to DisplayPort Vertical Adapter, 3840 x 2160 (4K) Support, Black
- MPN: U444-000-DP4K6B
- UPC: 037332238092
- PPN: TRP-U444-000-DP4K6B
CAD
$15.25
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
USB-C to DisplayPort Vertical Adapter, 3840 x 2160 (4K) Support, Black
Features
- Vertical USB-C plug orientation prevents adjacent ports from being blocked
- Converts video signals from sources supporting USB-C DisplayPort Alt Mode
- Delivers UHD picture quality at resolutions up to 3840 x 2160 (4K x 2K) @ 60 Hz
- Reversible USB-C plug connects in either direction for immediate no-fuss use
- Plug-and-play operation with no software required for easy, immediate installation
- 3-year limited warranty
- USB-C to DisplayPort Adapter Connects to Your Laptop’s USB-C or Thunderbolt 3 Port
- Supports USB-C DisplayPort Alternate Mode for Converting Audio/Video Signals
- Supports Crystal-Clear 4K Video with Multi-Channel Audio and 4:4:4 Color
- Vertical Molding Prevents Blockage of Adjacent Ports
- Ready to Use Right from the Package, So You Can Plug and Play Immediately
Specifications
Features & Specifications
- Max Supported Video Resolution
- 3840 x 2160 (4K x 2K) @ 60 Hz
- HDCP Specification
- 2.2
- Audio Specification
- Supports 7.1-channel surround sound
- USB Power Delivery (PD) Charging Support
- No
- Chroma Sub Sampling
- 4:4:4
Displayport Specification1.2
USB SpecificationUSB 3.0 (up to 5 Gbps); USB 3.1 Gen 1 (up to 5 Gbps)
Driver RequiredNo
TechnologyDisplayPort; USB 3.1 (Gen 1)
Certifications
- Certifications
- Certified to RoHS, REACH, CE, FCC
Connections

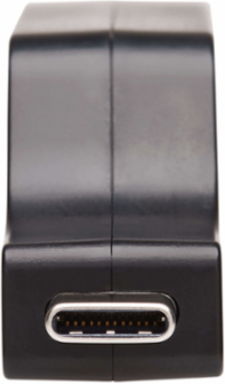

- Side A - Connector 1
- USB C (MALE)
- Contact Plating
- Gold

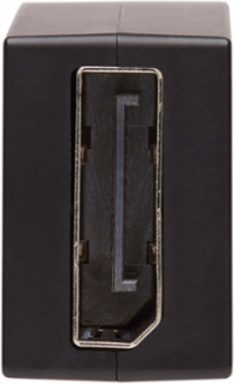

Side B - Connector 1DISPLAYPORT (FEMALE)
Physical
- Color
- Black
- Unit Dimensions (hwd / in.)
- 0.56 x 0.82 x 2.26
- Unit Weight (lbs.)
- 0.0192
Material of ConstructionABS, PBT
Unit Packaging TypePolybag
User Interface, Alerts & Controls
- LED Indicators
- N/A
Input
- Bus Powered
- Yes
Environmental
- Operating Temperature Range
- 32 ~ 104F (0 ~ 40C)
- Relative Humidity
- 0 ~ 85% RH, Non-Condensing
Storage Temperature Range5 ~ 122F (-15 ~ 50C)
Overview
- UPC Code
- 037332238092
Special Features
- HDR Support
- Yes
Warranty
- Product Warranty Period (Worldwide)
- 3-year limited warranty
