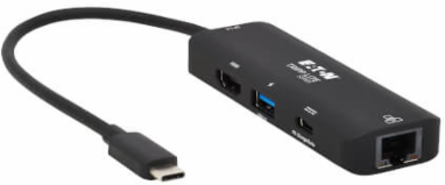

Tripp Lite U44406NH4GUC2 USB-C Multiport Adapter, 4K 60Hz HDMI, USB 3.x Hub Ports, GbE, 100W PD, HDR, HDCP 2.2, Black
- MPN: U44406NH4GUC2
- UPC: 037332257185
- PPN: TRP-U444-06N-H4GUC2
CAD
$102.25
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
USB-C Multiport Adapter - 4K 60 Hz HDMI, USB 3.x (5Gbps) Hub Ports, GbE, 100W PD Charging, HDR, HDCP 2.2
Features
- Includes owner's manual
Documentation & Downloads
Specifications
Dimensions
| Host Connector | USB C (MALE) |
|---|---|
| Data Ports | USB A (FEMALE); USB C (FEMALE) |
| Charging Port Type | USB A (FEMALE); USB C (FEMALE) |
| Built-In Cable Length | 0.557 |
| Unit Dimensions | 0.550 x 1.340 x 3.750 |
| Video Output | HDMI (FEMALE) |
|---|---|
| Network Ports | RJ45 (FEMALE) |
| Number of Ports | 4 |
| Cable Outer Diameter | 4.3mm |
| Unit Weight | 0.0661 |
Material
| Color | Black |
|---|---|
| Cable Jacket Material | TPE |
| Material of Construction | Polycarbonate, ABS |
|---|---|
| Connector Plating | Nickel |
Compliance
| TAA Compliant Option | N |
|---|
Reference
| Product Type | Multiport Hub |
|---|---|
| Recommended Category Cable | Cat6 |
| Technology | Cat5/5e; Cat6; HDMI; USB 3.x |
|---|---|
| Product Warranty Period | 3-year limited warranty |
Performance
| Number of Monitors Supported | 1 |
|---|---|
| Max Supported Video Resolution | 4096 x 2160 (4K) @ 60 Hz (USB-C/Thunderbolt 3 DP 1.4 Alt Mode); 4096 x 2160 (4K) @ 30 Hz (USB-C/Thunderbolt 3 DP 1.2 Alt Mode) |
| HDCP Specification | 1.4; 2.2 |
| Extended Mode Details | Extends desktop to HDMI at 4K 60 Hz (DP 1.4 Alt Mode) or 4K 30 Hz (DP 1.2 Alt Mode) |
| Data Ports Details | USB-A - USB 3.2 Gen 1 (5 Gbps); USB-C - USB 3.2 Gen 1 (5 Gbps) |
| LED Indicators | Connected (White); Transferring Data (Orange) |
| Total Charging Amps | 1.5A (USB-A x1); 5A (PD Charge) |
| Charging Ports | (1) USB-A: 5V 1.5A (7.5W); (1) USB-C: 100W (20V 5A) Power Delivery (PD 3.0) |
| Quick Charge Compliant | No |
| Operating Temperature Range | 32° to 113°F (0° to 45°C) |
| Operating Humidity Range | 10 to 85% RH (No Condensation) |
| Supported Resolutions | 1280x720 (720p); 1920x1080 (1080p); 3840x2160 (4K) |
|---|---|
| HDMI Specification | 2.0 |
| Extended Mode | Yes |
| Mirror Mode Details | Mirrors video to HDMI at 4K 60 Hz (DP 1.4 Alt Mode) or 4K 30 Hz (DP 1.2 Alt Mode) |
| Network Speed | 1 Gbps (Gigabit) |
| Number of Charging Ports | 2 |
| Total Charging Watts | 100 |
| Charging Ports Details | USB-C PD: 7.5W reserved for unit power, up to 92.5W available for host charging |
| USB Specification | USB 3.0 (up to 5 Gbps); USB 3.1 Gen 1 (up to 5 Gbps); USB 3.2 Gen 1 (up to 5 Gbps) |
| Storage Temperature Range | 14° to 158°F (-10° to 70°C) |
| Storage Humidity Range | 5% to 90% RH (No Condensation) |
