Schneider Electric ATV320D15M3C Variable Speed Drive, 15kW, 200-240V, Compact, 6.9kg
- MPN: ATV320D15M3C
- PPN: SCH-ATV320D15M3C
CAD
$2800.38
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

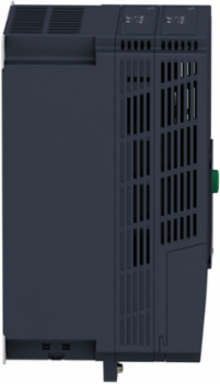

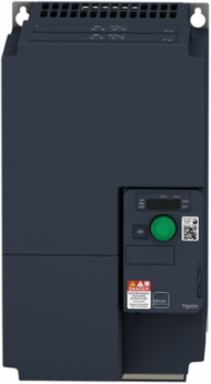

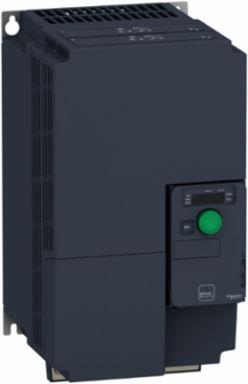

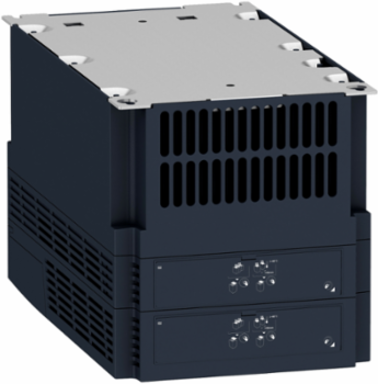

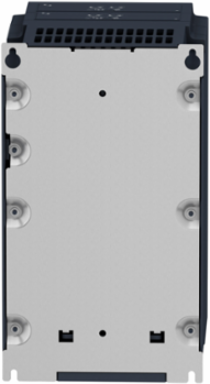

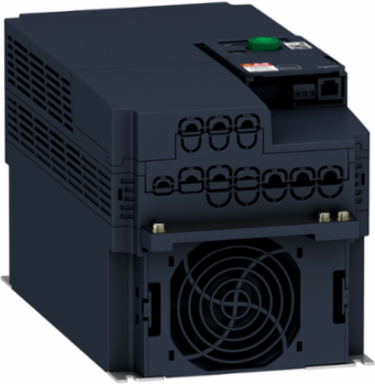

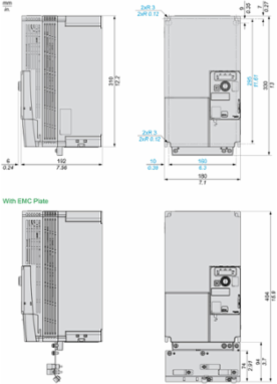

Variable Speed Drive, 15kW, 200-240V, Compact, 6.9kg
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Indonesia, United States
Depth198.0 mm
Communications & Management Attributes
- Communication Port Protocol
- Modbus serial, CANopen
Complementary Attributes
- Maximum Switching Current
- relay output R1A, R1B, R1C, R2A, R2C inductive, cos phi = 0.4 7 ms 2 A 30 V DCrelay output R2A, R2C resistive, cos phi = 1 5 A 30 V DCrelay output R1A, R1B, R1C resistive, cos phi = 1 3 A 250 V ACrelay output R1A, R1B, R1C resistive, cos phi = 1 3 A 30 V DC, relay output R1A, R1B, R1C, R2A, R2C inductive, cos phi = 0.4 7 ms 2 A 250 V ACrelay output R2A, R2C resistive, cos phi = 1 5 A 250 V AC
- Maximum Associated Fuse Rating
- 125.0 A
- Maximum Input Current Per Phase
- 79.7 A
- Maximum Output Voltage
- 240 V
Brake Chopper Integratedtrue
Maximum Horse Power Rating20 hp
Maximum Output Frequency0.599 kHz
Minimum Switching Currentrelay output R1A, R1B, R1C, R2A, R2C 5 mA 24 V DC
Important Information Attributes
- Persona Type Ids
- EU, OM, OM8
- Asynchronous Motor Control Profile
- voltage/frequency ratio, 5 points, flux vector control without sensor, standard, voltage/frequency ratio - Energy Saving, quadratic U/f, flux vector control without sensor - Energy Saving, voltage/frequency ratio, 2 points
- Linearity Error
- AI1, AI2, AI3 +/- 0.2...0.5 % of maximum value analog input, AQ1 +/- 0.3 % analog output
- Motor Slip Compensation
- automatic whatever the load, adjustable 0...300 %, not available in voltage/frequency ratio (2 or 5 points)
- Protection Type
- input phase breaks drive, overcurrent between output phases and earth drive, overheating protection drive, short-circuit between motor phases drive, thermal protection drive
- Speed Accuracy
- +/- 10 % of nominal slip 0.2 Tn to Tn, +/- 10 % of nominal slip 0.2 Tn to Tn, +/- 10 % of nominal slip 0.2 Tn to Tn, +/- 10 % of nominal slip 0.2 Tn to Tn
- Environmental Class (During Operation)
- class 3C3 according to IEC 60721-3-3, class 3S2 according to IEC 60721-3-3
- Environmental Class (During Transport)
- class 2C3 according to EN 60721-3, class 2S1 according to EN 60721-3
- Carbon Footprint Of The End-of-life Phase [C1 To C4]
- 13.366, 13 kg CO2 eq.
- Carbon Footprint Of The Manufacturing Phase [A1 To A3]
- 90 kg CO2 eq., 89.635
- Local Data Status
- Publishable
- Return Indicator
- Y
- Stock Policy
- 2
- Serviceability
- Yes
- Field Service Division
- IDIBS
- Manufacturing Carbon Footprint
- 89.635
- Installation Carbon Footprint
- 1.9381
- End Of Life Carbon Footprint
- 13.366
- Weee Applicability
- Finished product
- Weee Product Category
- 5
- Eoli Availability Display
- Yes
- Reach Full Compliance Status
- Reference contains Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Reference contains Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant By Exemption
- Rohs Eur Full Compliance Status
- Compliant By Exemption
- China Rohs Label
- 5
- Without Single Use Plastic
- Yes
- Tier Id
- 1
- Function Option Id
- STANDARD
- Market Segmentation Id
- INDUSTRIAL
- Product Kit Identifier
- N
- 4 Quadrant Operation Possible
- true
- Application In Domestic And Commercial Area Permitted
- false
- Braking To Standstill
- by DC injection
- Computer Port
- true
- Emc Filter
- without EMC filter
- Format Of The Drive
- compact
- Line Current
- 79.7 A 200 V heavy duty)67.1 A 240 V heavy duty)
- Maximum Input Current Per Phase
- 79.7 A
- Motor Power Kw
- 15.0 kW heavy duty
- Network Frequency
- 50-60 Hz
- Nominal Switching Frequency
- 4 kHz
- Number Of Hw Interfaces Other
- 1.0
- Number Of Hw Interfaces Profinet
- 0.0
- Number Of Hw Interfaces Serial Rs42
- 0.0
- Number Of Hw Interfaces Serial Tty
- 0.0
- Number Of Output Phases
- 3
- Operating Position
- vertical +/- 10 degree
- Overvoltage Category
- III
- Power Dissipation In W
- fan 551 W 200 V 4 kHz
- Power Loss Static Current Independent
- 551 W
- Product Or Component Type
- variable speed drive
- Prospective Line Isc
- 22 kA
- Regulation Loop
- adjustable PID regulator
- Relative Symmetric Network Frequency Tolerance
- 5 %
- Sampling Duration
- 2 ms AI1, AI2, AI3) - analog input2 ms AQ1) - analog output
- Supporting Protocol For Asi
- false
- Supporting Protocol For Can
- true
- Supporting Protocol For Devicenet Safety
- false
- Supporting Protocol For Interbus
- false
- Supporting Protocol For Lon
- false
- Supporting Protocol For Other Bus Systems
- true
- Supporting Protocol For Profinet Cba
- false
- Supporting Protocol For Profisafe
- false
- Supporting Protocol For Sercos
- false
- Sustainable Packaging
- Yes
- Synchronous Motor Control Profile
- vector control without sensor
- Transient Overtorque
- 170-200 % of nominal motor torque
- Volume Of Cooling Air
- 156.0 m3/h
- With Safety Function Safe Programmable Logic
- false
- Motor Power Kw 10 N Motor Power Kw
- 15.0 kW
- Database Version
- 2022-01
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent external review
- Functional-unit Description
- To adapt the speed and torque of synchronous, asynchronous or reluctance motor to the machine's operating point for 15 kW for heavy duty electric motors for fluid management and industrial applications in IP20/UL type 1 conditions, at 200V to 240V rated 3-phases voltage supply. Calculation of the environmental impacts is based on 10 years of product service lifetime. The usage profile taken into account is 80% uptime in use phase at 75% loading rate and 20% uptime in stand by phase.
- Functional-unit Unit
- Unit
- Energy Consumption On Product Lifetime In Kwh
- 26332.56
- Energy Model - Installation [A5]
- Electricity Mix; AC; consumption mix, at consumer; < 1kV; EU-27
- Energy Model - End Of Life [C1-c4]
- Electricity Mix; AC; consumption mix, at consumer; < 1kV; EU-27
- Height Nominal
- 330 mm
- [Us] Rated Supply Voltage
- 200...240 V200...240 V - 15...10 %
- Maximum Acceleration Under Shock Impact (During Operation)
- 150 m/s² at 11 ms
- Maximum Acceleration Under Shock Load (During Transport)
- 150 m/s² at 11 ms
- Maximum Acceleration Under Vibratory Load (During Storage)
- 10 m/s² at 13...200 Hz
- Maximum Deflection Under Vibratory Load (During Operation)
- 1.5 mm at 2...13 Hz
- Maximum Deflection Under Vibratory Load (During Transport)
- 3.5 mm at 2...13 Hz
- Permitted Relative Humidity (During Storage)
- class 1K5 according to EN 60721-3
- Supporting Protocol For As-interface Safety At Work
- false
- Supporting Protocol For Ethernet/Ip
- true
- Supporting Protocol For Tcp/Ip
- true
- With Safety Function Safe Direction (Sdi)
- false
- With Safety Function Safe Position (Sp)
- false
- With Safety Function Safe Stop 1 (Ss1)
- true
- With Safety Function Safely Limited Position (Slp)
- false
- With Sft Fct Safe Stop 2 (Ss2)
- false
- Nbr. Of Units In Pkg.
- 1
- Take-back
- No
- Acidification (Ap) (Mole Of H+ Equiv) Operational Energy Use [B6]
- 133.81
- Climate Change - Biogenics ( Kg Co2 Eq.) End Of Life [C1-c4]
- 0.246
- Climate Change - Fossil Fuels ( Kg Co2 Eq.) Manufacturing [A1-a3]
- 88.472
- Climate Change - Fossil Fuels ( Kg Co2 Eq.) Installation [A5]
- 1.852
- Climate Change - Fossil Fuels ( Kg Co2 Eq.) End Of Life [C1-c4]
- 13.12
- Climate Change - Total ( Kg Co2 Eq.) Total Life Cycle
- 15999.9807
- Climate Change - Total ( Kg Co2 Eq.) Distribution [A4]
- 1.0416
- Climate Change - Total ( Kg Co2 Eq.) Operational Energy Use [B6]
- 15894
- Climate Change - Total ( Kg Co2 Eq.) Benefits/Loads Beyond System Boundaries [D]
- -9.8715
- Depletion Of Abiotic Resources - Fossil Fuels (Mj) Manufacturing [A1-a3]
- 1726.7
- Depletion Of Abiotic Resources - Fossil Fuels (Mj) Installation [A5]
- 20.173
- Depletion Of Abiotic Resources - Fossil Fuels (Mj) End Of Life [C1-c4]
- 307.66
- Ecotoxicity (Fresh Water) (Ctue) Manufacturing [A1-a3]
- 3037.1
- Ecotoxicity (Fresh Water) (Ctue) Operational Energy Use [B6]
- 88216
- Ecotoxicity (Fresh Water) (Ctue) Benefits/Loads Beyond System Boundaries [D]
- -164.21
- Hazardous Waste Disposed Of (Kg) End Of Life [C1-c4]
- 7.8971
- Impacts Related To Land Use/Soil Quality (-) End Of Life [C1-c4]
- 18.867
- Ionizing Radiation Human Health (Kbq Of U235 Equiv.) Operational Energy Use [B6]
- 4572.5
- Ionizing Radiation Human Health (Kbq Of U235 Equiv.) Benefits/Loads Beyond System Boundaries [D]
- -61.331
- Materials For Recycling (Kg) Installation [A5]
- 1.0651
- Net Use Of Fresh Water (M3) Manufacturing [A1-a3]
- 1.2097
- Net Use Of Fresh Water (M3) End Of Life [C1-c4]
- 30.823
- Non-hazardous Waste Disposed Of (Kg) Installation [A5]
- 6.3047
- Non-hazardous Waste Disposed Of (Kg) End Of Life [C1-c4]
- 2.2201
- Photochemical Ozone Formation (Kg Of Nmvoc Equiv) Operational Energy Use [B6]
- 36.297
- Terrestrial Eutrophication (Mole Of N Equiv) Manufacturing [A1-a3]
- 1.2837
- Total Use Of Non-renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Total Life Cycle
- 76.08
- Total Use Of Non-renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Benefits/Loads Beyond System Boundaries [D]
- -0.0047
- Total Use Of Primary Energy During The Life Cycle (Mj) Manufacturing [A1-a3]
- 1765.2
- Total Use Of Primary Energy During The Life Cycle (Mj) Installation [A5]
- 21.621
- Total Use Of Primary Energy During The Life Cycle (Mj) End Of Life [C1-c4]
- 314.39
- Total Use Of Renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Manufacturing [A1-a3]
- 38.571
- Total Use Of Renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Operational Energy Use [B6]
- 22538
- Total Use Of Renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Benefits/Loads Beyond System Boundaries [D]
- -8.8533
- Use Of Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Manufacturing [A1-a3]
- 76.08
- Use Of Non-renewable Primary Energy Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Manufacturing [A1-a3]
- 1650.6
- Use Of Non-renewable Primary Energy Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Installation [A5]
- 20.173
- Use Of Non-renewable Primary Energy Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) End Of Life [C1-c4]
- 307.66
- Use Of Renewable Primary Energy Resources Used As Raw Materials (Mj) Total Life Cycle
- 7.8874
- Use Of Renewable Primary Energy Resources Used As Raw Materials (Mj) Benefits/Loads Beyond System Boundaries [D]
- -16.648
- Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials (Mj) Installation [A5]
- 1.4476
- Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials (Mj) End Of Life [C1-c4]
- 6.724
- Water Use (M3 Eq) Manufacturing [A1-a3]
- 49.929
- Water Use (M3 Eq) Operational Energy Use [B6]
- 1741.7
- Water Use (M3 Eq) Benefits/Loads Beyond System Boundaries [D]
- -5.9435
- Percentage Bio Based Plastic
- 16 %
Persona Type NamesEnd User, Original Equipment Manufacturer, OEM - Control Panelbuilder
Electromagnetic Compatibilityelectrostatic discharge immunity test level 3 conforming to IEC 61000-4-2radiated radio-frequency electromagnetic field immunity test level 3 conforming to IEC 61000-4-3, electrical fast transient/burst immunity test level 4 conforming to IEC 61000-4-41.2/50 µs - 8/20 µs surge immunity test level 3 conforming to IEC 61000-4-5conducted radio-frequency immunity test level 3 conforming to IEC 61000-4-6voltage dips and interruptions immunity test conforming to IEC 61000-4-11
MarkingCE, ATEX, UL, CSA, EAC, RCM
Option Cardcommunication module, CANopen, communication module, EtherCAT, communication module, Profibus DP V1, communication module, PROFINET, communication module, Ethernet Powerlink, communication module, EtherNet/IP, communication module, DeviceNet
Refresh Timelogic input DI1...DI4)8 ms, relay output R1A, R1B, R1C)2 ms, relay output R2A, R2C)2 ms
Certificate AgencyCE, ATEX, NOM, GOST, EAC, RCM, KC
Environmental Class (During Storage)class 1C3 according to EN 60721-3, class 1S2 according to EN 60721-3
Carbon Footprint Of The Distribution Phase [A4]1.0416, 1 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]2 kg CO2 eq., 1.9381
Carbon Footprint Of The Use Phase [B2 B3 B4 B6]15 894 kg CO2 eq., 15894
Local Publishable Date2026-01-12
Stocking FlagN
Device TypeVariable speed drive - VSD Compacts
TraceabilityYes
Average Life Duration10 year(s)
Distribution Carbon Footprint1.0416
Use Carbon Footprint15894
Average Percentage Of Asi Certified Metals100 %
Weee ScopeIn
Scope PerimeterAt least in Europe
End Of Life Doc RefENVEOLI1604023EN
Reach Full Compliance Status IdCONTAINS_SVHC
Rohs Eur In ScopeNo
Rohs Eur Conformity Date1714
China Rohs In ScopeYes
With Recycled CardboardYes
Product Contributes To Saved And Avoided EmissionsYES_SSI2Yes
Tier1
Function OptionStandard
Market SegmentationIndustrial
1 Phase Low Current Possiblefalse
Apparent Power27.9 kVA 240 V heavy duty)
Base Load Current At High Overload8.0 A
Capacity Of Dc Link7000 µF
Design Of Frequency ChangerU converter
Encoder ProtocolRS 422
Housing Materialplastic
Maximum Associated Fuse Rating125.0 A
Method Of Accessslave CANopen
Mounting Modewall mount
Network Number Of Phases3 phase
Number Of Hw Interfaces Industrial Ethernet0.0
Number Of Hw Interfaces Parallel0.0
Number Of Hw Interfaces Serial Rs230.0
Number Of Hw Interfaces Serial Rs4851.0
Number Of Hw Interfaces Usb0.0
Operating Element Presenttrue
Optical Interface Presentfalse
Phase3 phase
Power Loss Per Device Current Dependent551 W
Product AvailabilityStock - Normally stocked in distribution facility
Product Specific Applicationcomplex machines
Range Of ProductAltivar Machine ATV320
Relative Symmetric Mains Voltage Tolerance10 %
ReturnabilityYes
Software Versionv5.9.4
Supporting Protocol For Bacnetfalse
Supporting Protocol For Devicenettrue
Supporting Protocol For Foundation Fieldbusfalse
Supporting Protocol For Knxfalse
Supporting Protocol For Modbustrue
Supporting Protocol For Profibustrue
Supporting Protocol For Profinet Iotrue
Supporting Protocol For Safetybus Pfalse
Supporting Protocol For Suconetfalse
Switching Frequency2...16 kHz adjustable4...16 kHz with derating factor
Total Lifecycle Carbon Footprint16 000 kg CO2 eq.
UpdatabilityUpgradeable through digital modules
Weee LabelThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Application In Industrial Area Permittedtrue
Pep CodeENVPEP1604023EN
Pep Verification Date2023-06-09
Psr VersionNo PSR
Data Sourcereferent product
Functional-unit Quantity1
Reference Lifetime In Y10
Energy Model - Manufacturing [A1-a3]Electricity Mix; Production mix; Low voltage; ID
Energy Model - Use [B6]Electricity Mix; AC; consumption mix, at consumer; < 1kV; EU-27
Recyclability Potential In %43
Width Nominal180 mm
Emc Limit Value (Complied)false
Maximum Acceleration Under Shock Load (During Storage)150 m/s² at 11 ms
Maximum Acceleration Under Vibrational Stress (During Operation)10 m/s² at 13...200 Hz
Maximum Acceleration Under Vibratory Load (During Transport)10 m/s² at 13...200 Hz
Maximum Deflection Under Vibratory Load (During Storage)3.5 mm at 2...13 Hz
Permitted Relative Humidity (During Operation)class 3K5 according to EN 60721-3
Permitted Relative Humidity (During Transport)class 2K5 according to EN 60721-3
Supporting Protocol For Data-highwayfalse
Supporting Protocol For Interbus-safetyfalse
With Safety Function Safe Brake Management (Sbc/Sbt)false
With Safety Function Safe Operating Stop (Sos)false
With Safety Function Safe Speed Monitor (Ssm)false
With Safety Function Safe Torque Off (Sto)true
With Safety Function Safely Limited Speed (Sls)true
Carbon Footprint (Kg Co2 Eq Total Life Cycle)15999.9807
Package Weight(Lbs)8.134 kg
Warranty (In Months)18
Climate Change - Biogenics ( Kg Co2 Eq.) Manufacturing [A1-a3]1.1635
Climate Change - Fossil Fuels ( Kg Co2 Eq.) Total Life Cycle15998.4856
Climate Change - Fossil Fuels ( Kg Co2 Eq.) Distribution [A4]1.0416
Climate Change - Fossil Fuels ( Kg Co2 Eq.) Operational Energy Use [B6]15894
Climate Change - Fossil Fuels ( Kg Co2 Eq.) Benefits/Loads Beyond System Boundaries [D]-9.7452
Climate Change - Total ( Kg Co2 Eq.) Manufacturing [A1-a3]89.635
Climate Change - Total ( Kg Co2 Eq.) Installation [A5]1.9381
Climate Change - Total ( Kg Co2 Eq.) End Of Life [C1-c4]13.366
Depletion Of Abiotic Resources - Fossil Fuels (Mj) Total Life Cycle294509.044
Depletion Of Abiotic Resources - Fossil Fuels (Mj) Distribution [A4]14.511
Depletion Of Abiotic Resources - Fossil Fuels (Mj) Operational Energy Use [B6]292440
Depletion Of Abiotic Resources - Fossil Fuels (Mj) Benefits/Loads Beyond System Boundaries [D]-189.64
Ecotoxicity (Fresh Water) (Ctue) Installation [A5]13.229
Ecotoxicity (Fresh Water) (Ctue) End Of Life [C1-c4]2580.1
Hazardous Waste Disposed Of (Kg) Manufacturing [A1-a3]226.95
Hazardous Waste Disposed Of (Kg) Benefits/Loads Beyond System Boundaries [D]-200.59
Ionizing Radiation Human Health (Kbq Of U235 Equiv.) Manufacturing [A1-a3]2451.2
Ionizing Radiation Human Health (Kbq Of U235 Equiv.) End Of Life [C1-c4]0.3579
Marine Aquatic Eutrophication (Kg Of N Equiv) Operational Energy Use [B6]10.924
Materials For Recycling (Kg) End Of Life [C1-c4]3.0374
Net Use Of Fresh Water (M3) Operational Energy Use [B6]40.552
Non-hazardous Waste Disposed Of (Kg) Manufacturing [A1-a3]78.139
Non-hazardous Waste Disposed Of (Kg) Operational Energy Use [B6]58155
Non-hazardous Waste Disposed Of (Kg) Benefits/Loads Beyond System Boundaries [D]-29.852
Radioactive Waste Disposed Of (Kg) Operational Energy Use [B6]47.406
Terrestrial Eutrophication (Mole Of N Equiv) Operational Energy Use [B6]118.96
Total Use Of Non-renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Manufacturing [A1-a3]76.08
Total Use Of Primary Energy During The Life Cycle (Mj) Total Life Cycle317085.742
Total Use Of Primary Energy During The Life Cycle (Mj) Distribution [A4]14.531
Total Use Of Primary Energy During The Life Cycle (Mj) Operational Energy Use [B6]314970
Total Use Of Primary Energy During The Life Cycle (Mj) Benefits/Loads Beyond System Boundaries [D]-198.49
Total Use Of Renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Installation [A5]1.4476
Total Use Of Renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) End Of Life [C1-c4]6.724
Use Of Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Total Life Cycle76.0753
Use Of Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Benefits/Loads Beyond System Boundaries [D]-0.0047
Use Of Non-renewable Primary Energy Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Distribution [A4]14.511
Use Of Non-renewable Primary Energy Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Operational Energy Use [B6]292440
Use Of Non-renewable Primary Energy Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Benefits/Loads Beyond System Boundaries [D]-189.64
Use Of Renewable Primary Energy Resources Used As Raw Materials (Mj) Manufacturing [A1-a3]7.8874
Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials (Mj) Manufacturing [A1-a3]30.683
Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials (Mj) Operational Energy Use [B6]22538
Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials (Mj) Benefits/Loads Beyond System Boundaries [D]7.7949
Water Use (M3 Eq) Installation [A5]0.8277
Water Use (M3 Eq) End Of Life [C1-c4]1177.8
Customs Code8504404000
Average Percentage Of Bio-based Plastic Content16 %
Environment Attributes Main
- Ambient Air Temperature For Operation
- -10-50 °C without derating, -10-50 °C without derating, -10-60 °C, -10-60 °C, -10-50 °C without derating, -10-50 °C without derating50-60 °C with derating factor
- Ambient Air Transport Temperature
- -25-70 °C, -25-70 °C
- Recycled Metal Content At Cr Level
- 0 %
- Mercury Free
- Yes
- Circularity Profile
- ENVEOLI1604023EN
- Eu Rohs Directive
- Compliant By Exemption
- Nema Degree Of Protection
- NEMA 1
- Packaging Without Single Use Plastic
- Yes
- Pep Code
- ENVPEP1604023EN
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent external review
Ambient Air Temperature For Storage-25-70 °C, -25-70 °C
Take BackNo
China Rohs RegulationX
Carbon Footprint15999.9807
Environmental DisclosureENVPEP1604023EN
Ip Degree Of ProtectionIP20
Packaging Made With Recycled CardboardYes
Reach RegulationReference contains Substances of Very High Concern above the threshold
Pep Verification Date2023-06-09
Psr VersionNo PSR
General Attributes
- Phase
- 3 phase
- Range Of Product
- Altivar Machine ATV320
Product Or Component Typevariable speed drive
ETIM
- ETIM 8
- EC001857
ETIM 9EC001857
Output Attributes
- Discrete Output Type
- open collector DQ+ 0-1 kHz 30 V DC 100 mA, open collector DQ- 0-1 kHz 30 V DC 100 mA
- Analogue Output Number
- 1
- Discrete Output Number
- 3
- Maximum Output Voltage
- 240 V
- Nominal Output Power
- 15.0 kW
Relay Output Typeconfigurable relay logic R1A 1 NO 100000 cyclesconfigurable relay logic R1B 1 NC 100000 cycles, configurable relay logic R1C, configurable relay logic R2A 1 NO 100000 cycles, configurable relay logic R2C
Analogue Output Typesoftware-configurable current AQ1 0...20 mA 800 Ohm 10 bitssoftware-configurable voltage AQ1 0...10 V DC 470 Ohm 10 bits
Maximum Output Frequency0.599 kHz
Nominal Output Current66.0 A
Surge Protection And Filtering Attributes
- Emc Filter
- without EMC filter
Input Attributes
- Analogue Input Type
- AI1 voltage 0...10 V DC 30 kOhm 10 bits, AI2 bipolar differential voltage +/- 10 V DC 30 kOhm 10 bitsAI3 current 0...20 mA (or 4-20 mA, x-20 mA, 20-x mA or other patterns by configuration) 250 Ohm 10 bits
- Discrete Input Type
- STO safe torque off, 24 V DC1.5 kOhm, DI1...DI6 logic inputs, 24 V DC 30 V), DI5 programmable as pulse input 0-30 kHz, 24 V DC 30 V)
- Discrete Input Number
- 7
Discrete Input Logicpositive logic (source), negative logic (sink)
Analogue Input Number3
Number Of Input Phases3
Loading video…
Accessories
Loading carousel layout...
Loading carousel layout...
Similar Products
Loading carousel layout...
Loading carousel layout...
CAD
$2800.38
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
CAD$2800.38/ EA
Loading add to cart quantity...
