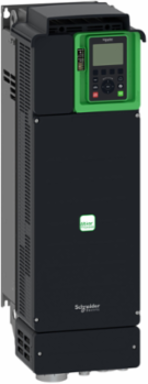

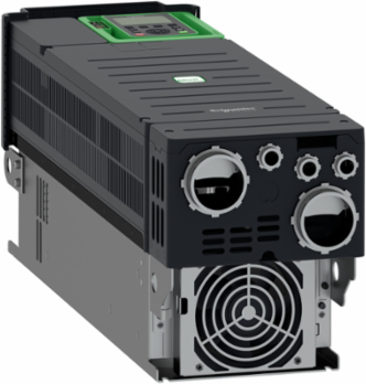

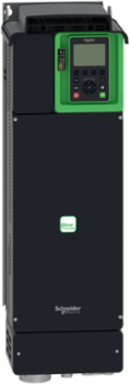

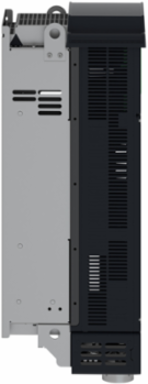

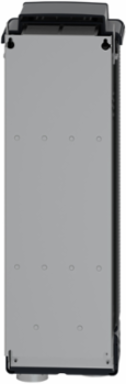

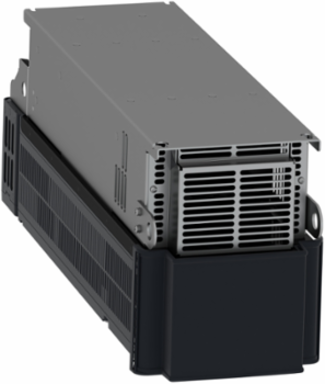

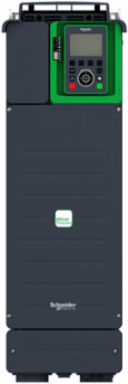

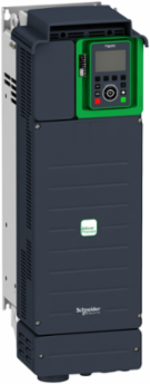

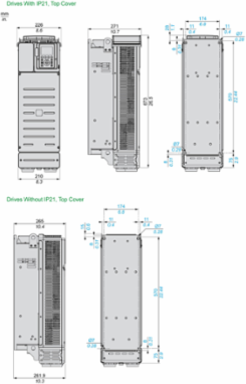

Schneider Electric ATV630D18M3 Variable Speed Drive 18.5kW 25hp 200-240V IP21

MPN: ATV630D18M3
PPN: SCH-ATV630D18M3
UNSPSC: 39122001

If you can't find the product or are unsure which one you need, please use the Product Selector tool below

$4333.06

Available to Order

Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST

Available To Ship Immediately:0

Loading dialog...

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

This Altivar Process ATV600 variable speed drive can feed 3-phase synchronous and asynchronous power motors. It features 3 built-in RJ45 communication ports as standard, 1 Ethernet port, 2 serial ports. It works at a rated supply voltage from 200V to 240V AC. This drive provides up to 30% energy saving when on standby due to the innovative ‘‘Stop and Go’’operation without additional costs. It is suitable for motors with power rating up to 18.5kW / 25hp for applications requiring slight overload (up to 120%). It is suitable for motors with power rating up to 15kW / 20hp for applications requiring significant overload (up to 150%). It weighs 14.2kg and its dimensions are, 226mm wide, 673mm high, 271mm deep. This drive is focused on fluids management processing and energy saving, it offers extensive flexibility in water and wastewater, mining, minerals and metals, oil and gas and food and beverage applications. Accessories (fan kit, graphic display terminal) and options (I/O expansion modules, communication modules, EMC input filters) are available with Altivar Process ATV600 drives, depending on the drive rating. It is designed to be mounted in vertical position (+/- 10 °) on a wall. This new concept of drives meets the major needs of process and utilities in terms of equipment efficiency and total cost of ownership by supporting the energy management, asset management and also the overall performance of the process.

Features

Engineered for 3-phase networks operating between 200V and 240V AC, this industrial inverter delivers up to 25 hp (18.5 kW) under normal duty or 20 hp (15 kW) for heavy-duty applications requiring up to 150% temporary torque overload. This precise power delivery guarantees that your high-capacity pumps, fans, and process machinery maintain consistent operation without tripping your electrical panel during peak loads.
Featuring embedded dual-port Ethernet and Modbus TCP/serial communications directly on the unit via standard RJ45 connectors, this variable speed drive seamlessly communicates with your automation network for real-time remote monitoring and quick system configuration. It also features standard slots for plug-and-play expansion modules including Profibus DP V1, CANopen, and BACnet, resolving compatibility headaches across diverse control architectures.
Built to safeguard your equipment and personnel, the drive integrates an onboard Safe Torque Off (STO) safety function certified up to SIL3 (IEC 61800-5-1), which instantly cuts motor power during emergencies without dropping the control network. Housed in a compact IP21/UL Type 1 wall-mountable enclosure, it carries international certifications from UL, CSA, CE, and ATEX Zone 2/22, ensuring absolute compliance for hazardous industrial environments.

Documentation & Downloads

Specifications

Key Specifications

Country of Origin	United States
Depth	271 mm

Weight	33000 g

Communications & Management Attributes

Communication Port Protocol	Ethernet, Modbus serial, Modbus TCP

Complementary Attributes

Maximum Thdi	<48 % from 80...100 % of load IEC 61000-3-12, <48 % from 80...100 % of load IEC 61000-3-12, <48 % from 80...100 % of load IEC 61000-3-12, <48 % from 80...100 % of load IEC 61000-3-12, <48 % from 80...100 % of load IEC 61000-3-12, <48 % from 80...100 % of load IEC 61000-3-12
Brake Chopper Integrated	false
Maximum Horse Power Rating	25 hp normal duty20 hp heavy duty
Maximum Output Frequency	500 kHz
Maximum Switching Current	relay output R1, R2, R3 inductive, cos phi = 0.4 7 ms 2 A 30 V DCrelay output R1, R2, R3 resistive, cos phi = 1 3 A 250 V ACrelay output R1, R2, R3 resistive, cos phi = 1 3 A 30 V DCrelay output R1, R2, R3 inductive, cos phi = 0.4 7 ms 2 A 250 V AC
Minimum Switching Current	relay output R1, R2, R3 5 mA 24 V DC
Maximum Acceleration Under Shock Impact During Operation	150 m/s² at 11 ms
Maximum Acceleration Under Shock Load During Transport	150 m/s² at 11 ms
Maximum Acceleration Under Vibratory Load During Storage	10 m/s² at 13...200 Hz
Maximum Deflection Under Vibratory Load During Operation	1.5 mm at 2...13 Hz
Maximum Deflection Under Vibratory Load During Transport	1.5 mm at 2...13 Hz

Ue Rated Operational Voltage	200...240 V 18.5 kW 25 hp normal duty, 200...240 V 15 kW 20 hp heavy duty
Maximum Associated Fuse Rating	125.0 A
Maximum Input Current Per Phase	66.7 A
Maximum Output Voltage	240.0 V
Maximum Transient Current	86.2 A 60 s normal duty)95.1 A 60 s heavy duty)
Us Rated Supply Voltage	200...240 V200...240 V - 15...10 %
Maximum Acceleration Under Shock Load During Storage	150 m/s² at 11 ms
Maximum Acceleration Under Vibrational Stress During Operation	10 m/s² at 13...200 Hz
Maximum Acceleration Under Vibratory Load During Transport	10 m/s² at 13...200 Hz
Maximum Deflection Under Vibratory Load During Storage	1.5 mm at 2...13 Hz

Important Information Attributes

Persona Type Ids	EU, OM, OM8, SI
Asynchronous Motor Control Profile	constant torque standard, optimized torque mode, variable torque standard
Discrete And Process Manufacturing	food and beverage processing pumpfood and beverage processing fanwater and waste water electro submersible pump (ESP)water and waste water screw compressorwater and waste water compressor centrifugalwater and waste water fanbuilding - HVAC compressor centrifugalfood and beverage processing other applicationmining mineral and metal fan, mining mineral and metal pump, oil and gas fan, water and waste water other application, building - HVAC screw compressor, food and beverage processing atomization, oil and gas electro submersible pump (ESP), oil and gas water injection pump, oil and gas jet fuel pump, oil and gas compressor for refinery, water and waste water centrifuge pump, water and waste water positive displacement pump, water and waste water screw pump, water and waste water lobe compressor, water and waste water conveyor, water and waste water mixer
Electromagnetic Compatibility	electrostatic discharge immunity test level 3 conforming to IEC 61000-4-2radiated radio-frequency electromagnetic field immunity test level 3 conforming to IEC 61000-4-3, electrical fast transient/burst immunity test level 4 conforming to IEC 61000-4-41.2/50 µs - 8/20 µs surge immunity test level 3 conforming to IEC 61000-4-5conducted radio-frequency immunity test level 3 conforming to IEC 61000-4-6
Line Current	66.7 A 200 V normal duty)54.5 A 240 V normal duty)53.1 A 200 V heavy duty), 44.9 A 240 V heavy duty)
Local Signalling	3 LEDs for local diagnostic3 LEDs (dual colour) for embedded communication status4 LEDs (dual colour) for communication module status, 1 LED (red) for presence of voltage
Noise Level	86/188/EEC, 63.5 dB
Product Destination	asynchronous motors, synchronous motors
Sampling Duration	2 ms +/- 0.5 ms DI1...DI4) - discrete input, 5 ms +/- 1 ms DI5, DI6) - discrete input, 5 ms +/- 0.1 ms AI1, AI2, AI3) - analog input, 10 ms +/- 1 ms AO1) - analog output
Synchronous Motor Control Profile	permanent magnet motor, synchronous reluctance motor
Certificate Agency	CSA, DNV-GL, UL, TÜV, ATEX zone 2/22, ATEX INERIS
Environmental Class During Transport	class 2C3 according to EN 60721-3-2, class 2S1 according to EN 60721-3-2
Carbon Footprint Of The End Of Life Phase C1 To C4	36.54357310830847, 37 kg CO2 eq.
Carbon Footprint Of The Manufacturing Phase A1 To A3	265 kg CO2 eq., 264.9780214757929
Local Data Status	Publishable
Return Indicator	Y
Serviceability	Yes
Field Service Division	IDIBS
Average Percentage Of Asi Certified Metals	96 %
Weee Scope	In
Scope Perimeter	At least in Europe
End Of Life Doc Ref	ENVEOLI1411001EN
Reach Full Compliance Status Id	CONTAINS_SVHC
Rohs Eur In Scope	No
Rohs Eur Conformity Date	1922
China Rohs In Scope	Yes
With Recycled Cardboard	Yes
Product Contributes To Saved And Avoided Emissions	YES_SSI2Yes
Tier Id	1
Function Option Id	ADVANCED
Market Segmentation Id	INDUSTRIAL
Product Kit Identifier	N
4 Quadrant Operation Possible	false
Application In Domestic And Commercial Area Permitted	false
Base Load Current At High Overload	63.4 A
Braking To Standstill	by DC injection
Computer Port	true
Design Of Frequency Changer	U converter
Emc Filter	without EMC filter
Exchange Mode	half duplex, full duplex, autonegotiation Ethernet/Modbus TCP
Functionality	full
Isolation	between power and control terminals
Method Of Access	slave Modbus TCP
Motor Starter Type	variable speed drive
Network Frequency	50-60 Hz
Number Of Addresses	1-247 Modbus serial
Number Of Hw Interfaces Serial Rs485	1
Operating Element Present	true
Optical Interface Present	false
Permissible Temporary Current Boost	1.1 x In 60 s normal duty)1.5 x In 60 s heavy duty)
Power Dissipation In W	natural convection 97 W 200 V 4 kHzforced convection 595 W 200 V 4 kHz
Power Loss Static Current Independent	28.0 W
Product Availability	Stock - Normally stocked in distribution facility
Product Specific Application	process and utilities
Quantity Per Set	1
Refresh Time	relay output R1, R2, R3)5 ms +/- 0.5 ms)
Relative Symmetric Mains Voltage Tolerance	10 %
Returnability	Yes
Shock Resistance	15 gn 11 ms IEC 60068-2-27
Specific Application	utility
Supporting Protocol For Asi	false
Supporting Protocol For Can	true
Supporting Protocol For Devicenet Safety	false
Supporting Protocol For Interbus	false
Supporting Protocol For Lon	false
Supporting Protocol For Other Bus Systems	false
Supporting Protocol For Profinet Cba	true
Supporting Protocol For Profisafe	false
Supporting Protocol For Sercos	false
Sustainable Packaging	No
Total Lifecycle Carbon Footprint	8 994 kg CO2 eq.
Type Of Cooling	forced convection
Updatability	Upgradeable through digital modules
Volume Of Cooling Air	240 m3/h
With Safety Function Safe Programmable Logic	false
Motor Power Kw 18 N Motor Power Kw	15 kW
Data Source	extrapolated product
Width Nominal	226 mm
Supporting Protocol For Tcp/Ip	true
Customs Code	8504404000
Permitted Relative Humidity During Transport	class 2K5 according to EN 60721-3
Supporting Protocol For Data Highway	false
With Safety Function Safe Brake Management Sbc/Sbt	false
With Safety Function Safe Operating Stop Sos	false
With Safety Function Safe Speed Monitor Ssm	false
With Safety Function Safe Torque Off Sto	true
With Safety Function Safely Limited Speed Sls	false
Warranty In Months	18
Functional Unit Description	To adapt the speed and torque of synchronous, asynchronous or reluctance motor to the machine's operating point for 45 kW for heavy duty electric motors for fluid management and industrial applications in IP21/UL type 1 conditions, at 380V to 480V rated 3-phases voltage supply. Calculation of the environmental impacts is based on 10 years of product service lifetime. The usage profile taken into account is 6% uptime in full phase, 15% uptime in medium high phase, 35% uptime in medium low phase and 44% uptime in low phase of the 5000h operating time and 1000h of standby according to the CEMEP guide: pump/fan/compressor.
Functional Unit Unit	unit
Recyclability Potential In %	85

Persona Type Names	End User, Original Equipment Manufacturer, OEM - Control Panelbuilder, System Integrator
Connector Type	RJ45 on the remote graphic terminal)Ethernet/Modbus TCP, RJ45 on the remote graphic terminal)Modbus serial
Electrical Connection	control removable screw terminals 0.5...1.5 mm² 20 AWG...16 AWGline side screw terminal 35...50 mm² 3 AWG...1 AWG, motor screw terminal 35...50 mm² 3 AWG...1 AWG
Insulation Resistance	> 1 MOhm 500 V DC for 1 minute to earth, > 1 MOhm 500 V DC for 1 minute to earth> 1 MOhm 500 V DC for 1 minute to earth, > 1 MOhm 500 V DC for 1 minute to earth
Linearity Error	AI1, AI2, AI3 +/- 0.15 % of maximum value analog input, AO1, AO2 +/- 0.2 % analog output
Motor Slip Compensation	adjustable, can be suppressed, not available in permanent magnet motor law, automatic whatever the load
Option Card	slot A communication module, Profibus DP V1, slot A communication module, PROFINET, slot A communication module, DeviceNet, slot A communication module, Modbus TCP/EtherNet/IPslot A communication module, CANopen daisy chain RJ45slot A communication module, CANopen SUB-D 9, slot A communication module, CANopen screw terminalsslot A/slot B digital and analog I/O extension module, slot A/slot B output relay extension module, slot A communication module, Ethernet IP/Modbus TCP/MD-Link, communication module, BACnet MS/TP, communication module, Ethernet Powerlink
Protection Type	safe torque off drivemotor phase break drive, thermal protection motor, safe torque off motor, motor phase break motor, thermal protection drive, overheating drive, overcurrent between output phases and earth drive, overload of output voltage drive, short-circuit protection drive, overvoltages on the DC bus drive, line supply overvoltage drive, line supply undervoltage drive, line supply phase loss drive, overspeed drive, break on the control circuit drive
Supply	external supply for digital inputs 24 V DC 19-30 V), <1.25 mA overload and short-circuit protectioninternal supply for reference potentiometer (1 to 10 kOhm) 10.5 V DC +/- 5 %, <10 mA overload and short-circuit protection, internal supply for digital inputs and STO 24 V DC 21-27 V), <200 mA overload and short-circuit protection
Transmission Rate	10, 100 Mbits, 4800 bps, 9600 bps, 19200 bps, 38.4 Kbps
Environmental Class During Storage	class 1C3 according to EN 60721-3-1, class 1S2 according to EN 60721-3-1
Carbon Footprint Of The Distribution Phase A4	6.051490684700442, 6 kg CO2 eq.
Carbon Footprint Of The Installation Phase A5	9 kg CO2 eq., 9.245309521370386
Carbon Footprint Of The Use Phase B2 B3 B4 B6	8 677 kg CO2 eq., 8677.237753861406
Local Publishable Date	2026-03-26
Device Type	Variable speed drive - VSD Compacts
Traceability	Yes
Average Life Duration	10 year(s)
Weee Applicability	Finished product
Weee Product Category	4
Eoli Availability Display	Yes
Reach Full Compliance Status	Reference contains Substances of Very High Concern above the threshold
Reach Compliance Directive	Reference contains Substances of Very High Concern above the threshold
Rohs Eur Status	Compliant By Exemption
Rohs Eur Full Compliance Status	Compliant By Exemption
China Rohs Label	5
Without Single Use Plastic	No
Dangerous Goods Code	LITHIUM METAL BATTERIES IN EQUIP. BUTTON CELL-BAT EXEMPT
Tier	1
Function Option	Advanced
Market Segmentation	Industrial
1 Phase Low Current Possible	false
Apparent Power	22.7 kVA 240 V normal duty)18.7 kVA 240 V heavy duty)
Average Percentage Of Recycled Plastic Content	1 %
Base Load Current At Low Overload	78.4 A
Capacity Of Dc Link	4920.0 µF
Data Format	8 bits, configurable odd, even or no parity
Device Short Name	ATV630
Enclosure Mounting	wall mounted
Frequency Resolution	display unit 0.1 Hzanalog input 0.012/50 Hz
Housing Material	plastic
Marking	CE
Motor Power Kw	18.5 kW normal duty)15 kW heavy duty)
Mounting Mode	wall mount
Nominal Switching Frequency	4 kHz
Number Of Hw Interfaces Industrial Ethernet	1
Number Of Output Phases	3
Operating Position	vertical +/- 10 degree
Overvoltage Category	III
Phase	3 phase
Power Loss Per Device Current Dependent	860.0 W
Power Range	15-25 kW 200-240 V 3 phase
Product Or Component Type	variable speed drive
Prospective Line Isc	50 kA
Range Of Product	Altivar Process ATV600
Regulation Loop	adjustable PID regulator
Relative Symmetric Network Frequency Tolerance	5 %
Safety Function	STO (safe torque off) SIL 3
Software Version	v6.2.5-6
Supply Frequency	50...60 Hz - 5...5 %
Supporting Protocol For Bacnet	false
Supporting Protocol For Devicenet	false
Supporting Protocol For Foundation Fieldbus	false
Supporting Protocol For Knx	false
Supporting Protocol For Modbus	true
Supporting Protocol For Profibus	true
Supporting Protocol For Profinet Io	true
Supporting Protocol For Safetybus P	false
Supporting Protocol For Suconet	false
Switching Frequency	2...12 kHz adjustable4...12 kHz with derating factor
Transmission Frame	RTU
Type Of Polarization	no impedance
Vibration Resistance	1.5 mm peak to peak (f= 2-13 Hz) conforming to IEC 60068-2-61 gn (f= 13-200 Hz) conforming to IEC 60068-2-6
Weee Label	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Application In Industrial Area Permitted	true
Database Version	2024-01
Height Nominal	673 mm
Supporting Protocol For Ethernet/Ip	true
Nbr. Of Units In Pkg.	1
Emc Limit Value Complied	false
Supporting Protocol For As Interface Safety At Work	false
Supporting Protocol For Interbus Safety	false
With Safety Function Safe Direction Sdi	false
With Safety Function Safe Position Sp	false
With Safety Function Safe Stop 1 Ss1	false
With Safety Function Safely Limited Position Slp	false
With Sft Fct Safe Stop 2 Ss	false
Packaging Weight In G	6956.6
Functional Unit Quantity	1
Reference Lifetime In Y	10

Environment Attributes Main

Ambient Air Temperature For Operation	-15-50 °C (without derating), -15-50 °C (without derating), -15-60 °C, -15-60 °C, -15-50 °C (without derating), -15-50 °C (without derating)50-60 °C (with derating factor)
Ambient Air Transport Temperature	-40-70 °C, -40-70 °C
Operating Altitude	<= 3280.84 ft (1000 m) without derating, <= 3280.84 ft (1000 m) without derating<= 3280.84 ft (1000 m) without derating, <= 3280.84 ft (1000 m) without derating1000...4800 m with current derating 1 % per 100 m
Take Back	No
China Rohs Regulation	X
Carbon Footprint	8994.056148651578
Environmental Disclosure	ENVPEP1411001EN
Nema Degree Of Protection	NEMA 1
Packaging Without Single Use Plastic	No
Relative Humidity	5-95 % without condensation IEC 60068-2-3
Pep Verification Date	2025-11-01
Psr Version	PSR-0005-ed3.1-EN-2023 12 08
Permitted Relative Humidity During Operation	class 3K5 according to EN 60721-3

Ambient Air Temperature For Storage	-40-70 °C, -40-70 °C
Ip Degree Of Protection	IP21IP21IEC 61800-5-1, IP21IEC 60529
Environmental Class During Operation	class 3C3 according to IEC 60721-3-3, class 3S3 according to IEC 60721-3-3
Recycled Metal Content At Cr Level	0 %
Mercury Free	Yes
Circularity Profile	ENVEOLI1411001EN
Eu Rohs Directive	Compliant By Exemption
Packaging Made With Recycled Cardboard	Yes
Reach Regulation	Reference contains Substances of Very High Concern above the threshold
Pep Code	ENVPEP1411001EN
Pcr Version	PEP-PCR-ed4-2021 09 06
Type Of Verification For The Pep	Independent external review
Permitted Relative Humidity During Storage	class 1K5 according to EN 60721-3

General Attributes

Phase	3 phase
Range Of Product	Altivar Process ATV600

Product Or Component Type	variable speed drive

ETIM

ETIM 8	EC001857
ETIM 10	EC001857

ETIM 9	EC001857

Output Attributes

Analogue Output Type	software-configurable voltage AQ1, AQ2 0...10 V DC 470 Ohm 10 bitssoftware-configurable current AQ1, AQ2 0...20 mA 10 bitssoftware-configurable current DQ-, DQ+ 30 V DC, software-configurable current DQ-, DQ+ 100 mA
Output Voltage	<= power supply voltage, <= power supply voltage
Analogue Output Number	2
Discrete Output Number	0
Nominal Output Power	18.5 kW
Speed Drive Output Frequency	0.1-500 Hz

Discrete Output Type	relay outputs R2A, R2C 30 V DC 5000 mArelay outputs R3A, R3C 30 V DC 5000 mArelay outputs R1A, R1B, R1C 250 V AC 3000 mArelay outputs R1A, R1B, R1C 30 V DC 3000 mArelay outputs R2A, R2C 250 V AC 5000 mA, relay outputs R3A, R3C 250 V AC 5000 mA
Relay Output Type	configurable relay logic R1 fault relay NO/NC 100000 cycles, configurable relay logic R2 sequence relay NO 100000 cycles, configurable relay logic R3 sequence relay NO 100000 cycles
Continuous Output Current	78.4 A 4 kHz normal duty63.4 A 4 kHz heavy duty
Nominal Output Current	78.4 A
Relay Output Number	3

Input Attributes

Analogue Input Type	AI1, AI2, AI3 software-configurable voltage 0...10 V DC 31.5 kOhm 12 bits, AI1, AI2, AI3 software-configurable current 0...20 mA 250 Ohm 12 bits, AI2 voltage analog input - 10...10 V DC 31.5 kOhm 12 bits
Input Compatibility	DI1...DI6 discrete input level 1 PLC IEC 61131-2DI5, DI6 discrete input level 1 PLC IEC 65A-68, STOA, STOB discrete input level 1 PLC IEC 61131-2
Discrete Input Number	8
Number Of Input Phases	3

Discrete Input Logic	positive logic (source) DI1...DI8), < 5 V, > 11 V, negative logic (sink) DI1...DI8), > 16 V, < 10 V, 16 preset speeds
Analogue Input Number	3
Discrete Input Type	DI7, DI8 programmable as pulse input 0-30 kHz, 24 V DC <= 30 V)
