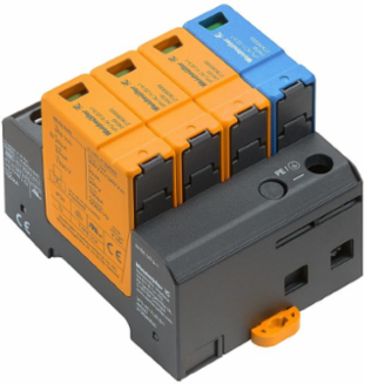

Weidmuller 2736360000 VPU AC II US 3+1 240/50
- MPN: 2736360000
- PPN: WDM-2736360000
CAD
$733.27
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
VPU AC II US 3+1 240/50
Documentation & Downloads
Specifications
Additional
- Rated Voltage
- 240 V AC
- Rated Current
- 20 kA
- Discharge Current In (N-PE)
- 40 kA
- Number of Poles
- 4
- Depth Including DIN Rail
- 76 mm
- Operating Temperature Range
- -40 °C to 85 °C
- Humidity Range
- 5 - 95% RH
- Connection Cross-section Range mm²
- 1.5 mm² - 35 mm²
- Tightening Torque
- 3 Nm - 4.5 Nm
- Mounting Rail
- TS 35
- Surge Voltage Category
- III
- Flammability Rating
- UL 94 V-0
SCCR150 kA
Discharge Current Imax (N-PE)65 kA
Discharge Current In (wire-PE)20 kA
Dimensions (W x H x D)72 mm x 90 mm x 68 mm
Weight446 g
Storage Temperature Range-40 °C to 85 °C
Connection Cross-section Range AWGAWG 14 - AWG 6
Stripping Length18 mm
Protection DegreeIP20
ComplianceRoHS Compliant, UL Listed (cULus Certificate E354261)
Pollution Severity2
Warranty5 Years
