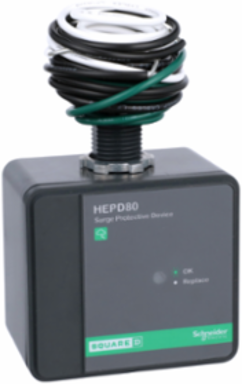

Schneider Electric HEPD80C Surge Protection Device, 120/240 V AC, 80 kA, NEMA 4X, 3-Wire
- MPN: HEPD80C
- UPC: 785901112839
- PPN: SCH-HEPD80C
CAD
$231.49
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
HEPD whole house devices are designed to deliver AC surge protection for the entire AC power system in a home. HEPDs are compact in size and are designed to protect AC wires in the home from surges that could affect home electronics and appliances not connected to surge strips. For use on 120/240 VAC single phase, 3 wire systems with an isolated ground. This device provides 25 kA of short circuit protection and 80 kA of surge protection per phase and comes in consumer package. The surge protection device is in a NEMA 4X housing. The surge protection device is CSA rated. This product comes with an 5 years warranty.
Features
- Designed as a Type 1 and Type 2 Surge Protective Device (SPD), the HEPD80C provides a primary line of defense for the entire electrical system, not just a single outlet. With an 80kA surge current capacity, it intercepts high-voltage transients from lightning and utility switching before they can reach and destroy sensitive appliances, smart home devices, and expensive HVAC control boards.
- Housed in a rugged, weather-resistant NEMA 4X rated enclosure, this unit is engineered for both indoor and outdoor installation flexibility. Whether mounted directly to your service entrance or inside a garage load center, the durable casing protects internal components from rain, dust, and corrosion, ensuring long-term reliability for residential and light commercial property owner
- While optimized for Square D panels, this versatile device features a universal design that allows it to be hardwired into any brand of electrical distribution panel via a two-pole circuit breaker. This makes it an ideal "one-size-fits-all" solution for contractors and homeowners looking to upgrade the surge resilience of existing infrastructure without needing to replace the entire panelboard.
- Equipped with clear, high-visibility LED status lights, this device provides at-a-glance confirmation that your property is being actively shielded. If the light goes out, it signals that the internal Metal Oxide Varistors (MOVs) have sacrificed themselves to block a major surge and the unit requires replacement, ensuring you are never left unknowingly vulnerable to the next electrical event.
- Tested to the rigorous UL 1449 4th Edition standards, the HEPD80C offers a low Voltage Protection Rating (VPR), which ensures that "let-through" voltage remains at a safe level for modern electronics. This professional-grade rating provides peace of mind that your home meets the highest current safety codes for transient voltage surge suppression.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Mexico, United States

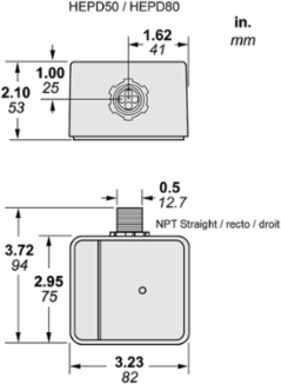

Depth2.10 in
Physical Attributes
- Cable Length
- 34 in
Important Information Attributes
- Persona Type Ids
- EU, EUA, LC, SC
- Certificate Agency
- CSA C22.2, cUL, UL 1449:ed. 3: type I
- Local Publishable Date
- 2026-06-28
- Stocking Flag
- Y
- Device Type
- Surge Protection and Power Conditioning - Surge Protection Devices
- Traceability
- No
- Weee Product Category
- 5
- Rohs Eur In Scope
- Yes
- Rohs Eur Conformity Date
- 2208
- China Rohs In Scope
- No
- Without Single Use Plastic
- No
- Tier Id
- 1
- Function Option Id
- STANDARD
- Market Segmentation Id
- RESIDENTIAL
- Product Kit Identifier
- N
- Local Signalling
- 1 LED green normal operation
- Phase
- 1 phase
- Product Destination
- load center
- Range Of Product
- Square D
- Sustainable Packaging
- No

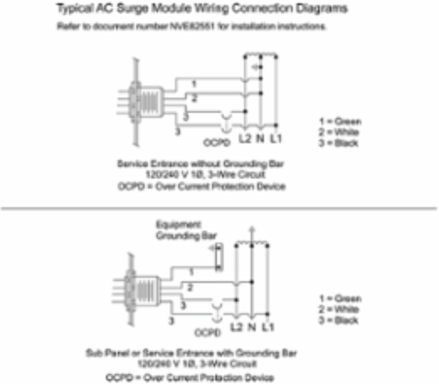

- Wiring Configuration
- 3-wire (isolated ground)
- Width Nominal
- 3.72 in
- [Ue] Rated Operational Voltage
- 120/240 V AC
- Short-circuit Protection
- 25 kA
- Package Weight(Lbs)
- 480.808 g
- Warranty (In Months)
- 18
Persona Type NamesEnd User, Consumer, Contractor, Electrician
Local Data StatusPublishable
Return IndicatorY
Stock Policy2
ServiceabilityNo
Weee ScopeIn
Scope PerimeterOutside of Europe
Rohs Eur StatusCompliant By Exemption
Rohs Eur Full Compliance StatusCompliant By Exemption
With Recycled CardboardNo
Product Contributes To Saved And Avoided EmissionsNo
Tier1
Function OptionStandard
Market SegmentationResidential
Device Short NameHEPD
Nominal Discharge Current10 kA
Product AvailabilityNon-Stock - Not normally stocked in distribution facility
Product Or Component Typesurge protection device
ReturnabilityYes
Type Of Packingconsumer packaging
Height Nominal3.23 in
[Uc] Maximum Continuous Operating Voltage150 V
Connections - Terminalswire 14 AWG
Nbr. Of Units In Pkg.1
Take-backNo
Customs Code8536308000
Environment Attributes Main
- China Rohs Regulation
- Product out of China RoHS scope , Product out of China RoHS scope. Substance declaration for your information.
- Take Back
- No
- Eu Rohs Directive
- Compliant By Exemption
- Packaging Made With Recycled Cardboard
- No
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
Ambient Air Temperature For Operation-35-65 °C, -35-65 °C
Mercury FreeYes
Nema Degree Of ProtectionNEMA 4X
Packaging Without Single Use PlasticNo
General Attributes
- Phase
- 1 phase
- Range Of Product
- Square D
Product Or Component Typesurge protection device
Surge Protection And Filtering Attributes
- Surge Current
- 80 kA per phase
Input Attributes
- Input Voltage
- 600 V L-N, 600 V L - G1000 V L - L900 V N - G
