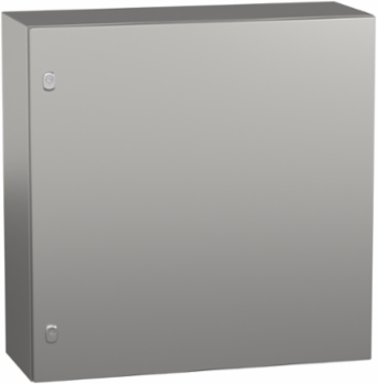

Schneider Electric NSYS3X8830H Spacial S3X Wall Mounted Enclosure, 800x800x300mm, IP66, Stainless Steel 316L
- MPN: NSYS3X8830H
- PPN: SCH-NSYS3X8830H
CAD
$3943.03
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
The Schneider Electric NSYS3X8830H Spacial S3X Wall Mounted Enclosure is expertly crafted for environments that demand high levels of durability and protection. Constructed from premium stainless steel 316L, this enclosure boasts an IP66 rating, ensuring it is impervious to dust and can withstand powerful water jets, making it ideal for outdoor use or in harsh industrial settings. With dimensions of 800x800x300mm, it provides ample space for equipment while maintaining a compact profile, allowing for efficient wall-mounted installation. This enclosure not only safeguards valuable electrical components but also enhances the overall safety and efficiency of your power distribution system.
Documentation & Downloads
Specifications
Additional
- Enclosure Type
- Multi-purpose
- Lock Type
- 2 points lock, 3 mm double-bar
- Nominal Width
- 800 mm (31.50 in)
- Installation Accessory Type
- Wall-mounting
- Door Type
- Plain (solid)
- Door Opening Side
- Reversible 120°
- Type of Gland Plate
- Without gland plate
- Removable Parts
- Door by hinges
- Surface Finish
- Scotch-Brite® brushed body and door, chromium plated lock
- Standards
- IEC 62208
- IP Degree of Protection
- IP66 IEC 60529
- Environmental Characteristic
- Specific hygiene, Corrosive
- Sustainable Offer Status
- Green Premium product
- Warranty
- 18 months
Product Or Component TypeCompact enclosure
Nominal Height800 mm (31.50 in)
Nominal Depth300 mm (11.81 in)
Body TypeSingle piece body, cross-shaped structure, gutter shaped front rail
Number of Doors1 front face
Mounting Plate DescriptionWithout mounting plate
Accessibility for OperationFront
MaterialBody and door: Stainless steel 316L; Lock: Zamak; Hinge: Stainless steel
Net Weight32 kg (70.55 lb)
Product CertificationsUL 508 type A, CAN/CSA 22
IK Degree of ProtectionIK10 IEC 62262
Country of OriginFrance
Mercury FreeYes
