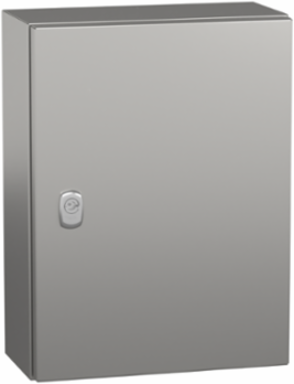

Wall Mounted Enclosure, Stainless Steel 304L, 400x300x150mm, IP66
Schneider Electric

Schneider Electric NSYS3X4315 Wall Mounted Enclosure, Stainless Steel 304L, 400x300x150mm, IP66

  • MPN: NSYS3X4315
  • PPN: SCH-NSYS3X4315
  • If you can't find the product or are unsure which one you need, please use the Product Selector tool below

    • CAD

    $696.95

    / EA

    Available to Order

    Lead times may vary. For an accurate estimate please contact us.

    Available To Ship Immediately:0

    Loading dialog...

    Looking to buy a large quantity?

    To View Branch Inventory And Your Custom Pricing

    Spec sheet

    Description

    Spacial S3X compact steel enclosure with plain front door. 400 x 300 x 150 mm. Multi-purpose. Installation in wall-mounting. Gutter shaped front rail, single piece body with cross shaped structure. Without mounting plate. Handle double bar 3mm. Body and door stainless steel 304L. Protection IP 55, IK10. Enclosure Scotch-Brite® brushed finish.

    Documentation & Downloads

    Specifications

    Key Specifications

    Installation Accessory Type
    wall-mounting
    Product Name
    Spacial S3X
    Enclosure Nominal Height
    400 mm
    Enclosure Nominal Depth
    150 mm
    Enclosure Nominal Width
    300 mm
    Product Or Component Typecompact enclosure
    Device Composition1 body || 1 lock door || 1 door
    RangeSpacial
    Device Applicationmulti-purpose

    Complementary

    Accessibility For Operation
    front
    Type Of Gland Plate
    without gland plate
    Lock Type
    3 mm double-bar lock
    Door Opening Side
    reversible 120 °)
    Material
    body and door stainless steel 304L || lock zamak || hinge stainless steel
    Door Type
    plain
    Removable Partsdoor by hinges
    Body Typesingle piece body, cross-shaped structure || gutter shaped front rail
    Net Weight5 kg
    Number Of Doorsfront face 1
    Surface Finishbody and door Scotch-Brite® brushed || lock chromium plated
    Mounting Plate Descriptionwithout mounting plate

    Environment

    Product Certifications
    UL 508 type A || CAN/CSA 22
    Standards
    IEC 62208
    Ip Degree Of Protection
    IP66 IEC 60529
    Ik Degree Of ProtectionIK10 IEC 62262
    Environmental Characteristiccorrosive || specific hygiene

    Contractual warranty

    Warranty
    18 months

    Offer Sustainability

    Rohs Exemption Information
    Yes
    Environmental Disclosure
    ENVPEP2109018EN
    Reach Regulation
    Reference contains Substances of Very High Concern above the threshold
    Circularity Profile
    N/A
    Mercury FreeYes
    Sustainable Offer StatusGreen Premium product
    China Rohs RegulationProduct out of China RoHS scope. Substance declaration for your information
    Eu Rohs DirectivePro-active compliance (Product out of EU RoHS legal scope)
