Spacial S3X Wall Mounted Enclosure 400x400x200 mm Stainless Steel IP66
Schneider Electric

Schneider Electric NSYS3X4420 Spacial S3X Wall Mounted Enclosure 400x400x200 mm Stainless Steel IP66

  • MPN: NSYS3X4420
  • PPN: SCH-NSYS3X4420
  • If you can't find the product or are unsure which one you need, please use the Product Selector tool below

    • CAD

    $791.94

    / EA

    Available to Order

    Lead times may vary. For an accurate estimate please contact us.

    Available To Ship Immediately:0

    Loading dialog...

    Looking to buy a large quantity?

    To View Branch Inventory And Your Custom Pricing

    Spec sheet

    Description

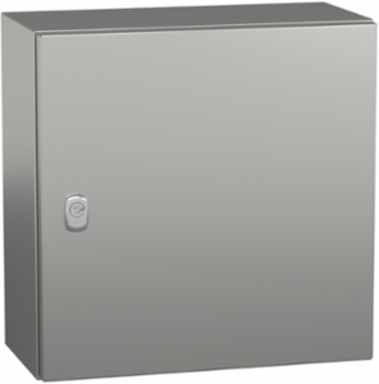

    The Schneider Electric NSYS3X4420 Spacial S3X Wall Mounted Enclosure is expertly crafted to offer reliable protection for your electrical components. With its robust stainless steel construction and IP66 rating, this enclosure ensures resistance to dust and water ingress, making it suitable for demanding environments. Measuring 400x400x200 mm, it provides ample space for housing various electrical devices securely. Ideal for wall-mounted applications, this enclosure combines functionality with durability, ensuring that your equipment remains safeguarded against the elements.

    Documentation & Downloads

    Specifications

    Additional

    Enclosure Type
    Multi-purpose
    Nominal Height
    400 mm (15.75 in.)
    Nominal Depth
    200 mm (7.87 in.)
    Device Composition
    1 body, 1 lock door, 1 door
    Door Type
    Plain solid
    Door Opening Side
    Reversible 120°
    Mounting Plate
    Without mounting plate
    Accessibility for Operation
    Front
    Material
    Stainless steel 304L (body and door), Zamak lock, Stainless steel hinge
    Net Weight
    6.698 kg (14.77 lb)
    Product Certifications
    CAN/CSA 22, UL 508 type A
    IK Degree of Protection
    IK10 IEC 62262
    Country of Origin
    Bulgaria
    Product Or Component TypeCompact enclosure
    Nominal Width400 mm (15.75 in.)
    Installation Accessory TypeWall-mounting
    Body TypeSingle piece body, cross-shaped structure, gutter shaped front rail
    Number of Doors1 front face
    Lock Type3 mm double-bar lock
    Gland PlateWithout gland plate
    Removable PartsDoor by hinges
    Surface FinishScotch-Brite® brushed body and door, Chromium plated lock
    StandardsIEC 62208
    IP Degree of ProtectionIP66 IEC 60529
    Environmental CharacteristicSpecific hygiene, Corrosive
