Schneider Electric NSYS3X12830H Wall Mounted Enclosure 1200x800x300mm Stainless Steel 316L IP66
- MPN: NSYS3X12830H
- PPN: SCH-NSYS3X12830H
CAD
$4293.43
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description

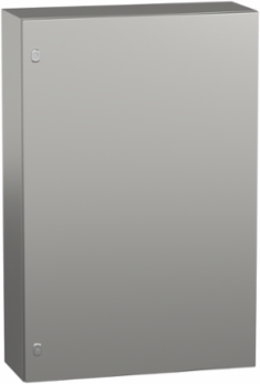

This wall-mounted enclosure by Schneider Electric is expertly crafted from durable stainless steel 316L, making it ideal for a variety of industrial applications. With its generous dimensions of 1200x800x300mm, it provides ample space for housing electrical components while ensuring protection against dust and water ingress thanks to its IP66 rating. Designed for reliability and security, this enclosure is perfect for installations that require a robust and weather-resistant solution, making it a dependable choice in demanding environments.
Documentation & Downloads
Specifications
Additional
- Material
- Lock zamak, hinge stainless steel, body and door stainless steel 316L
- Enclosure Nominal Width
- 800 mm (31.50 in)
- Net Weight
- 44 kg (97 lb)
- Body Type
- Single piece body, cross-shaped structure, gutter shaped front rail
- IK Degree of Protection
- IK10 IEC 62262
- Number of Doors
- 1 front face
- Lock Type
- 2 points lock, 3 mm double-bar
- Standards
- IEC 62208
- Environmental Characteristic
- Corrosive, specific hygiene
Enclosure Nominal Height1200 mm (47.24 in)
Enclosure Nominal Depth300 mm (11.81 in)
Mounting TypeWall-mounted
IP Degree of ProtectionIP66 IEC 60529
Door TypePlain (solid)
Door Opening SideReversible 120°
Surface FinishBody and door Scotch-Brite® brushed, lock chromium plated
Product CertificationsUL 508 type A, CAN/CSA 22
Warranty18 months
