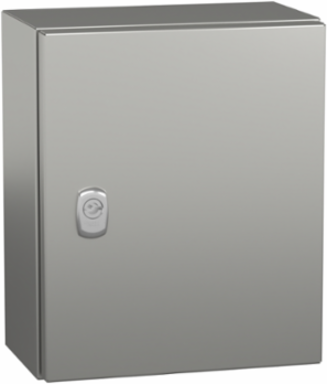

Wall Mounted Enclosure, Spacial S3X, IP66, 300x250x150mm, Stainless Steel 304L
Schneider Electric

Schneider Electric NSYS3X302515 Wall Mounted Enclosure, Spacial S3X, IP66, 300x250x150mm, Stainless Steel 304L

  • MPN: NSYS3X302515
  • PPN: SCH-NSYS3X302515
  • If you can't find the product or are unsure which one you need, please use the Product Selector tool below

    • CAD

    $560.91

    / EA

    Available to Order

    Lead times may vary. For an accurate estimate please contact us.

    Available To Ship Immediately:0

    Loading dialog...

    Looking to buy a large quantity?

    To View Branch Inventory And Your Custom Pricing

    Spec sheet

    Description

    Engineered for robustness and reliability, this wall-mounted enclosure from Schneider Electric is part of the Spacial S3X series, providing excellent protection for electrical components in demanding environments. Constructed from high-quality stainless steel 304L, it is designed to withstand harsh conditions while maintaining an IP66 rating, ensuring resistance against dust and water ingress. With a size of 300x250x150mm, this enclosure not only supports efficient organization of electrical equipment but also contributes to overall safety and durability in your installation.

    Documentation & Downloads

    Specifications

    Additional

    IP Degree of Protection
    IP66 IEC 60529
    Enclosure Nominal Height
    300 mm (11.81 in)
    Enclosure Nominal Depth
    150 mm (5.91 in)
    Installation Accessory Type
    Wall-mounting
    Lock Type
    3 mm double-bar lock
    Number of Doors
    1 front face
    Material
    Body and door stainless steel 304L; lock zamak; hinge stainless steel
    Standards
    IEC 62208
    Environmental Characteristic
    Specific hygiene, Corrosive
    Country of Origin
    BG
    IK Degree of ProtectionIK10 IEC 62262
    Enclosure Nominal Width250 mm (9.84 in)
    Weight3.53 kg (7.78 lb)
    Body TypeSingle piece body, cross-shaped structure, gutter shaped front rail
    Door TypePlain solid
    Door Opening SideReversible 120°
    Surface FinishBody and door Scotch-Brite® brushed; lock chromium plated
    Product CertificationsUL 508 type A, CAN/CSA 22
    ComplianceRoHS, REACh, Mercury free, China RoHS
    Warranty18 months
