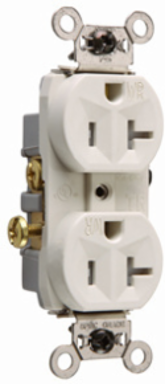

Pass & Seymour WR20TRLA 20A 125V Weather-Resistant Tamper-Resistant Duplex Receptacle, Light Almond 2.635 Inch Height
- MPN: WR20TRLA
- UPC: 785007242560
- PPN: P-S-WR20TRLA
- UNSPSC: 39121406
CAD
$18.75
/ EA
Available to Order from Manufacturer
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
20A 125V Weather-Resistant Tamper-Resistant Duplex Receptacle, Light Almond 2.635 Inch Height
Features
- Auto-ground clip assures positive ground.
- Zinc-plated steel mounting screws for greater ease of installation and removal in wet or damp locations.
- Strap tabs wrap around face to prevent strap from separating from face and back body.
- Tri-drive brass terminal screws. Internal screwpressure plate back and side wire capability. Two back wire holes for more wiring flexibility.
- Heavy-duty, brass strap for added strength and ground conductivity.
- Two drive screws anchor strap to backbody and face where abrupt removal torque is strongest.
- Easily accessed break-off, line-contact connecting tab for fast, easy split-circuit wiring.
- .032 inch thick brass triple-wipe power contacts for lasting retention.
- Temperature Rise: Maximum 30°C temperature rise at full-rated current after 50 cycles of overload at 150% of rated current with direct current. Operating Temperature: Maximum continuous +50°C, minimum -40°C without impact
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | Mexico |
|---|---|
| Height | 2.635 in |
| Color | Light Almond |
| Amperage | 20.0 A |
| Number of Poles | Double Pole |
| Number of Receptacles | 2.0 |
| Environmental Conditions | Flammability: UL94 V2 |
| Dielectric Strength | Withstands 1500V minimum |
| Number of Wires | 3.0 |
| Is Tamper-Resistant | Yes |
| Wall Plate Included | No |
| Operating Temperature | -40°-60°C |
| Wire Connection Type | Internal Pressure Plates; Screw Terminals |
| Operating Temperature Min | -40.0 °C |
| Voltage | 125.0 V |
| Depth | 0.78 in |
|---|---|
| Width | 1.322 in |
| Product Line | Pass & Seymour |
| Application Sector | Commercial |
| Indoor/Outdoor | Outdoor |
| Standard | UL498; CSA C22.2 No. 42 |
| Special Features | Auto-ground clip assures positive ground. WR marking on face as required by UL Standard. Zinc-plated steel mounting screws for greater ease of installation and removal in wet or damp locations. Strap tabs wrap around face to prevent strap from separating from face and back body. Tri-drive brass terminal screws. Side wire capability. Heavy-duty, brass strap for added strength and ground conductivity. UV-resistant nylon face for longer life under adverse environmental conditions. Two drive screws anchor strap to back body and face where abrupt removal torque is strongest. Easily accessed break-off, line-contact connecting tab for fast, easy split-circuit wiring. .032 inch thick brass triple-wipe power contacts for lasting retention. |
| Outlet Type | Weather-Resistant; Tamper-Resistant |
| Wire Size | 14 - 10 AWG |
| Operating Temperature Max | 60.0 °C |
| Features | Weatherproof; Brass Mounting Strap |
| NEMA Configuration Code | 5-20R |
| Warranty Type | 1-Year Limited Warranty |
| Connection Location | Side Only |
