WeatherFlo HD Enclosures 1-Door Type 3R, 74.14x68.56x30.00, White, Aluminum
nVent Hoffman

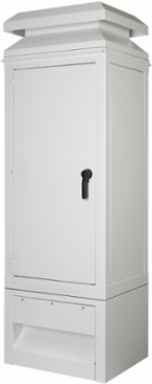

nVent Hoffman WFHD3E726830 WeatherFlo HD Enclosures 1-Door Type 3R, 74.14x68.56x30.00, White, Aluminum

  • MPN: WFHD3E726830
  • UPC: 783510199159
  • PPN: HOF-WFHD3E726830
  • UNSPSC: 39121324
Available to Order

Lead times may vary. For an accurate estimate please contact us.

Company Stock:

0

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Description

WeatherFlo HD Enclosures are designed to protect and cool 100-500 HP variable frequency drives. This WeatherFlo HD Enclosures 1-Door Type 3R, WFHD3E726830 item measures 74.14x68.56x30.00 inch with a material of Aluminum colored White.

Features

  • Optional impeller packages provide 840 actual CFM per impeller
  • Easy-to-install back panel with flexible installation methods
  • Painted white polyester powder finish with low solar absorption
  • Selectable bases and tops, designed to meet your specific needs
  • Gangable enclosures can be joined to one another
  • Easy-to-change filter (not included)
  • Frames, bases and gland plates constructed of .125-in. aluminum
  • Tops and fan housing constructed of .080-in. aluminum
  • Sides and standard rear cover constructed of .100-in. aluminum
  • Gasketed door, top and base
  • Panels and heavy-duty rear cover constructed of 12 gauge mild steel
  • Three-point latches operated by patented padlocking handle
  • Grounding provisions on door and body

Documentation & Downloads

Specifications

Key Specifications

BABA
Contact Manufacturer
Width (W)
1,741
Protection Rating
NEMA Type 3R
Finish
Powder Coated
Thickness (T)
3.2
NEMA Rating
3R Weather-resistant, except dust
Sub Brand
WeatherFlo HD
Size
74.14x68.56x30.00 in
Height (H)1,883
Depth (D)762
Product FamilyWeatherFlo
Color CodeRAL 9003
IP RatingIP32
Weight249
MaterialAluminum
ColorWhite
