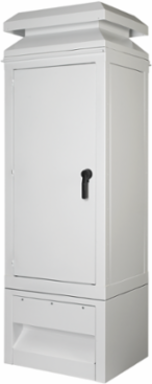

nVent Hoffman WFHD3E723630 WeatherFlo HD Enclosures 1-Door Type 3R, 74.14x36.00x30.00, White, Aluminum
- MPN: WFHD3E723630
- UPC: 783510199166
- PPN: HOF-WFHD3E723630
- UNSPSC: 39121324
CAD
$4471.38
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
WeatherFlo HD Enclosures are designed to protect and cool 100-500 HP variable frequency drives. This WeatherFlo HD Enclosures 1-Door Type 3R, WFHD3E723630 item measures 74.14x36.00x30.00 inch with a material of Aluminum colored White.
Features
- Optional impeller packages provide 840 actual CFM per impeller
- Easy-to-install back panel with flexible installation methods
- Painted white polyester powder finish with low solar absorption
- Selectable bases and tops, designed to meet your specific needs
- Gangable enclosures can be joined to one another
- Easy-to-change filter (not included)
- Frames, bases and gland plates constructed of .125-in. aluminum
- Tops and fan housing constructed of .080-in. aluminum
- Sides and standard rear cover constructed of .100-in. aluminum
- Gasketed door, top and base
- Panels and heavy-duty rear cover constructed of 12 gauge mild steel
- Three-point latches operated by patented padlocking handle
- Grounding provisions on door and body
Documentation & Downloads
Specifications
Key Specifications
- BABA
- Contact Manufacturer
- Width (W)
- 914
- Protection Rating
- NEMA Type 3R
- Finish
- Powder Coated
- Thickness (T)
- 3.2
- Weight
- 174
- Material
- Aluminum
- Color
- White
Height (H)1,883
Depth (D)762
Product FamilyWeatherFlo
Color CodeRAL 9003
IP RatingIP32
Sub BrandWeatherFlo HD
Size74.14x36.00x30.00 in
NEMA Rating3R Weather-resistant, except dust
