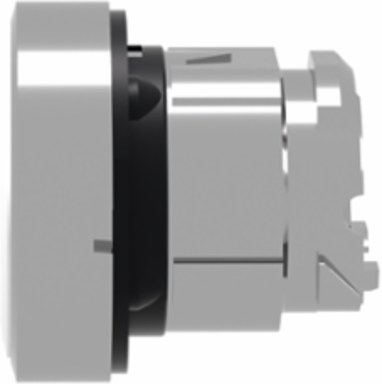

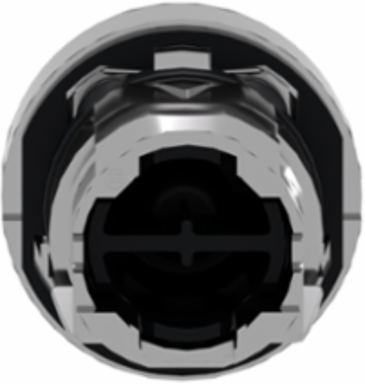

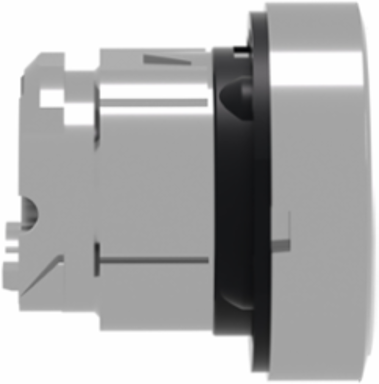

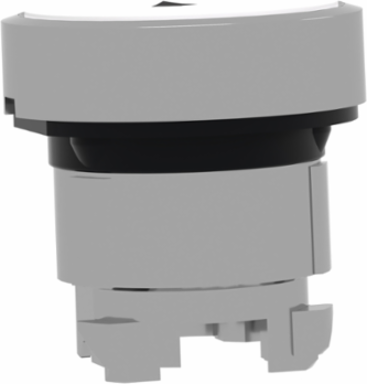

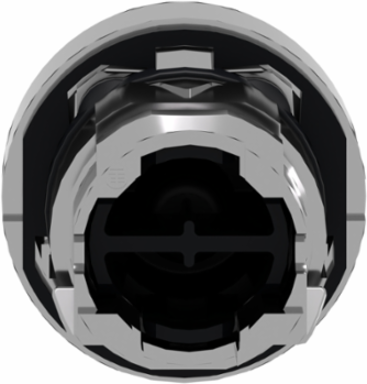

Schneider Electric ZB4BA334 Harmony XB4 White Metal Head for Non-Illuminated Push Button, 22mm, IP66
Schneider Electric ZB4BA334 Harmony XB4 White Metal Head for Non-Illuminated Push Button, 22mm, IP66
- MPN: ZB4BA334
- PPN: SCH-ZB4BA334
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$20.29/ EA
Description

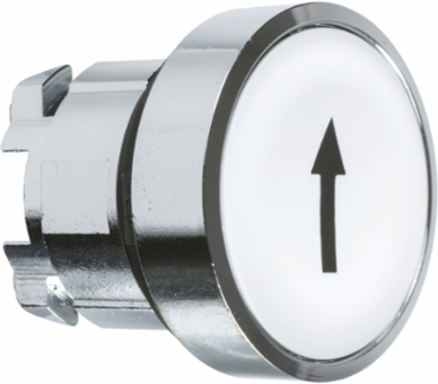

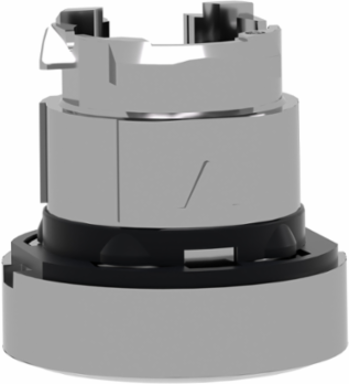

This Harmony XB4, white button head operates with a spring return mechanism and has a chromium-plated metal bezel. This button head provides an ergonomic interface for controlling your machines. It is easily installed and replaced on compatible complete push button units and contact blocks via snap-fit assembly. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66 / IP67 / IP69 / IP69K. It has a metal bezel, this makes it Ideal for applications requiring high impact and vibration resistance. It is designed to fit in a standard 22mm cutout, ensuring compatibility when installing in pre-existing machinery. Its wide range of operating temperatures from -40°C to 70°C allows versatility in usage of product.
Specifications
- Mechanical Durability
- 10,000,000 cycles
- NEMA Protection
- NEMA 13, NEMA 4X
- Operating Temperature Range
- -40 to 70 C
- Vibration Resistance
- 5 gn (2...500 Hz) IEC 60068-2-6
- Mounting Diameter
- 22 mm
- Head Type
- Standard
- Operator Profile

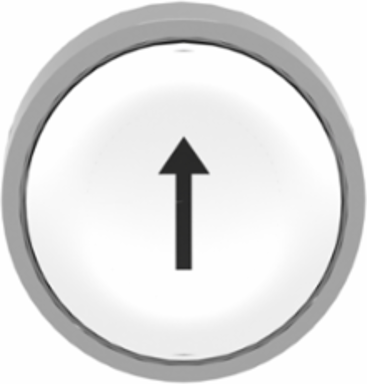

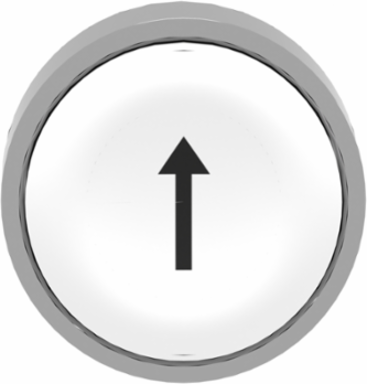

- White flush with black up arrow
- Compliance
- UL Listed, CSA C22.2 No 14, IEC 60947-5-1, UL 508, JIS C8201-5-1, IEC 60947-5-4, IEC 60947-5-5, IEC 60947-1, JIS C8201-1
Ingress ProtectionIP66, IP67, IP69, IP69K IEC 60529
Impact ProtectionIK06 IEC 50102
Shock Resistance30 gn (18 ms), 50 gn (11 ms) IEC 60068-2-27
Overvoltage CategoryClass I IEC 60536

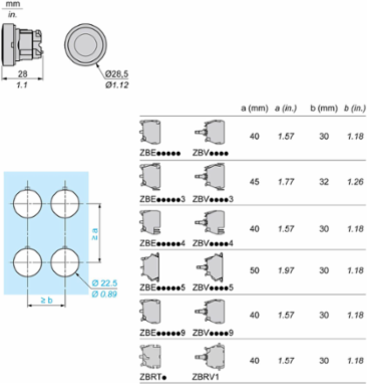

Dimensions (W x H x D)29 mm x 29 mm x 28 mm (W x H x D)
Operator TypeSpring return
MaterialChromium plated metal
Country of OriginFrance
