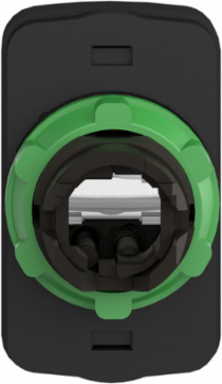

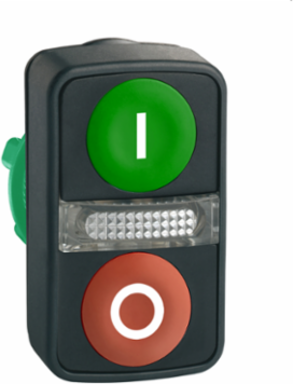

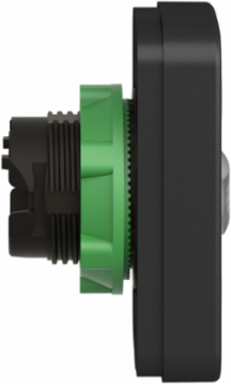

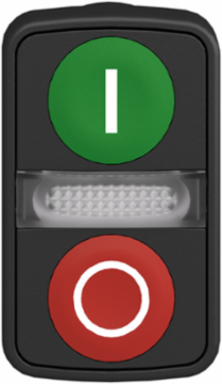

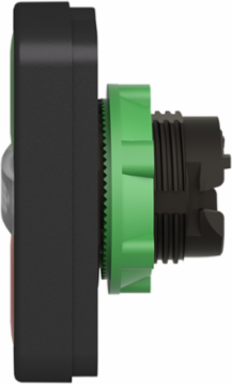

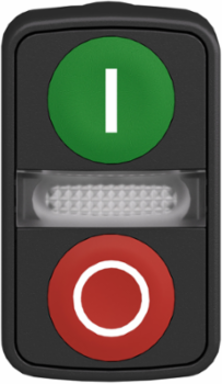

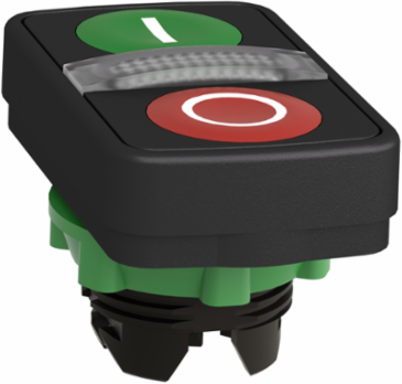

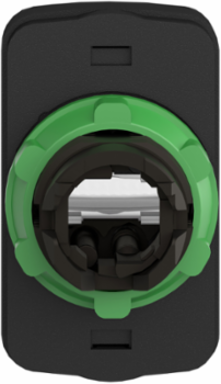

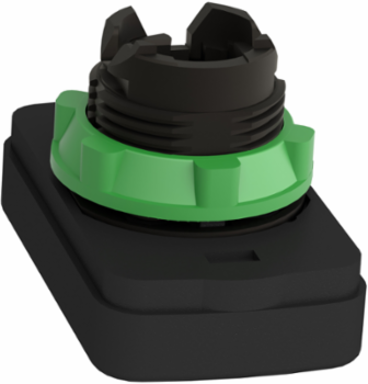

Schneider Electric ZB5AW7A3741 Illuminated Double Headed Push Button, 22mm, IP66, 1 Green I + 1 Red O

MPN: ZB5AW7A3741
PPN: SCH-ZB5AW7A3741
UNSPSC: 39122216

If you can't find the product or are unsure which one you need, please use the Product Selector tool below

$56.03

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading dialog...

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

This Harmony XB5, double head has 1 red, 1 green button and 1 central white pilot light, operates with a spring return / impulse mechanism. It is marked with "I" / "O" symbols. This double head provides a versatile interface for controlling your machines. It is easily installed and replaced on compatible complete push-button units and contact blocks via snap-fit assembly. It is clearly distinguishable visually at a distance thanks its pilot light, clear colors and by touch due to flush elements, minimizing errors in machine control. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66. It has a plastic bezel, this makes it ideal for applications requiring good resistance to chemical agents and/or double electrical insulation. It is designed to fit in a standard 22mm cutout, ensuring compatibility when installing in pre-existing machinery. Its wide range of operating temperatures from -25°C to 70°C allows versatility in usage of product.

Features

Quick and easy assembly and disassembly
Robustness to withstand harsh environments
With various types of connection: screw clamp, connector, Faston connector, spring terminal, or printed circuit board
A wide choice of contact blocks for general purposes or specific applications (low current, standard)
Excellent mechanical connection with operator head
A large set of accessories to customize your panels

Documentation & Downloads

Specifications

Key Specifications

Country of Origin	France

Weight	23 g

Physical Attributes

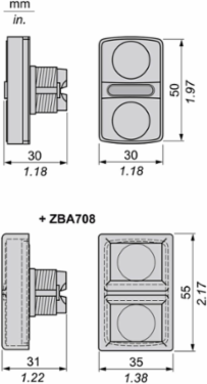

Cad Overall Depth	30 mm
Cad Overall Width	30 mm

Cad Overall Height	50 mm

Important Information Attributes

Persona Type Ids	BM9, EU, LC, OM, OM8, PB, SC, SI, VR
Market Segmentation Id	COMMERCIAL, INDUSTRIAL
Customizable	0, no
Operator Profile	green flush, I white)red flush, O white), 2 flush push-buttons - 1 central pilot light
Operator Profile 1 Marking	O
Carbon Footprint Of The Distribution Phase A4	0.0066298217468805706, 0 kg CO2 eq.
Carbon Footprint Of The Installation Phase A5	0.0063752228163992865, 0 kg CO2 eq.
Carbon Footprint Of The Use Phase B2 B3 B4 B6	kg CO2 eq., 0
Local Publishable Date	2026-03-26
Weee Scope	Out
Eoli Availability Display	Yes
Reach Full Compliance Status	Free of Substances of Very High Concern above the threshold
Reach Compliance Directive	Free of Substances of Very High Concern above the threshold
Rohs Eur Status	Compliant
Rohs Eur Full Compliance Status	Compliant
China Rohs Label	1
Without Single Use Plastic	Yes
Tier Id	1
Function Option Id	STANDARD
Product Kit Identifier	N
Average Percentage Of Recycled Plastic Content	16 %
Compatibility Code	ZB5
Electrical Shock Protection Class	class II conforming to IEC 60536
Head Type	standard
Marking	I-O
Mounting Diameter	22 mm
Product Availability	Stock - Normally stocked in distribution facility
Range Of Product	Harmony XB5
Returnability	Yes
Shape Of Signaling Unit Head	rectangular
Software Version	v5.9.4
Sustainable Packaging	Yes
Type Of Operator	spring return
Color Of Marking	white/white
Data Source	extrapolated product
Nbr. Of Units In Pkg.	1
Warranty In Months	18
Functional Unit Quantity	1
Reference Lifetime In Y	10

Persona Type Names	Charge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
Market Segmentation	Commercial, Industrial
Electrical Composition Code	M1 6 single front mounting integral LEDM2 6 single and double front mounting integral LED, M6 2 single front mounting integral LED and transformer, M10 2 single front mounting integral LED, MF1 2 single front mounting integral LEDMR1 2 single rear mounting integral LED
Operator Profile 1 Cap Operator Or Lens Color	red
Certificate Agency	CSA, DNV, BV, LROS (Lloyds register of shipping), UL Listed
Carbon Footprint Of The End Of Life Phase C1 To C4	0.1 kg CO2 eq., 0.05316648841354723
Carbon Footprint Of The Manufacturing Phase A1 To A3	0.2 kg CO2 eq., 0.1603235294117647
Local Data Status	Publishable
Return Indicator	Y
Scope Perimeter	At least in Europe
End Of Life Doc Ref	ENVEOLI2404014EN
Reach Full Compliance Status Id	NOT_CONTAINING_SVHC
Rohs Eur In Scope	No
Rohs Eur Conformity Date	1930
China Rohs In Scope	Yes
With Recycled Cardboard	Yes
Product Contributes To Saved And Avoided Emissions	No
Tier	1
Function Option	Standard
Average Percentage Of Recycled Metal Content	29 %
Bezel Material	dark grey plastic
Device Short Name	ZB5
Group Of Product	flush/flush illum marked
Main Group	illum double head
Mechanical Durability	1000000 cycles
Operators Description	green ''I'' - red ''O''
Product Or Component Type	head for illuminated double-headed push-button
Resistance To High Pressure Washer	7000000 Pa 55 °C 0.1 m
Sale Per Indivisible Quantity	1
Shock Resistance	30 gn 18 ms) half sine wave acceleration IEC 60068-2-2750 gn 11 ms) half sine wave acceleration IEC 60068-2-27
Station Name	XALD 1 cut-out
Total Lifecycle Carbon Footprint	0.2 kg CO2 eq.
Vibration Resistance	5 gn (f= 2-500 Hz) conforming to IEC 60068-2-6
Database Version	2022-01
Cap/Operator Or Lens Colour	green/red
Customs Code	8538908180
Functional Unit Description	Harmony XB5 illuminated modular green pushbutton operates with a spring return mechanism is supplied with 24V AC/DC which uses an integral LED and screw clamp terminals. It is clearly distinguishable visually at a distance with help of bright and long lasting LED illumination. Product has power consumption of 0.434 W with use rate of 71% with life span of 10 years and adhering to international standards IEC 60947-5-1 & UL 508.
Functional Unit Unit	Unit
Recyclability Potential In %	38

Environment Attributes Main

Ambient Air Temperature For Operation	-25-70 °C, -25-70 °C
Ip Degree Of Protection	IP66, IP67, IP69, IP69K
Take Back	No
Recycled Metal Content At Cr Level	29 %
Toxic Heavy Metal Free	Yes
Carbon Footprint	0.2264950623885918
Environmental Disclosure	ENVPEP2404014EN
Packaging Made With Recycled Cardboard	Yes
Product Compatibility	integral LED
Reach Regulation	Free of Substances of Very High Concern above the threshold
Pep Verification Date	2024-06-09
Psr Version	PSR-0005-ed2-2016 03 29

Ambient Air Temperature For Storage	-40-70 °C, -40-70 °C
Nema Degree Of Protection	UL type 4X/13, NEMA 13, NEMA 4X
Reach Free Shvc	Yes
China Rohs Regulation	X
Mercury Free	Yes
Circularity Profile	ENVEOLI2404014EN
Eu Rohs Directive	Compliant
Packaging Without Single Use Plastic	Yes
Reach Free Of Svhc	Yes
Pep Code	ENVPEP2404014EN
Pcr Version	PEP-PCR-ed4-2021 09 06
Type Of Verification For The Pep	Independent internal review
