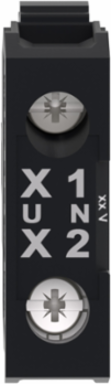

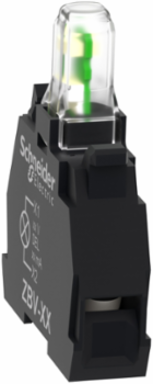

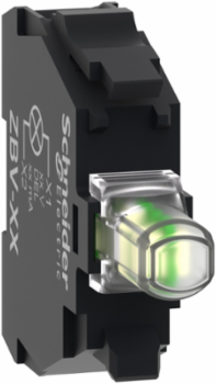

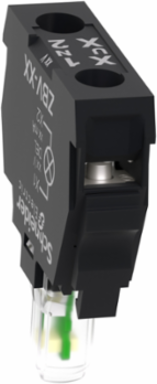

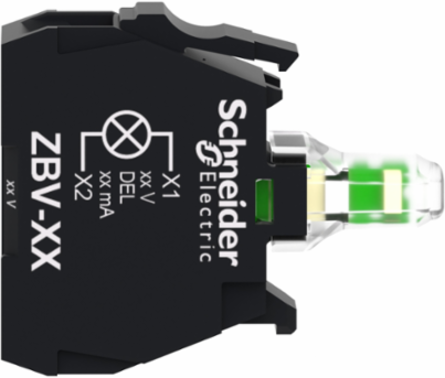

Schneider Electric ZBVGM1T Light block, Harmony XB4, Harmony XB5, 22mm, universal LED, screw clamp terminal, 110...240V AC
Schneider Electric ZBVGM1T Light block, Harmony XB4, Harmony XB5, 22mm, universal LED, screw clamp terminal, 110...240V AC
- MPN: ZBVGM1T
- PPN: SCH-ZBVGM1T
- UNSPSC: 39121534
Spec sheet
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$68.34/ EA

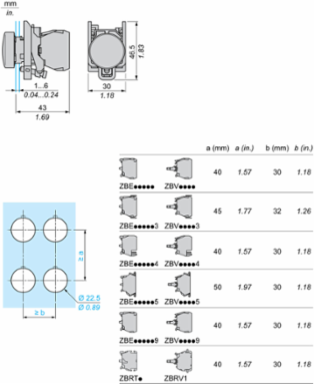

Description
This LED light block is compatible with Harmony XB4 metallic and Harmony XB5 plastic range. It is used for pushbutton heads of diameter 22. The color of the light source is white. Its robustness design LED allows to be used for specific application with overload risk like Marine, Hospital or direct wiring of loads at 230VAC The source of light is high protection universal LED and the overload capacity is 300VA at 230VAC and 120VA at 110VAC The connection terminal is screw clamp. The weight of the product is 17 grams. The rated supply voltage is 110 to 240 V AC. The simplicity of installation, flexibility, and robustness makes it suitable for the majority of industrial segments and applications. It has IP 20 protection degree. It is certified with EN/IEC, UL, CSA, and JIS. The packaging includes 5 units of this light blocks. It can be easily installed to a panel cut out with the help of a cross head screwdriver. The LED design with overload protection simplify mounting and reduce maintenance operation.
Features
- Compatible with improved color heads
- Universal LED block to be used for all colors
- Quick and easy assembly and disassembly
- Excellent mechanical connection with operator head
- A wide choice of contact blocks for general purposes or specific applications (low current, standard)
- Various types of connection: screw clamp, connector, Faston connector, spring terminal, or printed circuit board
Specifications
Physical Attributes
- Light Source Color
- white
Conformance Attributes
- Product Certifications
- CSA, UL Listed
StandardsIEC 60947-1, UL 508, IEC 60947-5-1, CSA C22.2 No 14, JIS C8201-5-1, JIS C8201-1
Important Information Attributes
- Persona Type Ids
- BM9, EU, LC, OM, OM8, PB, SC, SI, VR
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Electrical Composition Code
- M1, M2, M3, M4, M5, M6, M10, MF1, P1, P2, PF1
- Resistance To Electrostatic Discharge
- 6 kV on contact (on metal parts) IEC 61000-4-2, 8 kV in free air (in insulating parts) IEC 61000-4-2
- Us Rated Supply Voltage2
- 110...240 V AC 50/60 Hz, 110...240 V
- Carbon Footprint Of The End Of Life Phase C1 To C4
- 0 kg CO2 eq., 0.0103232745
- Carbon Footprint Of The Manufacturing Phase A1 To A3
- 0.1 kg CO2 eq., 0.0841781701
- Connections Terminals
- screw clamp terminals, <= 2 x 1.5 mm² with cable end IEC 60947-1, screw clamp terminals, >= 1 x 0.22 mm² without cable end IEC 60947-1
- Overload Capacity At Nominal Rated Input V3
- 300 VA, 120 VA
- Local Publishable Date
- 2026-01-12
- Scope Perimeter
- At least in Europe
- End Of Life Doc Ref
- ENVEOLI2302007EN
- Reach Full Compliance Status Id
- CONTAINS_SVHC
- ROHS EUR In Scope
- Yes
- ROHS EUR Full Compliance Status
- Compliant with Exemptions
- China ROHS In Scope
- Yes
- With Recycled Cardboard
- Yes
- Product Contributes To Saved And Avoided Emissions
- No
- Function Option Id
- STANDARD
- Average Percentage Of Recycled Metal Content
- 10 %
- Bulb Base
- integral LED
- Current Consumption
- 19 mA
- Electrical Insulation Class
- class II IEC 61140
- Light Block Supply
- direct
- Light Source Color
- white
- Package Weight Lbs
- 9.000 g
- Product Or Component Type
- light block
- Resistance To Fast Transients
- 2 kV IEC 61000-4-4
- Service Life
- 100000 h at rated voltage and 25 °C
- Supply Voltage Limits
- 93-264 V AC
- Tightening Torque
- 0.8-1.2 N.m IEC 60947-1
- Weee Label
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Stocking Flag
- Y
- Pep Code
- ENVPEP2302007_V1
- Pep Verification Date
- 2023-04-01
- Psr Version
- PSR-0005-ed2-2016 03 29
- Data Source
- extrapolated product
- Functional Unit Unit
- Unit
- Energy Model Installation A5 2
- Electricity Mix; Production mix; Low voltage; UE-27 / Electricity Mix; Production mix; Low voltage; US / Electricity Mix; Production mix; Low voltage; BR / Electricity Mix; Production mix; Low voltage; AUS
- Energy Model End Of Life C1 C4 2
- Electricity Mix; Production mix; Low voltage; UE-27 / Electricity Mix; Production mix; Low voltage; US / Electricity Mix; Production mix; Low voltage; BR / Electricity Mix; Production mix; Low voltage; AUS
- Us Rated Supply Voltage5
- 110...240 V AC 50/60 Hz
Persona Type NamesCharge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
Market SegmentationCommercial, Industrial
Range Of ProductHarmony XB5, Harmony XB4
Shape Of Screw Headcross Philips no 1, cross pozidriv No 1, slotted flat Ø 4 mm, slotted flat Ø 5.5 mm
Carbon Footprint Of The Distribution Phase A40.0031427769, 0 kg CO2 eq.
Carbon Footprint Of The Installation Phase A50.0072036838, 0 kg CO2 eq.
Carbon Footprint Of The Use Phase B2 B3 B4 B636 kg CO2 eq., 35.6261578947
Connections Terminals3screw clamp terminals, <= 2 x 1.5 mm² with cable end IEC 60947-1, screw clamp terminals, >= 1 x 0.22 mm² without cable end IEC 60947-1
Local Data StatusPublishable
Legacy WEEE ScopeIn
EOLI Availability DisplayYes
Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
ROHS EUR StatusCompliant with Exemptions
ROHS EUR Full Compliance Status IdCOMPLIANT_WITH_EXEMPTIONS
Green Premium Status For ReportingGreen Premium product
Without Single Use PlasticYes
Return IndicatorN
Function OptionStandard
Average Percentage Of Recycled Plastic Content30 %
Compatibility CodeZBV
Device Short NameZBV
Electromagnetic Emissionclass B IEC 55011
Light Sourceuniversal LED
Mounting Of Blockfront mounting
Product AvailabilityNon-Stock - Not normally stocked in distribution facility
Resistance To Electromagnetic Fields10 V/m IEC 61000-4-3
ReturnabilityNo
Signalling Typesteady
Sustainable PackagingYes
Total Lifecycle Carbon Footprint36 kg CO2 eq.
Medium DescLight block, Harmony XB4, Harmony XB5, 22mm, universal LED, screw clamp terminal, 110...240V AC
Product Kit IdentifierN
Database Version2022-01
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent internal review
Functional Unit DescriptionLight blocks that attach to the back of a push button and serve as an indicator light. When the push button is pressed, the light blocks turn on and illuminate through the button head with a 30% utilisation rate and power consumption is 4.56W, and the product has a life of 10 years while adhering to standards IEC 61000-4-5 and IEC 60947-5-5.
Energy Model Manufacturing A1 A3 2Energy model used: Electricity Mix; Production mix; Low voltage; UE-27
Energy Model Use B6 2Electricity Mix; Production mix; Low voltage; UE-27 / Electricity Mix; Production mix; Low voltage; US / Electricity Mix; Production mix; Low voltage; BR / Electricity Mix; Production mix; Low voltage; AUS
Global Commercial StatusCommercialised
Environment Attributes Main
- Take Back
- No, Nej
- ROHS Exemption Information
- Yes
- China ROHS Regulation
- X
- Carbon Footprint
- 35.7310058
- Ambient Air Temperature For Storage
- -40-70 °C
- Environmental Disclosure
- ENVPEP2302007_V1
- Packaging Made With Recycled Cardboard
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Pep Verification Date
- 2023-04-01
- Psr Version
- PSR-0005-ed2-2016 03 29
EU ROHS DirectiveCompliant By Exemption , Compliant with Exemptions
Recycled Metal Content At Cr Level10 %
Mercury FreeYes
Ambient Air Temperature For Operation-40-70 °C
Circularity ProfileENVEOLI2302007EN
IP Degree Of ProtectionIP20 IEC 60529
Packaging Without Single Use PlasticYes
Pep CodeENVPEP2302007_V1
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent internal review
General Attributes
- Range Of Product
- Harmony XB5, Harmony XB4
Product Or Component Typelight block
Surge Protection And Filtering Attributes
- Surge Withstand
- 2 kV IEC 61000-4-5
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
Overview Attributes
- Device Presentation
- basic element
