Schneider Electric ZB4RTA5 Harmony XB5R Wireless Push Button Transmitter, 22mm, Yellow, IP66/IP67/IP69K

MPN: ZB4RTA5
PPN: SCH-ZB4RTA5

$121.09

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading dialog...

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

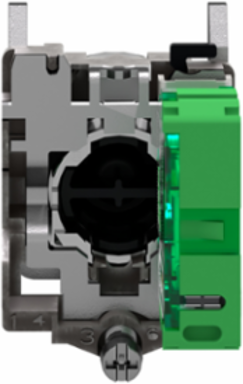

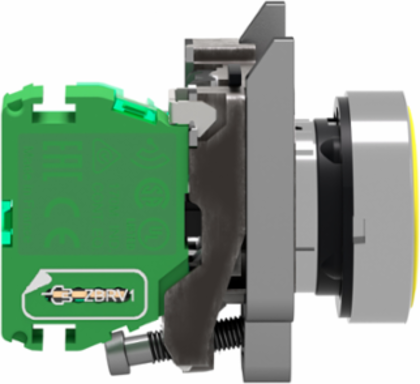

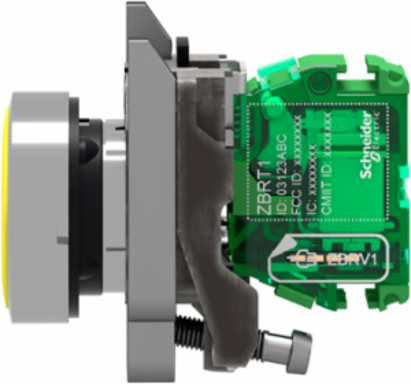

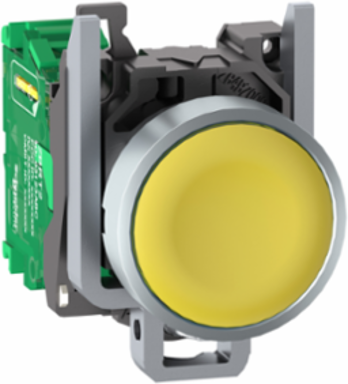

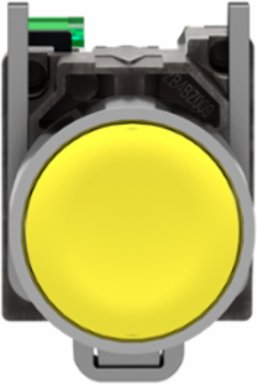

This device is a flush-mounted, wireless, and batteryless metal pushbutton (diameter 22mm). It is equipped with a yellow cap. The reference ZB4RTA5 includes a transmitter equipped with a fixing collar and a spring return pushbutton head with an attached cap. The cap is factory-assembled and cannot be removed. The transmitter and the receiver communicate via 2.4GHz radio transmission (free worldwide band) Zigbee Green Power. The maximum sensing distance between the transmitter and the receiver in a free field is up to 100m. This pushbutton head is ideal for situations where quick actions are required for a process or machine to function correctly. This pushbutton head is ideal for situations where quick actions are required for a process or machine to function correctly. The wireless and battery-less interfaces are used for building utilities (automatic doors, lighting, etc.) and industrial applications (conveying systems, automotive, MMM, logistics, food and beverage). It complies with various radio agreements such as ANATEL, ARIB T66, FCC, ICASA, and RSS, as well as the standards of CSA C22.2 No 14, EN/IEC 60947-1, EN/IEC 60947-5-1, and UL 508. The Harmony XB5R range of wireless and battery-less interfaces suits various building utilities and industrial applications. The Harmony XB5R range of wireless and battery-less interfaces suits various building utilities and industrial applications.

Documentation & Downloads

Specifications

Key Specifications

Country of Origin	Brazil, France

Communications & Management Attributes

Communication Port Protocol	Zigbee green power 2.4 GHz IEEE 802.15.4

Physical Attributes

Cad Overall Depth	43 mm
Cad Overall Width	30 mm

Cad Overall Height	41.5 mm
Embedding Depth	42 mm

Complementary Attributes

Maximum Sensing Distance	100 m in free field25 m transmitter in a plastic box type XAL D and receiver in a metal enclosure300 m transmitter in box type XAL D, receiver in metal enclosure and use relay-antenna

Important Information Attributes

Persona Type Ids	BM9, EU, LC, OM, OM8, PB, SC, SI, VR
Market Segmentation Id	COMMERCIAL, INDUSTRIAL
Customizable	0, no
Shock Resistance	25 gn 6 ms) 6000 shocks IEC 60068-2-27, 30 gn 18 ms) half sine wave acceleration IEC 60068-2-2750 gn 11 ms) half sine wave acceleration IEC 60068-2-27
Operator Profile 1 Cap Operator Or Lens Color	yellow
Local Data Status	Publishable
Return Indicator	Y
Stock Policy	2
Weee Product Category	5
Eoli Availability Display	Yes
Product Repair Index Dam Doc	XB4BS8442-ENVREPAIR-A-EN
Reach Full Compliance Status Id	CONTAINS_SVHC
Rohs Eur In Scope	No
Rohs Eur Conformity Date	1930
China Rohs In Scope	Yes
With Recycled Cardboard	No
Product Contributes To Saved And Avoided Emissions	No
Tier	2
Function Option	Standard
Antenna Gain	0 dBi
Bezel Material	chromium plated metal
Electrical Composition Code	PW1
Emission Power	3 mW
Fixing Mode	fixing screw beneath head 0.8-1.2 N.m
Max Power Consumption In W	1 mW
Mechanical Robustness	free fall resistance 1000 mm IEC 60068-2-32
Mounting Diameter	22 mm
Operating Force	10 N C/O changing electrical state
Operator Profile	yellow flush
Product Or Component Type	wireless and batteryless transmitter
Protective Treatment	TH
Response Time	< 2 ms< 2 ms
Shape Of Signaling Unit Head	round
Transmission Frequency	2405 MHz
Weee Label	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Nbr. Of Units In Pkg.	1
Product Repair Index - Dam Document Id	XB4BS8442-ENVREPAIR-A-EN
Warranty (In Months)	18

Persona Type Names	Charge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
Market Segmentation	Commercial, Industrial
Radio Agreement	ANATEL, ARIB T66, FCC, ICASA, RSS
Vibration Resistance	+/- 10 mm (f= 2-11 Hz) conforming to IEC 60068-2-6, +/- 10 mm (f= 2-11 Hz) conforming to IEC 60068-2-6, +/- 10 mm (f= 2-11 Hz) conforming to IEC 60068-2-65 gn (f= 11-500 Hz) conforming to IEC 60068-2-6, +/- 10 mm (f= 2-11 Hz) conforming to IEC 60068-2-6, +/- 10 mm (f= 2-11 Hz) conforming to IEC 60068-2-6
Certificate Agency	UL, CSA, C-tick, GOST, BT 2006/95/EC
Local Publishable Date	2026-01-12
Stocking Flag	Y
Weee Scope	In
Scope Perimeter	At least in Europe
End Of Life Doc Ref	ENVEOLI1103010EN
Reach Full Compliance Status	Reference contains Substances of Very High Concern above the threshold
Reach Compliance Directive	Reference contains Substances of Very High Concern above the threshold
Rohs Eur Status	Compliant By Exemption
Rohs Eur Full Compliance Status	Compliant By Exemption
China Rohs Label	7
Without Single Use Plastic	No
Tier Id	2
Function Option Id	STANDARD
Product Kit Identifier	N
Antenna Type	omnidirectional
Device Short Name	XB5R
Electromagnetic Compatibility	electrostatic discharge immunity test - test level: 8 kV (in free air (in insulating parts)) conforming to IEC 61000-4-2electrostatic discharge immunity test - test level: 4 kV (on contact (on metal parts)) conforming to IEC 61000-4-2susceptibility to electromagnetic fields - test level: 20 V/m (80...3000 MHz) conforming to IEC 61000-4-3susceptibility to electromagnetic fields - test level: 6 V/m (3000...6000 MHz, distance = 20 m) conforming to IEC 61000-4-3
Fixing Collar Material	zamak
Level Or Class	5M00G7W
Mechanical Durability	1000000 cycles
Modulation Technique	O-QPSK
Number Of Channels	16
Operating Travel	4.3 mm total travel)
Product Availability	Non-Stock - Not normally stocked in distribution facility
Product Repair Index	A
Range Of Product	Harmony XB5
Returnability	Yes
Sustainable Packaging	No
Type Of Operator	spring return push-button with transmitter
Pep Code	ENVPEP101106EN
Package Weight(Lbs)	93.0 g
Take-back	No
Customs Code	8517620090

Environment Attributes Main

Ambient Air Temperature For Operation	-40-70 °C, -40-70 °C
Directives	1999/5/EC - R&TTE directive, 2004/108/EC - electromagnetic compatibility
Take Back	No
China Rohs Regulation	X
Circularity Profile	ENVEOLI1103010EN
Eu Rohs Directive	Compliant By Exemption
Packaging Without Single Use Plastic	No
Relative Humidity	95-95 % -40-70 °C without condensation

Ambient Air Temperature For Storage	-40-70 °C, -40-70 °C
Ip Degree Of Protection	IP66 IEC 60529 front face), IP67 IEC 60529 front face), IP69 IEC 60529 front face), IP69K IEC 60529 front face)
Recycled Metal Content At Cr Level	0 %
Mercury Free	Yes
Environmental Disclosure	ENVPEP101106EN
Packaging Made With Recycled Cardboard	No
Reach Regulation	Reference contains Substances of Very High Concern above the threshold
Pep Code	ENVPEP101106EN
