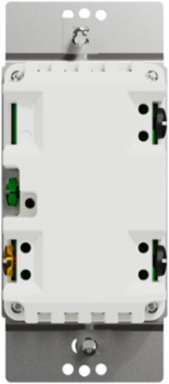

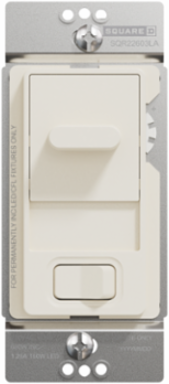

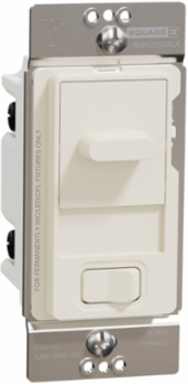

Square D SQR22603LA X Series 15A 600W Single Pole/3 Way Slider Dimmer Light Almond, 45mm Width
Square D SQR22603LA X Series 15A 600W Single Pole/3 Way Slider Dimmer Light Almond, 45mm Width
- MPN: SQR22603LA
- UPC: 785901534952
- PPN: SCH-SQR22603LA
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$44.14/ EA
Description
X Series residential wiring devices slide dimmer switch offers an array of new features, such as flush mounting, easy installation, and connectivity. The rated operational voltage of this dimmer is 120V. The mechanism with fixing frame belongs to X Series aesthetic group. The connection are screw terminal. Its matching mounting box can be recessed into the surface of the wall for flush mounting. The dimmer is made of metal and plastic making it resistant and durable. This dimmer has a light almond frame. It features protective painted surface treatment. This dimmer benefits from an elegant matt finishing, constituting an added value for your interior design. This dimmer has a width of 45 mm, a height of 103 mm and a depth of 50 mm. By offering a solution compatible with several types of installations, this dimmer is cUlus certified.
Specifications
Environment
- Product Certifications
- cULus
StandardsUL 1472 || NEMA SSL 7A
Contractual warranty
- Warranty
- 2 years
Offer Sustainability
- Rohs Exemption Information
- Yes
- Toxic Heavy Metal Free
- Yes
- Reach Free Of Svhc
- Yes
- Eu Rohs Directive
- Compliant
Mercury FreeYes
Reach RegulationFree of Substances of Very High Concern above the threshold
China Rohs RegulationPro-active China RoHS declaration (out of China RoHS legal scope)
Complementary
- Network Frequency
- 60 Hz
- Device Mounting
- flush
- Network Type
- AC
- Connections - Terminals
- phase and neutral 4 screw terminal copper || earth 1 screw terminal copper
- [Ie] Rated Operational Current Ac
- 15 A
- Material
- plastic: strap || metal: fixing frame
- Width
- 45 mm
- Load Type
- halogen 5...500 W || incandescent 5...500 W || dimmable LED 0...150 W
- Number Of Poles
- 1
Height103 mm
Number Of Gangs1 gang
Surface Finishmatt
Mounting Modeby screws
Number Of Ways3
Quantity Per Set1 piece
Depth50 mm
[Ue] Rated Operational Voltage120 V
Specifications
- Actuator
- slide
- Colour Tint
- light almond
- Range
- Square D X Series
- Device Application
- control
Aesthetic NameX Series
Product Or Component Typedimmer
Device Presentationmechanism with fixing frame
