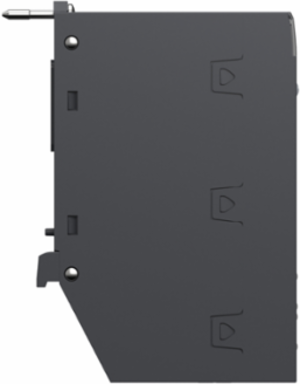

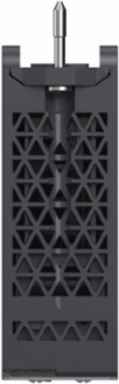

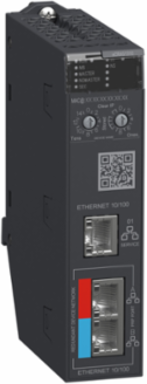

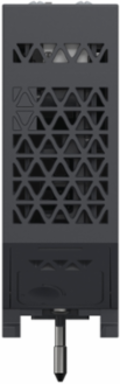

Schneider Electric BMECRA31310 Modicon X80 RIO Drop redundant communication adapter PRP
- MPN: BMECRA31310
- PPN: SCH-BMECRA31310
CAD
$4593.63
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Modicon X80 RIO Drop redundant communication adapter PRP
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Brazil, France, United States
Depth86.05 mm
Communications & Management Attributes
- Communication Service
- Ethernet/IP adapter, Ethernet Redundant RIO network, Quality of Service (QoS), CIP Explicit messaging (server), Modbus TCP server for module diagnostics, DHCP client, TFTP client, FTP client, FDR client, NTP v4 client, SNMP v3 agent
- Communication Port Protocol
- EtherNet/IP over PRP
Communication Network TypeIPv4 (internet protocol)
Complementary Attributes
- Integrated Connection Type
- 1 port service or distributed equipment, 1 port Ethernet Redundant RIO Network (PRP Lan A), 1 port Ethernet Redundant RIO Network (PRP Lan B)
Maximum Altitude Transport3000 m
Important Information Attributes
- Bus Type
- bus X across the remote backplane, Ethernet across the remote backplane
- Function Available
- CCOTF (configuration change on the fly), input data is collected and published to the remote I/O head adaptor, output modules are updated with the data received from remote I/O head adaptor, diagnostics for remote I/O devices (Device DDT), port mirroring, system time stamping, module redundancy, hot swap, use module in simlex or redundant mode, I/O extension rack
- Topology
- tree-structure, star, ring
- Carbon Footprint Of The Distribution Phase [A4]
- 0.069044448, 0.1 kg CO2 eq.
- Carbon Footprint Of The Installation Phase [A5]
- 0.2 kg CO2 eq., 0.17708064
- Carbon Footprint Of The Use Phase [B2 B3 B4 B6]
- 163 kg CO2 eq., 162.8137638617
- Local Publishable Date
- 2026-04-18
- Return Indicator
- Y
- Stock Policy
- 2
- Serviceability
- No
- Field Service Division
- IDIBS
- Weee Scope
- Out
- Scope Perimeter
- At least in Europe
- End Of Life Doc Ref
- ENVEOLI2402021EN
- Reach Full Compliance Status Id
- CONTAINS_SVHC
- Rohs Eur In Scope
- No
- Rohs Eur Conformity Date
- 2151
- China Rohs In Scope
- Yes
- With Recycled Cardboard
- Yes
- Product Contributes To Saved And Avoided Emissions
- No
- Connector Type
- 3 RJ45
- Data Recording
- 10 ms time stamps
- Environmental Characteristic
- standard environment
- Fixing Mode
- by screws
- Number Of Port
- 3
- Product Availability
- Stock - Normally stocked in distribution facility
- Product Specific Application
- for remote I/O modules
- Returnability
- Yes
- Sustainable Packaging
- Yes
- Transmission Rate
- 10/100 Mbit/s
- Database Version
- 2022-01
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
- Functional-unit Description
- The OPC UA module allows data communication with any Client in accordance with the OPC UA Client/Server standard. This module as the Modicon M580 range has a long life cycle for about more than 10 years with a 100% use rate. Typical electrical power is 3,36W (140 mA at 24 V DC).& 10& 10IEC 61000-6-5, IEC 61850-3
- Functional-unit Unit
- EACH
- Energy Consumption On Product Lifetime In Kwh
- 293.28
- Energy Model - Installation [A5]
- Electricity Mix; Production mix; Low voltage; UE-27 / Electricity Mix; Production mix; Low voltage; US / Electricity Mix; Production mix; Low voltage; APAC / Electricity Mix; Production mix; Low voltage; AUS
- Energy Model - End Of Life [C1-c4]
- Electricity Mix; Production mix; Low voltage; UE-27 / Electricity Mix; Production mix; Low voltage; US / Electricity Mix; Production mix; Low voltage; APAC / Electricity Mix; Production mix; Low voltage; AUS
- Height Nominal
- 131 mm
- Nbr. Of Units In Pkg.
- 1
- Take-back
- No
- Customs Code
- 8517620090
Cybersecurityenable/disable communication ports, Syslog protocol support, firmware signature, secure firmware upgrade through HTTPS
Local Signalling1 LED (green) for module active (RUN)1 LED (red) for module error (ERR)1 LED (green/red) for module status (Mod Status), 1 LED (green/red) for network communication status (Net Status), 1 LED (green) for Ethernet link diagnostics (STS), 1 LED (green) for module redundancy role Master (MASTER), 1 LED (green) for module redundancy role Not Master (NOMASTER)
Certificate AgencyCE, UL, CSA, RCM, EAC, UKCA, Merchant Navy
Carbon Footprint Of The End-of-life Phase [C1 To C4]0.5511792, 0.6 kg CO2 eq.
Carbon Footprint Of The Manufacturing Phase [A1 To A3]40 kg CO2 eq., 39.92736
Local Data StatusPublishable
Pre Comm Date2022-09-23
Stocking FlagN
Device TypePLC System - PLC Component
TraceabilityYes
Average Life Duration20 year(s)
Weee Product Category5
Eoli Availability DisplayYes
Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant By Exemption
Rohs Eur Full Compliance StatusCompliant By Exemption
China Rohs Label5
Without Single Use PlasticYes
Product Kit IdentifierN
Current Consumption155 mA
Device ApplicationX80 Ethernet RIO drop adaptor
Exchange Modehalf duplex, full duplex, autonegotiation, auto MDIX
Mounting Moderack-mounted
Port Ethernet10/100BASE-TX
Product Or Component TypeEthernet I/O head module
Range Of ProductModicon X80
Software Versionv5.9.4
Total Lifecycle Carbon Footprint204 kg CO2 eq.
Pep CodeENVPEP2402021EN
Pep Verification Date2023-09-27
Psr VersionPSR-0005-ed2-2016 03 29
Data Sourceextrapolated product
Functional-unit Quantity1
Reference Lifetime In Y10
Energy Model - Manufacturing [A1-a3]Energy model used: Electricity Mix; Production mix; Low voltage; FR
Energy Model - Use [B6]Electricity Mix; Production mix; Low voltage; UE-27 / Electricity Mix; Production mix; Low voltage; US / Electricity Mix; Production mix; Low voltage; APAC / Electricity Mix; Production mix; Low voltage; AUS
Recyclability Potential In %32
Width Nominal32 mm
Package Weight(Lbs)564.000 g
Warranty (In Months)18
Environment Attributes Main
- Ambient Air Temperature For Storage
- -40-85 °C, -40-85 °C
- Product Compatibility
- 0-1024 discrete channel, 0-256 analog channel, counter module, time-stamping module, SSI encoder interface module, frequency input module, AS-Interface module, serial link module, fiber converter modules, HART module, weighing module, CANopen master module (standalone CPU only), PROFIBUS module (standalone CPU only)
- Recycled Metal Content At Cr Level
- 0 %
- Mercury Free
- Yes
- Ambient Air Temperature For Operation
- 0-60 °C
- Environmental Disclosure
- ENVPEP2402021EN
- Ip Degree Of Protection
- IP20
- Packaging Made With Recycled Cardboard
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Pep Code
- ENVPEP2402021EN
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
Directives2014/35/EU - low voltage directive, 2014/30/EU - electromagnetic compatibility
Take BackNo
China Rohs RegulationX
Carbon Footprint203.5384281497
Circularity ProfileENVEOLI2402021EN
Eu Rohs DirectiveCompliant By Exemption
Operating Altitude<= 6561.68 ft (2000 m)<= 6561.68 ft (2000 m)2000 m...5000 m with derating factor
Packaging Without Single Use PlasticYes
Relative Humidity95-95 % without condensation
Pep Verification Date2023-09-27
Psr VersionPSR-0005-ed2-2016 03 29
General Attributes
- Product Or Component Type
- Ethernet I/O head module
Range Of ProductModicon X80
ETIM
- ETIM 8
- EC001423
ETIM 9EC001423
Input Attributes
- Input Voltage
- 24 V DC
