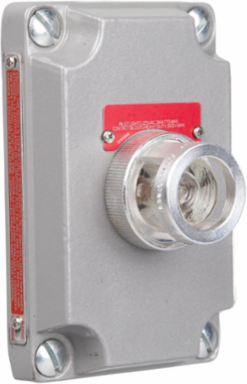

Killark XCS-0B24-CL Aluminum 120V Pilot Light Cover, 6.25 Inch x 5.875 Inch x 4.25 Inch, Class I Divisions 1 & 2
- MPN: XCS-0B24-CL
- UPC: 783936890289
- PPN: HBL-XCS-0B24-CL
- UNSPSC: 39122216
CAD
$619.05
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
XCS Series - Aluminum 120V Pilot Light Cover With Device - Clear Lens With Nameplate To Be Specified
Features
- Copper free cast aluminum alloy.
- Ground flange joint between bolted cover and box provide required flame path.
- Push button, selector switches and pilot light operator bodies are copper-free aluminum.
- Operating shaft in both push buttons and selector switches are stainless steel.
- Killark XCS SERIES CONTROL STATION Control Stations provide control solutions in hazardous location areas to supply; START/STOP Motor Functions, LED Pilot Light Indications and more. Utilized in Class 1 Division 1 & 2, Class 1 Zone 1 & 2 areas for indoor use are a Non-Factory Sealed unit requiring the need for a conduit seal fitting. UL Listed and CSA Certified.
Specifications
Key Specifications
| Country of Origin | United States |
|---|---|
| Depth | 2-3/32 in |
| Hazardous Rating(s) | Class I, Divisions 1 & 2, Groups C, D;Class I, Zones 1 & 2, Groups IIB, IIA;Class II, Divisions 1 & 2, Groups E, F, G;Class III, Divisions 1 & 2 |
| Length | 6.25 in |
| Amperage Rating | 0.25 A |
| Color | White |
| Special Features | Killark XCS SERIES CONTROL STATION Control Stations provide control solutions in hazardous location areas to supply; START/STOP Motor Functions, LED Pilot Light Indications and more. Utilized in Class 1 Division 1 & 2, Class 1 Zone 1 & 2 areas for indoor use are a Non-Factory Sealed unit requiring the need for a conduit seal fitting. UL Listed and CSA Certified. |
| Width | 5.875 in |
| ARRA Compliant | Contact Manufacturer |
| Description - Invoice | CLI 120V CLEAR PL CV (CS) |
| Harmonization Code | 8531809051 |
| Lead Time | 15 wk |
| Order Multiple | 1 EA |
| Sub Class Code | D25D250 |
| CSA File Number | LR11714 |
| UL File Number | E53360 |
| Series | XCS Series |
| BOX SIZE | (in) |
| Master Pack Description | Each |
| Back Box Type | SWB |
|---|---|
| Dimensions | 6.25 in x 5.875 in x 4.25 in |
| Height | 4.25 in |
| Actuator | Pilot Light |
| Application | Hazardous locations due to the presence of flammable gases or vapors, combustible dusts, or easily ignitable fiber or flyings. Installations at petroleum refineries, chemical and petrochemical plants, and other processing or storage facilities where simil |
| Size | 6.25 in x 5.875 in x 4.25 in |
| Type | Aluminum Cover With Pilot Light |
| Frequency Rating | 50/60 Hz |
| Class Code | D25 |
| Freight Class Code | 06316009 |
| Image Actual Or Representative | R |
| MSDS Flag | No |
| Returnable Indicator | Yes |
| Buy America(n) Qualified | Contact Manufacturer |
| Gross Weight with Packaging | 1.15 |
| Material | Copper-free aluminum |
| Base Unit of Measure | EA |
| Carton - SCC-14 Next Lower Level Sub Pack | 00783936890289 |
| NAICS Code | 3359326103 |
