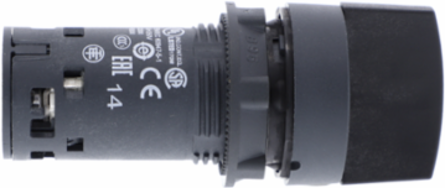

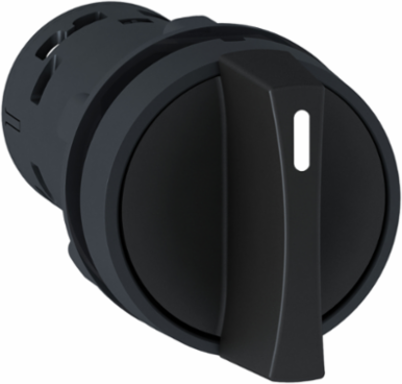

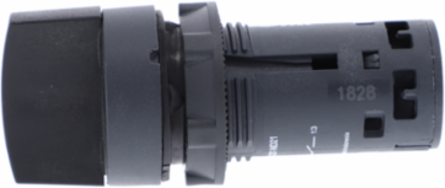

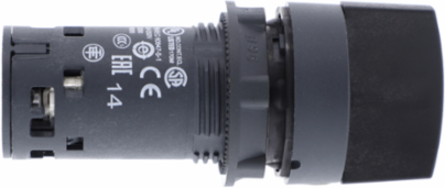

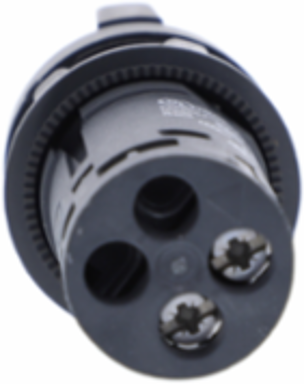

Schneider Electric XB7ND33 Harmony XB7 Monolithic Selector Switch, 22mm, 3 Positions, IP65

MPN: XB7ND33
PPN: SCH-XB7ND33

If you can't find the product or are unsure which one you need, please use the Product Selector tool below

$55.97

Available to Order

Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST

Available To Ship Immediately:0

Loading dialog...

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

This Harmony XB7, monolithic black selector switch has 3 positions, operates with a spring-return-to-center mechanism and screw clamp terminals. It is easily installed into standard 22mm diameter cut-outs and connected to your control circuits with simple screw-clamp connections. It provides an effective manner to give your machine multiple different inputs. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP65, making it ideal for operation in harsh environments. It has a double insulated plastic bezel. Its wide range of operating temperatures from -25°C to 70°C allows versatility in usage of product.

Features

The Schneider XB7ND33 is a 22mm, 3-position selector switch from the Harmony XB7 range. Unlike the modular XB5 series, the XB7 is monolithic, meaning the operator head, mounting collar, and contact blocks are all built into a single, one-piece unit. This makes it an extremely cost-effective and simple solution for basic control panels.

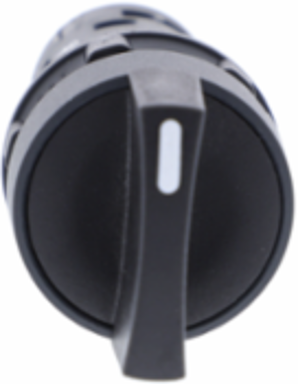

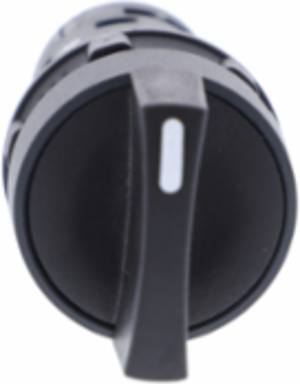

This switch features a 90 throw with three stable positions: Left, Center, and Right. It is a "stay-put" (maintained) switch, meaning it will remain in whichever position you turn it to. This is typically used for Hand-Off-Auto (H-O-A) configurations or for selecting between three different modes of operation.
The XB7ND33 comes factory-equipped with 2 NO (Normally Open) contacts. In the Left position, one contact is closed. In the Center position, both contacts are open (OFF). In the Right position, the other contact is closed. This allows for simple logic switching without needing to purchase or snap on additional contact blocks.

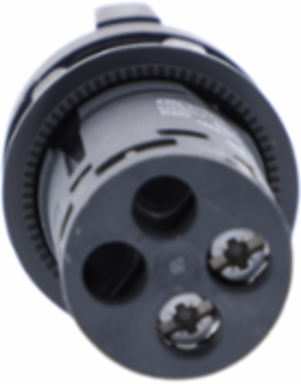

It is a single-piece plastic unit, the XB7ND33 is incredibly easy to install you simply insert it through a 22mm hole and tighten the single rear locking nut. It is made of high-strength, double-insulated plastic, making it ideal for environments where you want to avoid metal parts for safety or chemical resistance reasons.
This switch carries an IP65 and NEMA 4/13 rating. It is dust-tight and protected against low-pressure water jets, making it suitable for standard industrial environments and control stations. Its smooth black handle is designed for easy operation even while wearing work gloves.

Documentation & Downloads

Specifications

Key Specifications

Country of Origin	Brazil, France, Indonesia, Singapore, United States

Physical Attributes

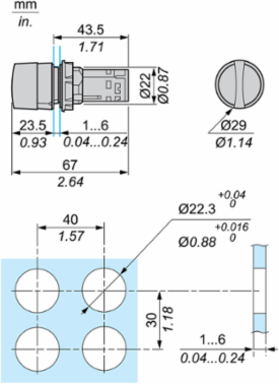

Cad Overall Depth	68.5 mm
Cad Overall Width	29 mm

Cad Overall Height	29 mm

Important Information Attributes

Persona Type Ids	BM9, EU, LC, OM, OM8, PB, SC, SI, VR
Market Segmentation Id	COMMERCIAL, INDUSTRIAL
Electrical Durability	1000000 cycles, DC-13, 0.3 A 24 V 216000 cyc/mn 0.5 IEC 60947-5-1 appendix C, 1000000 cycles, AC-15, 0.03 A 230 V 216000 cyc/mn 0.5 IEC 60947-5-1 appendix C, 1000000 cycles, AC-15, 0.09 A 240 V 108000 cyc/mn 0.5 IEC 60947-5-1 appendix C
Shape Of Screw Head	cross JIS No 1, cross Philips no 1, cross pozidriv No 1slotted flat Ø 4 mm, slotted flat Ø 5.5 mm
Terminals Description Iso N°1	(23-24)NO, (13-14)NO, (23-24)NO, (13-14)NO
Carbon Footprint Of The End-of-life Phase [C1 To C4]	0.1 kg CO2 eq., 0.077061
Carbon Footprint Of The Manufacturing Phase [A1 To A3]	0.3 kg CO2 eq., 0.25192
Local Data Status	Publishable
Return Indicator	Y
Stock Policy	2
Weee Product Category	5
Eoli Availability Display	Yes
Reach Full Compliance Status	Free of Substances of Very High Concern above the threshold
Reach Compliance Directive	Free of Substances of Very High Concern above the threshold
Rohs Eur Status	Compliant
Rohs Eur Full Compliance Status	Compliant
China Rohs Label	1
Without Single Use Plastic	No
Tier Id	1
Function Option Id	STANDARD
Product Kit Identifier	N
Contact Operation	slow-break
Device Short Name	XB7
Electrical Shock Protection Class	class II conforming to IEC 61140
Mechanical Durability	300000 cycles
Operator Position Information	3 positions +/- 45°
Positive Opening	without
Product Or Component Type	selector switch
Range Of Product	Harmony XB7
Sale Per Indivisible Quantity	10
Shock Resistance	50 gn 11 ms) half sine wave acceleration IEC 60068-2-2730 gn 18 ms) half sine wave acceleration IEC 60068-2-27
Sustainable Packaging	No
Total Lifecycle Carbon Footprint	0.4 kg CO2 eq.
Vibration Resistance	5 gn (f= 2-500 Hz) conforming to IEC 60068-2-6
Pep Code	ENVPEP2312032EN
Pep Verification Date	2023-12-07
Psr Version	PSR-0005-ed2-2016 03 29
Data Source	referent product
Functional-unit Quantity	1
Reference Lifetime In Y	10
Energy Model - Installation [A5]	Electricity Mix; Production mix; Low voltage; UE-27 / Electricity Mix; Production mix; Low voltage; APAC / Electricity Mix; Production mix; Low voltage; US / Electricity Mix; Production mix; Low voltage; BR
Energy Model - End Of Life [C1-c4]	Electricity Mix; Production mix; Low voltage; UE-27 / Electricity Mix; Production mix; Low voltage; APAC / Electricity Mix; Production mix; Low voltage; US / Electricity Mix; Production mix; Low voltage; BR
[Ie] Rated Operational Current	0.1 A 250 V, DC-13, R300 IEC 60947-5-10.22 A 125 V, DC-13, R300 IEC 60947-5-10.3 A 240 V, AC-14, D300 IEC 60947-5-10.6 A 120 V, AC-14, D300 IEC 60947-5-1
[Uimp] Rated Impulse Withstand Voltage	4 kV IEC 60947-1
Connections - Terminals	screw clamp terminals, <= 2 x 1.5 mm² with cable end IEC 60947-1screw clamp terminals, 1 x 0.34...2 x 2.5 mm² without cable end IEC 60947-1
Nbr. Of Units In Pkg.	1
Take-back	No
Depletion Of Abiotic Resources - Fossil Fuels (Mj) Manufacturing [A1-a3]	3.5795
Depletion Of Abiotic Resources - Fossil Fuels (Mj) End Of Life [C1-c4]	1.5581
Ecotoxicity (Fresh Water) (Ctue) Operational Energy Use [B6]	1.1561
Total Use Of Non-renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Manufacturing [A1-a3]	3.5795
Total Use Of Non-renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) End Of Life [C1-c4]	1.5581
Total Use Of Primary Energy During The Life Cycle (Mj) Operational Energy Use [B6]	2.1066
Use Of Non-renewable Primary Energy Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Manufacturing [A1-a3]	3.0722
Use Of Non-renewable Primary Energy Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) End Of Life [C1-c4]	1.5581

Persona Type Names	Charge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
Market Segmentation	Commercial, Industrial
Fixing Center	>= 30 x 40 mm support panel) metal 1-6 mm, >= 30 x 40 mm support panel) metal 1-6 mm, >= 30 x 40 mm support panel) metal 1-6 mm, >= 30 x 40 mm support panel) metal 1-6 mm, >= 30 x 40 mm support panel) plastic 2-6 mm, >= 30 x 40 mm support panel) plastic 2-6 mm, >= 30 x 40 mm support panel) plastic 2-6 mm, >= 30 x 40 mm support panel) plastic 2-6 mm>= 30 x 40 mm support panel) metal 1-6 mm, >= 30 x 40 mm support panel) metal 1-6 mm, >= 30 x 40 mm support panel) metal 1-6 mm, >= 30 x 40 mm support panel) metal 1-6 mm, >= 30 x 40 mm support panel) plastic 2-6 mm, >= 30 x 40 mm support panel) plastic 2-6 mm
Certificate Agency	IEC 60947-1, UL 508, IEC 60947-5-1, CSA C22.2 No 14, JIS C8201-5-1, JIS C8201-1
Carbon Footprint Of The Distribution Phase [A4]	0.0035142, 0 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]	0.00010068, 0 kg CO2 eq.
Carbon Footprint Of The Use Phase [B2 B3 B4 B6]	0.1 kg CO2 eq., 0.085812
Local Publishable Date	2026-03-26
Stocking Flag	N
Weee Scope	In
Scope Perimeter	At least in Europe
End Of Life Doc Ref	ENVEOLI2312032EN
Reach Full Compliance Status Id	NOT_CONTAINING_SVHC
Rohs Eur In Scope	No
Rohs Eur Conformity Date	1930
China Rohs In Scope	Yes
With Recycled Cardboard	Yes
Product Contributes To Saved And Avoided Emissions	No
Tier	1
Function Option	Standard
Compatibility Code	XB7
Contacts Type And Composition	2 NO
Electrical Reliability	λ < 10exp(-6) 17 V 5 mA IEC 60947-5-4
Fixing Mode	fixing nut 2-2.4 N.m
Mounting Diameter	22 mm
Operator Profile	black standard handle
Product Availability	Stock - Normally stocked in distribution facility
Protective Treatment	TH
Returnability	Yes
Shape Of Signaling Unit Head	round
Software Version	v5.9.4
Tightening Torque	0.8-1.2 N.m IEC 60947-1
Type Of Operator	stay put
Weee Label	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Database Version	2022-01
Pcr Version	PEP-PCR-ed4-2021 09 06
