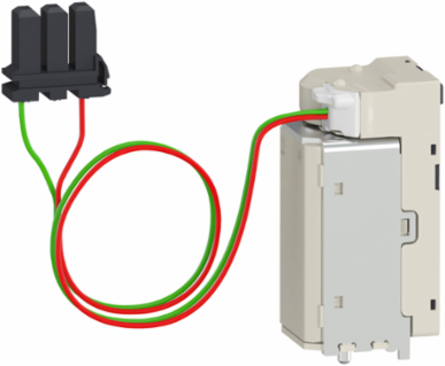

Schneider Electric LV833661SP MasterPact Voltage Release, 100-130V AC/DC, Control Function

MPN: LV833661SP
PPN: SCH-LV833661SP

$408.37

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading dialog...

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

The MasterPact Voltage Release from Schneider Electric is engineered to provide reliable control for various electrical applications. Operating within a voltage range of 100-130V AC/DC, this device ensures effective voltage release for enhanced safety and functionality in circuit management. With its robust design, it stands out as a crucial component for applications requiring dependable control functions, making it an essential part of modern electrical systems.

Documentation & Downloads

Specifications

Key Specifications

Country of Origin	United States

Important Information Attributes

Persona Type Ids	LC, PB
Market Segmentation Id	COMMERCIAL, INDUSTRIAL
Operating Time	60 ms on opening MasterPact MTZ1, 60 ms on opening MasterPact MTZ2, 60 ms on opening MasterPact MTZ365 ms on closing MasterPact MTZ1, 80 ms on closing MasterPact MTZ2, 90 ms on closing MasterPact MTZ3
[Uc] Control Circuit Voltage	100...130 V AC 50/60 Hz, 100...130 V DC
Carbon Footprint Of The End-of-life Phase [C1 To C4]	0.4 kg CO2 eq., 0.43443130434782606
Carbon Footprint Of The Manufacturing Phase [A1 To A3]	4 kg CO2 eq., 4.2743906832298135
Local Data Status	Publishable
Return Indicator	Y
Stock Policy	2
Traceability	No
Weee Applicability	Finished product
Weee Product Category	5
Eoli Availability Display	Yes
Reach Full Compliance Status	Reference contains Substances of Very High Concern above the threshold
Reach Compliance Directive	Reference contains Substances of Very High Concern above the threshold
Rohs Eur Status	Compliant By Exemption
Rohs Eur Full Compliance Status	Compliant By Exemption
China Rohs Label	7
Without Single Use Plastic	Yes
Tier Id	3
Function Option Id	STANDARD
Product Kit Identifier	N
Energy Efficiency Optimized	False
Offer Type	spare part
Product Or Component Type	voltage release
Range	MasterPact
Software Version	v5.9.4
Sustainable Packaging	Yes
Total Lifecycle Carbon Footprint	5 kg CO2 eq.
Pep Code	ENVPEP2307032EN
Pep Verification Date	2023-12-03
Psr Version	PSR-0005-ed2-2016 03 29
Data Source	extrapolated product
Functional-unit Quantity	1
Reference Lifetime In Y	10
Energy Model - Installation [A5]	Electricity Mix; Production mix; Low voltage; UE-27
Energy Model - End Of Life [C1-c4]	Electricity Mix; Production mix; Low voltage; UE-27
Halogen-free Status	Product contains halogen above thresholds
Package Weight(Lbs)	237.0 g
Take-back	No
Customs Code	8504508000

Persona Type Names	Contractor, Panel Builder
Market Segmentation	Commercial, Industrial
Voltage Release Type	closing coil, opening coil
Carbon Footprint Of The Distribution Phase [A4]	0.03099106211180124, 0 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]	0.05284511180124224, 0.1 kg CO2 eq.
Carbon Footprint Of The Use Phase [B2 B3 B4 B6]	0 kg CO2 eq., 0.000035545
Local Publishable Date	2024-01-12
Stocking Flag	N
Serviceability	No
Field Service Division	PPIBS
Weee Scope	In
Scope Perimeter	At least in Europe
End Of Life Doc Ref	ENVEOLI2307032EN
Reach Full Compliance Status Id	CONTAINS_SVHC
Rohs Eur In Scope	Yes
Rohs Eur Conformity Date	1943
China Rohs In Scope	No
With Recycled Cardboard	Yes
Product Contributes To Saved And Avoided Emissions	No
Tier	3
Function Option	Standard
Device Application	control
Mounting Mode	fixed/drawout
Product Availability	Stock - Normally stocked in distribution facility
Provided Equipment	1 instruction sheet
Returnability	Yes
Supply Holding Power	4.5 W
Threshold Tripping Voltage	0.7...1.1 Un on opening0.85...1.1 Un on closing
Weee Label	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Database Version	2022-01
Pcr Version	PEP-PCR-ed4-2021 09 06
Type Of Verification For The Pep	Independent external review
Functional-unit Description	The MX release instantaneously opens the circuit breaker when energized, the minimum duration of the pulse operating order must be 200 ms. Service Duration: 10 years.& 10It complies with IEC 60947-2 standard.
Functional-unit Unit	Unit
Energy Model - Manufacturing [A1-a3]	Electricity Mix; Production mix; Low voltage; FR
Energy Model - Use [B6]	Electricity Mix; Production mix; Low voltage; UE-27
Recyclability Potential In %	74
Nbr. Of Units In Pkg.	1
Silicone-free	No
Warranty (In Months)	18

Environment Attributes Main

China Rohs Regulation	Product out of China RoHS scope , Product out of China RoHS scope. Substance declaration for your information.
Halogene Performance	Product contains halogen above thresholds
Mercury Free	Yes
Carbon Footprint	4.792693706490684
Environmental Disclosure	ENVPEP2307032EN
Halogen Content Performance	Product contains halogen above thresholds
Packaging Without Single Use Plastic	Yes
Pep Code	ENVPEP2307032EN
Pcr Version	PEP-PCR-ed4-2021 09 06
Type Of Verification For The Pep	Independent external review

Take Back	No
Recycled Metal Content At Cr Level	0 %
Silicon Free	No
Circularity Profile	ENVEOLI2307032EN
Eu Rohs Directive	Compliant By Exemption
Packaging Made With Recycled Cardboard	Yes
Reach Regulation	Reference contains Substances of Very High Concern above the threshold
Pep Verification Date	2023-12-03
Psr Version	PSR-0005-ed2-2016 03 29
