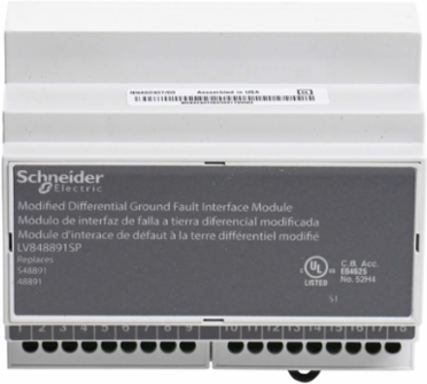

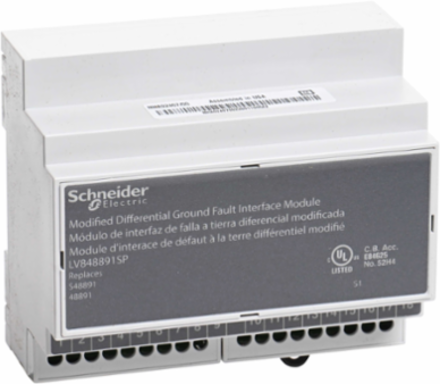

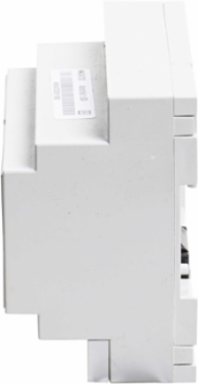

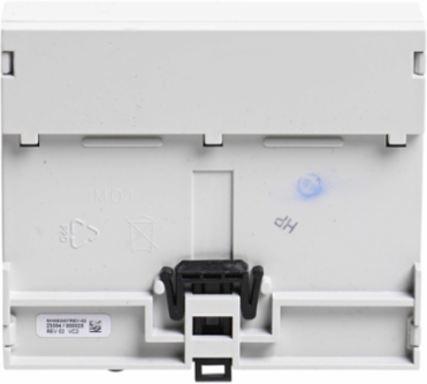

Schneider Electric LV848891SP MDGF Summing Module for MasterPact MTZ1/MTZ2/MTZ3, 59 mm Depth, 90 mm Height, Earth Fault Protection

MPN: LV848891SP
PPN: SCH-LV848891SP

$2055.00

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading dialog...

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

The MDGF Summing Module from Schneider Electric is engineered to enhance the functionality of the MasterPact MTZ series circuit breakers, specifically models MTZ1, MTZ2, and MTZ3. With its compact dimensions of 59 mm in depth and 90 mm in height, this module is designed for seamless integration into various electrical systems, providing critical earth fault protection. This innovative module not only ensures reliable operation but also aids in the efficient monitoring and management of electrical parameters, making it an essential component for maintaining safety and performance in industrial applications.

Documentation & Downloads

Specifications

Key Specifications

Country of Origin	United States
Width	4.17 in

Height	3.54 in
Depth	59 mm

Important Information Attributes

Market Segmentation Id	COMMERCIAL, INDUSTRIAL
Device Application	protection, sensitive control application
Local Publishable Date	2025-11-13
Stocking Flag	N
Serviceability	No
Field Service Division	PPIBS
Scope Perimeter	At least in Europe
Reach Full Compliance Status Id	CONTAINS_SVHC
Rohs Eur In Scope	No
Rohs Eur Conformity Date	1913
China Rohs In Scope	Yes
With Recycled Cardboard	Yes
Product Contributes To Saved And Avoided Emissions	No
Persona Type Names	Panel Builder
Tier	3
Function Option	Standard
Device Short Name	MDGF
Offer Type	spare part
Product Or Component Type	MDGF summing module
Range	MasterPact
Sustainable Packaging	No
Trip Unit Protection Functions	selective + earth-fault protection
Height Nominal	90 mm
Width Nominal	106 mm
Accessory / Separate Part Type	control units accessories
Package Weight(Lbs)	428.900 g
Warranty (In Months)	18

Market Segmentation	Commercial, Industrial
Local Data Status	Publishable
Return Indicator	Y
Stock Policy	2
Traceability	No
Weee Scope	Out
Reach Full Compliance Status	Reference contains Substances of Very High Concern above the threshold
Reach Compliance Directive	Reference contains Substances of Very High Concern above the threshold
Rohs Eur Status	Compliant By Exemption
Rohs Eur Full Compliance Status	Compliant By Exemption
China Rohs Label	7
Without Single Use Plastic	No
Persona Type Ids	PB
Tier Id	3
Function Option Id	STANDARD
Product Kit Identifier	N
Energy Efficiency Optimized	False
Product Availability	Stock - Normally stocked in distribution facility
Provided Equipment	1 instruction sheet
Returnability	Yes
Trip Unit Name	MicroLogic 6.0 X
Trip Unit Technology	electronic
Height Useful	90 mm
Width Real	106 mm
Nbr. Of Units In Pkg.	1
Take-back	No
Customs Code	8538908120

Environment Attributes Main

Take Back	No
China Rohs Regulation	X
Eu Rohs Directive	Compliant By Exemption
Packaging Without Single Use Plastic	No

Recycled Metal Content At Cr Level	0 %
Mercury Free	Yes
Packaging Made With Recycled Cardboard	Yes
Reach Regulation	Reference contains Substances of Very High Concern above the threshold
