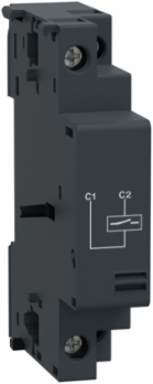

Schneider Electric GVAS026 Shunt release (MX), TeSys Deca, 24V AC 60Hz
- MPN: GVAS026
- PPN: SCH-GVAS026
CAD
$87.88
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
TeSys GV electrical trip, MX shunt release, 24V AC 60Hz, for motor circuit breakers GV2, GV3. It trips the circuit breaker when the control voltage is applied in limits 0.7-1.1 Uc with an impulse duration greater than 20ms or a maintained signal. To be mounted on right-hand side of the circuit breaker, connection by screw clamp terminals. Multi standards certified (IEC, UL, CSA, CCC, EAC).
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | Brazil, Czechia, France |
|---|
| Depth | 66 mm |
|---|
Physical Attributes
| Color | dark grey |
|---|
Complementary Attributes
| Control Circuit Voltage Limits | 0.7...1.1 Un |
|---|
Important Information Attributes
| Persona Type Ids | EU, LC, OM, OM8, PB, SC |
|---|---|
| Market Segmentation Id | COMMERCIAL, INDUSTRIAL |
| Range | TeSys, TeSys Deca |
| Tightening Torque | < 1.4 N.m screw clamp terminals, < 1.4 N.m screw clamp terminals< 1.4 N.m screw clamp terminals, < 1.4 N.m screw clamp terminals |
| Connections - Terminals | screw clamp terminals 2 0.75-2.5 mm²flexible without cable endscrew clamp terminals 2 0.75-1.5 mm²flexible with cable end, screw clamp terminals 1 1-2.5 mm²solid, screw clamp terminals 2 1-2.5 mm²solid, screw clamp terminals 1 0.75-2.5 mm²flexible without cable end, screw clamp terminals 1 0.75-1.5 mm²flexible with cable end |
| Local Publishable Date | 2026-07-28 |
| Stocking Flag | Y |
| Serviceability | No |
| Field Service Division | PPIBS |
| Weee Product Category | 5 |
| Eoli Availability Display | Yes |
| Reach Full Compliance Status | Free of Substances of Very High Concern above the threshold |
| Reach Compliance Directive | Free of Substances of Very High Concern above the threshold |
| Rohs Eur Status | Compliant |
| Rohs Eur Full Compliance Status | Compliant |
| China Rohs Label | 1 |
| Without Single Use Plastic | Yes |
| Tier Id | 1 |
| Function Option Id | STANDARD |
| Product Kit Identifier | N |
| Device Short Name | GVAS |
| Inrush Power In W | 10.5 W |
| Operating Time | 10...15 ms IEC 60947-1 |
| Product Or Component Type | shunt trip release |
| Returnability | No |
| Threshold Tripping Voltage | 0.75...0.2 Un |
| Control Circuit Voltage 14 | 24 V AC 60 Hz |
| Height Nominal | 89 mm |
| [Uc] Control Circuit Voltage | 24 V AC 60 Hz |
| Hold-in Power Consumption In W | 1.6-1.6 W |
| Nbr. Of Units In Pkg. | 1 |
| Take-back | No |
| Customs Code | 8536308000 |
| Persona Type Names | End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician |
|---|---|
| Market Segmentation | Commercial, Industrial |
| Range Of Product | TeSys GV2, TeSys GV3, TeSys Deca |
| [Ui] Rated Insulation Voltage | 690 V AC IEC 60947-1600 V AC UL 60947-4-1, 600 V AC CSA C22.2 No 60947-4-1 |
| Local Data Status | Publishable |
| Return Indicator | N |
| Stock Policy | 2 |
| Traceability | No |
| Weee Scope | In |
| Scope Perimeter | At least in Europe |
| End Of Life Doc Ref | ENVEOLI2207006 |
| Reach Full Compliance Status Id | NOT_CONTAINING_SVHC |
| Rohs Eur In Scope | Yes |
| Rohs Eur Conformity Date | 1929 |
| China Rohs In Scope | No |
| With Recycled Cardboard | Yes |
| Product Contributes To Saved And Avoided Emissions | No |
| Tier | 1 |
| Function Option | Standard |
| Compatibility Code | GVAS |
| Inrush Power In Va | 14-14 VA AC |
| Mechanical Durability | 10000 cycles with GV3P and GV3L30000 cycles with GV2ME and GV2P |
| Product Availability | Non-Stock - Not normally stocked in distribution facility |
| Quantity Per Set | set of 10 |
| Sustainable Packaging | Yes |
| Weee Label | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| Pep Code | ENVPEP2207006EN |
| Width Nominal | 18 mm |
| Hold-in Power Consumption In Va | 5-5 VA AC |
| On-load Factor | 100 % |
| Package Weight(Lbs) | 116.000 g |
| Warranty (In Months) | 18 |
Environment Attributes Main
| China Rohs Regulation | Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope) |
|---|---|
| Reach Free Shvc | Yes |
| Toxic Heavy Metal Free | Yes |
| Circularity Profile | ENVEOLI2207006 |
| Eu Rohs Directive | Compliant |
| Packaging Without Single Use Plastic | Yes |
| Reach Regulation | Free of Substances of Very High Concern above the threshold |
| Take Back | No |
|---|---|
| Recycled Metal Content At Cr Level | 0 % |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP2207006EN |
| Packaging Made With Recycled Cardboard | Yes |
| Reach Free Of Svhc | Yes |
| Pep Code | ENVPEP2207006EN |
General Attributes
| Range Of Product | TeSys GV2, TeSys GV3, TeSys Deca |
|---|
| Product Or Component Type | shunt trip release |
|---|
ETIM
| ETIM 8 | EC001023 |
|---|
| ETIM 9 | EC001023 |
|---|
Contractual Warranty Attributes
| Warranty Period | 18 months |
|---|
| Warranty | 18 months |
|---|
Loading video…
