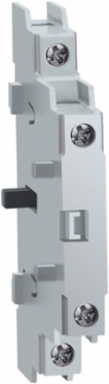

TeSys VLS Disconnect Switch with 1 NC & 1 NO, DIN Rail, 600V
Schneider Electric

Schneider Electric VLSA11RS TeSys VLS Disconnect Switch with 1 NC & 1 NO, DIN Rail, 600V

  • MPN: VLSA11RS
  • PPN: SCH-VLSA11RS
  • If you can't find the product or are unsure which one you need, please use the Product Selector tool below

    • CAD

    $61.86

    / EA

    Available to Order

    Lead times may vary. For an accurate estimate please contact us.

    Available To Ship Immediately:0

    Loading dialog...

    Looking to buy a large quantity?

    To View Branch Inventory And Your Custom Pricing

    Spec sheet

    Description

    These TeSys VLS disconnect switches are for integration into control systems in applications like material handling, HVAC, pumping, solar energy, mining and many more. This family of disconnect switches has switches ranging from 16A to 125A. The 16A, 25A, 32A, 40A and 63A disconnect switches are UL508 motor disconnect switches rated. The 30A, 63A, 80A, 100A and 125A disconnect switches are UL98 non fusible disconnect switch rated. This auxiliary contact can be added to a VLS3P016D1, VLS3P025D1, VLS3P032D1, VLS3P040D1 or VLS3P063D1 door mount switch. This auxiliary contact can also be added to a VLS3P030D2, VLS3P063D2, VLS3P080D2, VLS3P100D2 or VLS3P125D2 door mount switch. This auxiliary contact can be mounted on the right or left hand side. This auxiliary contact has one normally open early break contact. The operational voltage of this auxiliary contact is 600 V. This auxiliary contact block has A600 and Q600 current ratings. The screw clamp terminals will accept 18 AWG to 6 AWG wire. This auxiliary contact is 2.86 inches tall, 0.35 inches wide and 1.82 inches deep. The switch weighs 0.07 lbs. This auxiliary contact module is cULus Listed and meets IEC 60947-3 requirements.

    Features

    • Outfitted with one Normally Open (NO) and one Normally Closed (NC) contact, this auxiliary block allows industrial automation systems to execute dual control-loop functions at once. Panel builders can utilize the NO contact to relay an active status signal to a PLC, while the NC contact triggers an external indicator light or safety alert, streamlining remote status monitoring.
    • Engineered with a symmetrical, ultra-slim 9mm profile, this auxiliary contact block can be snapped directly onto either the left- or right-hand side of the main disconnect switch. This versatile layout saves valuable enclosure space on packed 35mm DIN rails and accommodates tight cable routing without interfering with nearby motor control hardware or standard line terminal lugs.
    • Boasting a 690V AC insulation rating, a 10A conventional free-air thermal current capacity, and an 8 kV impulse withstand voltage, this module thrives in high-voltage industrial setups. It provides reliable feedback control under demanding operations in material handling, HVAC, pumping systems, and solar arrays, preventing tracking failures and internal breakdown during power surges.
    • This accessory is purpose-built to clip seamlessly onto both standard DIN rail and door-mounted TeSys VLS non-fusible and motor disconnect switches ranging from 16A to 125A (including VLS3P and VLS1P body styles). This universal range compatibility eliminates selection confusion and helps facility contractors maintain a single, highly efficient inventory part for all their local machinery isolation needs.

    Documentation & Downloads

    Specifications

    Key Specifications

    Country of Origin
    Czechia, Italy, United States
    Depth46.2 mm

    Physical Attributes

    Color
    Gray

    Complementary Attributes

    Minimum Output Current
    10 mA
    Minimum Output Voltage5 V

    Important Information Attributes

    Persona Type Ids
    LC, OM, OM8, PB
    Market Segmentation Id
    COMMERCIAL, INDUSTRIAL
    Contact Operation
    simultaneous 1 NC, simultaneous 1 NO
    Mounting Location
    right, left
    Certificate Agency
    cULus, GL
    Local Data Status
    Publishable
    Return Indicator
    Y
    Stock Policy
    1
    Traceability
    No
    Weee Scope
    In
    Scope Perimeter
    At least in Europe
    Reach Full Compliance Status Id
    NOT_CONTAINING_SVHC
    Rohs Eur In Scope
    Yes
    Rohs Eur Conformity Date
    2541
    China Rohs In Scope
    No
    With Recycled Cardboard
    Yes
    Product Contributes To Saved And Avoided Emissions
    No
    Tier
    2
    Function Option
    Standard
    Compatibility Code
    VLS
    Device Short Name
    VLSA
    Fire Resistance
    850 °C IEC 60695-2-11
    Network Frequency
    50/60 Hz
    Product Availability
    Stock - Normally stocked in distribution facility
    Range
    TeSys
    Sustainable Packaging
    No
    Weee Label
    The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
    Width Nominal
    9 mm
    [Ithe] Conventional Enclosed Thermal Current
    10 A
    [Uimp] Rated Impulse Withstand Voltage
    8 kV
    Nbr. Of Units In Pkg.
    1
    Take-back
    No
    Customs Code
    8538908140
    Persona Type NamesContractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder
    Market SegmentationCommercial, Industrial
    Mechanical Robustnessvibrations 2...100 Hz Fc 0.7 g) IEC 60068-2-6, shocks 11 ms Ea 15 gn) IEC 60068-2-27
    Network TypeDC, AC
    [Ie] Rated Operational Current6 A AC-15)24 V AC, 6 A AC-15)48 V AC, 6 A AC-15)127 V AC3 A AC-15)240 V AC3 A DC-13)24 V DC, 1.5 A DC-13)48 V DC, 0.55 A DC-13)127 V DC, 0.27 A DC-13)240 V DC
    Local Publishable Date2026-06-27
    Stocking FlagY
    ServiceabilityNo
    Field Service DivisionPPIBS
    Weee Product Category5
    Reach Full Compliance StatusFree of Substances of Very High Concern above the threshold
    Reach Compliance DirectiveFree of Substances of Very High Concern above the threshold
    Rohs Eur StatusCompliant
    Rohs Eur Full Compliance StatusCompliant
    China Rohs Label1
    Without Single Use PlasticNo
    Tier Id2
    Function Option IdSTANDARD
    Product Kit IdentifierN
    Contacts Type And Composition1 NC + 1 NO
    Energy Efficiency OptimizedFalse
    Mounting SupportDIN rail
    Performance Levelhigh performance
    Product Or Component Typeauxiliary contact block
    ReturnabilityYes
    Tightening Torquecontrol circuit 0.8-1 N.m screw clamp terminals
    Height Nominal72.6 mm
    [Ith] Conventional Free Air Thermal Current10 A (at 55 °C)
    [Ue] Rated Operational Voltage690 V AC 50/60 Hz
    Connections - Terminalscontrol circuit screw clamp terminals 2.5-2.5 mm² flexible - without cable end
    Package Weight(Lbs)37.000 g
    Warranty (In Months)18

    Environment Attributes Main

    China Rohs Regulation
    Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope)
    Take Back
    No
    Recycled Metal Content At Cr Level
    0 %
    Mercury Free
    Yes
    Ip Degree Of Protection
    IP20 conforming to IEC 60529
    Packaging Without Single Use Plastic
    No
    Reach Regulation
    Free of Substances of Very High Concern above the threshold
    Ambient Air Temperature For Operation-25-55 °C, -25-55 °C
    Reach Free ShvcYes
    Toxic Heavy Metal FreeYes
    Eu Rohs DirectiveCompliant
    Packaging Made With Recycled CardboardYes
    Reach Free Of SvhcYes

    General Attributes

    Product Or Component Type
    auxiliary contact block

    ETIM

    ETIM 8
    EC000041
    ETIM 9EC000041

    Output Attributes

    Minimum Output Current
    10 mA
    Minimum Output Voltage5 V
