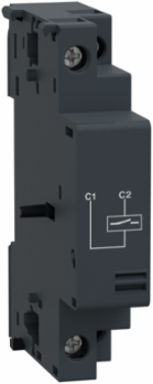

Schneider Electric GVAS415 Shunt release (MX), TeSys Deca, 415-440V AC 50Hz / 480V AC 60Hz
- MPN: GVAS415
- PPN: SCH-GVAS415
CAD
$87.88
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
TeSys GV electrical trip, MX shunt release, 415-440V AC 50Hz / 480V AC 60Hz, for motor circuit breakers GV2, GV3. It trips the circuit breaker when the control voltage is applied in limits 0.7-1.1 Uc with an impulse duration greater than 20ms or a maintained signal. To be mounted on right-hand side of the circuit breaker, connection by screw clamp terminals. Multi standards certified (IEC, UL, CSA, CCC, EAC).
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Brazil, France
Depth66 mm
Physical Attributes
- Color
- dark grey
Complementary Attributes
- Control Circuit Voltage Limits
- 0.7...1.1 Un
Important Information Attributes
- Persona Type Ids
- EU, LC, OM, OM8, PB, SC
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Range
- TeSys, TeSys Deca
- Tightening Torque
- < 1.4 N.m screw clamp terminals, < 1.4 N.m screw clamp terminals< 1.4 N.m screw clamp terminals, < 1.4 N.m screw clamp terminals
- [Ui] Rated Insulation Voltage
- 690 V AC IEC 60947-1600 V AC UL 60947-4-1, 600 V AC CSA C22.2 No 60947-4-1
- Local Data Status
- Publishable
- Return Indicator
- N
- Stock Policy
- 2
- Traceability
- No
- Weee Scope
- In
- Scope Perimeter
- At least in Europe
- End Of Life Doc Ref
- ENVEOLI2207006
- Reach Full Compliance Status Id
- NOT_CONTAINING_SVHC
- Rohs Eur In Scope
- Yes
- Rohs Eur Conformity Date
- 1929
- China Rohs In Scope
- No
- With Recycled Cardboard
- Yes
- Product Contributes To Saved And Avoided Emissions
- No
- Tier
- 1
- Function Option
- Standard
- Compatibility Code
- GVAS
- Inrush Power In Va
- 14-14 VA AC
- Mechanical Durability
- 10000 cycles with GV3P and GV3L30000 cycles with GV2ME and GV2P
- Product Availability
- Non-Stock - Not normally stocked in distribution facility
- Quantity Per Set
- set of 10
- Sustainable Packaging
- Yes
- Weee Label
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Height Nominal
- 89 mm
- [Uc] Control Circuit Voltage
- 415...440 V AC 50 Hz480 V AC 60 Hz
- Hold-in Power Consumption In W
- 1.6-1.6 W
- Nbr. Of Units In Pkg.
- 1
- Take-back
- No
- Customs Code
- 8536308000
Persona Type NamesEnd User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician
Market SegmentationCommercial, Industrial
Range Of ProductTeSys GV2, TeSys GV3, TeSys Deca
Control Circuit Voltage 14415...440 V AC 50 Hz, 480 V AC 60 Hz
Connections - Terminalsscrew clamp terminals 2 0.75-2.5 mm²flexible without cable endscrew clamp terminals 2 0.75-1.5 mm²flexible with cable end, screw clamp terminals 1 1-2.5 mm²solid, screw clamp terminals 2 1-2.5 mm²solid, screw clamp terminals 1 0.75-2.5 mm²flexible without cable end, screw clamp terminals 1 0.75-1.5 mm²flexible with cable end
Local Publishable Date2025-07-09
Stocking FlagY
ServiceabilityNo
Field Service DivisionPPIBS
Weee Product Category5
Eoli Availability DisplayYes
Reach Full Compliance StatusFree of Substances of Very High Concern above the threshold
Reach Compliance DirectiveFree of Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant
Rohs Eur Full Compliance StatusCompliant
China Rohs Label1
Without Single Use PlasticYes
Tier Id1
Function Option IdSTANDARD
Product Kit IdentifierN
Device Short NameGVAS
Inrush Power In W10.5 W
Operating Time10...15 ms IEC 60947-1
Product Or Component Typeshunt trip release
ReturnabilityNo
Threshold Tripping Voltage0.75...0.2 Un
Pep CodeENVPEP2207006EN
Width Nominal18 mm
Hold-in Power Consumption In Va5-5 VA AC
On-load Factor100 %
Package Weight(Lbs)113.000 g
Warranty (In Months)18
Environment Attributes Main
- China Rohs Regulation
- Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope)
- Reach Free Shvc
- Yes
- Toxic Heavy Metal Free
- Yes
- Circularity Profile
- ENVEOLI2207006
- Eu Rohs Directive
- Compliant
- Packaging Without Single Use Plastic
- Yes
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
Take BackNo
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Environmental DisclosureENVPEP2207006EN
Packaging Made With Recycled CardboardYes
Reach Free Of SvhcYes
Pep CodeENVPEP2207006EN
General Attributes
- Range Of Product
- TeSys GV2, TeSys GV3, TeSys Deca
Product Or Component Typeshunt trip release
ETIM
- ETIM 8
- EC001023
ETIM 9EC001023
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
