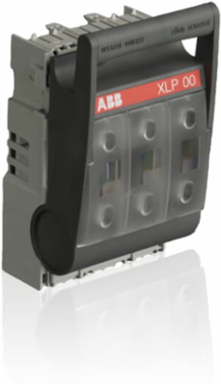

ABB 1SEP101890R0002 XLP00-6BC Fuse Switch Disconnector
- MPN: 1SEP101890R0002
- UPC: 888614204638
- PPN: ABB-1SEP101890R0002
CAD
$435.40
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
XLP00,3-pole,160A, incl. 6 Bridge Clamps
Specifications
Dimensions
- Product Net Width
- 105 mm
- Product Net Depth / Length
- 90 mm
Product Net Height187 mm
Product Net Weight0.57 kg
Technical
- Rated Operational Current AC-21B (Ie)
- (690 V) 125 A
- Rated Operational Current AC-23B (Ie)
- (400V) 125 A
- Rated Operational Voltage
- 400 V AC500 V AC690 V AC800 V AC1000 V AC
- Rated Conditional Short-Circuit Current (Inc)
- (690 V) 50 kiloampere rms
- Handle Type
- Front cover 3P
- Fuse System
- DIN
- Special Functions
- Not Included
- Number of Poles
- 3
- Terminal Type
- Cable Clamp
- Rated Current (In)
- 160 A
- Electronic Fuse Monitoring
- No
Rated Operational Current AC-22B (Ie)(500 V) 160 A(800 V) 63 A(1000 V) 125 A
Rated Impulse Withstand Voltage (Uimp)Main Circuit 8 kV
Rated Frequency (f)Main Circuit 50/60 Hz
Power Lossat Rated Load 3.5 W
Fuse SizeNH00NH000
StandardsIEC60947-3GB/T14048.3
Mounting TypeBaseplate
Degree of ProtectionIP30
Device Type Manager (DTM)Fuseswitchdisconnector
Rated Voltage (Ur)400 V AC500 V AC690 V AC800 V AC1000 V AC
Classifications
- Object Classification Code
- S
- eClass
- V11.1 : 27371401
- E-Number (Finland)
- 3601019
ETIM 9EC001040 - Fuse switch disconnector
WEEE Category5. Small Equipment (No External Dimension More Than 50 cm)
E-Number (Sweden)2307311
Environmental
- RoHS Status
- Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Circular Value
- Conflict Minerals Reporting Template (CMRT)
- 9AKK108467A5658
- RoHS Information
- 1SCC011020D0201
REACH Declaration1SCC011021D0201
Ordering
- Minimum Order Quantity
- 1 piece
- Country of Origin
- Bulgaria (BG)China (CN)
Customs Tariff Number85389099
