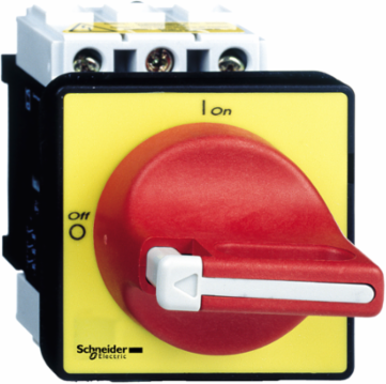

Schneider Electric VCD01 TeSys Vario Switch Disconnector, 3 Poles, 20A, IP65, Emergency Stop Function
- MPN: VCD01
- PPN: SCH-VCD01
CAD
$121.65
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
VCD01 is a 3-pole TeSys Vario switch-disconnector from Schneider Electric. Rated 20A 690V, it is used for main and emergency stop switching in motor applications up to 5.5kW@400V AC-23. Composed of a V1 switch body, and a red padlockable handle, and a yellow 60x60mm front plate. For door mounting, with a central fixing handle, it ensures IP65 to the mounting. Available worldwide, multi-standards certified (IEC, UL, CSA, CCC, EAC, Marine). Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine).
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Brazil, Czechia, France, United States
Physical Attributes
- Handle Color
- red
Handle Front Plate Coloryellow
Complementary Attributes
- Rated Operational Power In W
- 7.5 kW 690 V AC-3), 4 kW 230...240 V AC-23A), 5.5 kW 400...415 V AC-23A), 11 kW 690 V AC-23A), 3 kW 230...240 V AC-3)4 kW 400...415 V AC-3)5.5 kW 500 V AC-3), 7.5 kW 500 V AC-23A)
Important Information Attributes
- Persona Type Ids
- EU, LC, OM, OM8, PB
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Device Composition
- switch, handle
- Mounting Support
- handle door, switch door
- Certificate Agency
- GL, UL, CSA, CCC, UKCA
- Rated Conditional Short-circuit Current
- 10 kA 400 V 20 A aM, 10 kA 400 V 20 A gG
- Carbon Footprint Of The End-of-life Phase [C1 To C4]
- 0.5701465250839837, 0.6 kg CO2 eq.
- Carbon Footprint Of The Manufacturing Phase [A1 To A3]
- 1 kg CO2 eq., 1.3581194397235652
- Local Data Status
- Publishable
- Return Indicator
- Y
- Stock Policy
- 2
- Serviceability
- No
- Field Service Division
- PPIBS
- Service Catalog Item
- Finished good
- Weee Product Category
- 5
- Eoli Availability Display
- No need of specific recycling operations
- Reach Full Compliance Status Id
- CONTAINS_SVHC
- Rohs Eur In Scope
- Yes
- Rohs Eur Conformity Date
- 1936
- China Rohs In Scope
- No
- With Recycled Cardboard
- Yes
- Product Contributes To Saved And Avoided Emissions
- No
- Tier
- 2
- Function Option
- Standard
- Base Dimension
- 60 x 60 mm
- Contacts Type And Composition
- 3 NO
- Device Short Name
- VCD
- Fire Resistance
- 960 °C IEC 60695-2-1
- Intermittent Duty Class
- 30
- Mechanical Durability
- 100000 cycles
- Number Of Poles
- 3P
- Product Availability
- Stock - Normally stocked in distribution facility
- Product Or Component Type
- emergency stop switch disconnector
- Range
- TeSys
- Rotary Handle Mounting Style
- direct
- Software Version
- v6.1
- Sustainable Packaging
- Yes
- Total Lifecycle Carbon Footprint
- 31 kg CO2 eq.
- Handle Color
- red
- Thermal Current 3
- 20 A
- Database Version
- 2023-02
- Pcr Version
- PCR-4-ed4-EN-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
- Functional-unit Description
- Turn off all or part of an installation by separating the installation or part of the installation of all electrical energy or earth, for safety reasons with a rated voltage U, and rated current In ensuring isolation characterised by a rated voltage Ui, and if applicable the specific specifications, according to the appropriate use scenario, and during the reference service life of the product of 20 years.
- Functional-unit Unit
- unit
- Energy Consumption On Product Lifetime In Kwh
- 433.62
- Energy Model - Installation [A5]
- Electricity Mix; Low voltage; 2018; France, FR
- Energy Model - End Of Life [C1-c4]
- Electricity Mix; Low voltage; 2018; France, FR
- Height Nominal
- 74 mm
- [Icm] Rated Short-circuit Making Capacity
- 1 kA 400 V at Ipeak
- [Ie] Rated Operational Current
- 11 A AC-23 Ue: 400 V
- [Ithe] Conventional Enclosed Thermal Current
- 16 A
- [Uimp] Rated Impulse Withstand Voltage
- 8 kV
- Nbr. Of Units In Pkg.
- 1
- Take-back
- No
- Customs Code
- 8536509025
Persona Type NamesEnd User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder
Market SegmentationCommercial, Industrial
Making Capacity200 A 400 V AC-21A, 200 A 400 V AC-22A, 200 A 400 V AC-23A
Network TypeDC, AC
Connections - Terminalspower circuit screw clamp terminals 10-10 mm² solid, power circuit screw clamp terminals 6-6 mm² flexible - with cable end
Carbon Footprint Of The Distribution Phase [A4]0.0418963550610933, 0 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]0 kg CO2 eq., 0.01885065599961971
Carbon Footprint Of The Use Phase [B2 B3 B4 B6]29 kg CO2 eq., 28.971796700100345
Local Publishable Date2026-06-27
Stocking FlagN
Device TypeLV equipment - LV switch - disconnector
TraceabilityNo
Average Life Duration15 year(s)
Weee ScopeIn
Scope PerimeterAt least in Europe
Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant
Rohs Eur Full Compliance StatusCompliant
China Rohs Label1
Without Single Use PlasticYes
Tier Id2
Function Option IdSTANDARD
Product Kit IdentifierN
Compatibility Codemain switch disconnector
Control Typerotary handle
Electrical Durability100000 cycles AC-2130000 cycles DC-1...5
Fixing Modehole 22.5 mm handle
Marking0 - 1
Mechanical Robustnessvibrations 10...150 Hz 1 gn) IEC 60068-2-6shocks 11 ms 30 Gn) IEC 60068-2-27
Performance Levelhigh performance
Product NameTeSys VARIO
Protective TreatmentTC
ReturnabilityYes
Rotary Handle Padlocking1 to 3 padlocks 4-8 mm
Suitability For Isolationyes
Tightening Torquepower circuit 2.1-2.1 N.m screw clamp terminals
Weee LabelThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Handle Front Plate Coloryellow
Pep CodeENVPEP2211006EN
Pep Verification Date2025-08-05
Psr VersionPSR-0005-ed3.1-EN-2023 12 08
Data Sourceextrapolated product
Functional-unit Quantity1
Reference Lifetime In Y20
Energy Model - Manufacturing [A1-a3]Czech Republic, CZ
Energy Model - Use [B6]Electricity Mix; Low voltage; 2018; France, FR
Recyclability Potential In %57
Width Nominal60 mm
[Icw] Rated Short-time Withstand Current300 A 400 V 1 s
[Ith] Conventional Free Air Thermal Current20 A
[Ue] Rated Operational Voltage690 V AC 50/60 Hz
Halogen-free StatusHalogen free product
Package Weight(Lbs)225.000 g
Warranty (In Months)18
Environment Attributes Main
- China Rohs Regulation
- Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope)
- Ip Degree Of Protection
- IP20 conforming to IEC 60529, IP65
- Halogene Performance
- Halogen free product
- Toxic Heavy Metal Free
- Yes
- Carbon Footprint
- 30.96080967596861
- Eu Rohs Directive
- Compliant
- Packaging Made With Recycled Cardboard
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Pep Verification Date
- 2025-08-05
- Psr Version
- PSR-0005-ed3.1-EN-2023 12 08
Ambient Air Temperature For Operation-20-50 °C, -20-50 °C
Take BackNo
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Environmental DisclosureENVPEP2211006EN
Halogen Content PerformanceHalogen free product
Packaging Without Single Use PlasticYes
Pep CodeENVPEP2211006EN
Pcr VersionPCR-4-ed4-EN-2021 09 06
Type Of Verification For The PepIndependent internal review
General Attributes
- Product Or Component Type
- emergency stop switch disconnector
ETIM
- ETIM 8
- EC000216
ETIM 9EC000216
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
