Schneider Electric VCCF4 TeSys Vario 3P Switch Disconnector, 80A/690V, IP65, Emergency Stop
- MPN: VCCF4
- PPN: SCH-VCCF4
CAD
$273.35
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

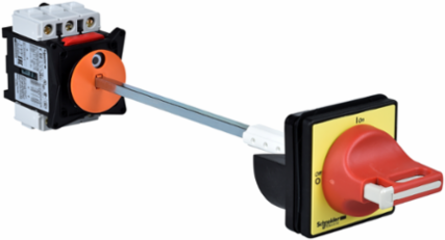

VCCF4 is a 3-pole TeSys Vario switch-disconnector from Schneider Electric. Rated 80A 690V, it is used for main and emergency stop switching in motor applications up to 30kW@400V AC-23. Composed of a V4 switch body, extension shaft, red padlockable handle, and a yellow 60x60mm front plate. For enclosure back mounting, with a 4 screw fixing handle, it ensures IP65 to the mounting. Available worldwide, multi-standards certified (IEC, UL, CSA, CCC, EAC, Marine). Possible distance between back of enclosure and door 300-320mm. Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine).
Features
- Engineered with an 80-Amp, 690V AC continuous current rating, this 3-pole TeSys Vario switch provides high-capacity, heavy-duty electrical isolation for large motors and industrial manufacturing lines. It functions flawlessly as a main or emergency-stop disconnect, giving machine operators a highly reliable way to completely cut power before performing routine maintenance or layout modifications.
- Outfitted with a high-visibility red rotary handle and a contrasting yellow front plate, this disconnect complies with global emergency-stop visibility standards. The ergonomic handle accommodates up to three separate padlocks simultaneously, ensuring field technicians can securely lock out the power grid and prevent accidental re-energization during critical machinery overhauls.
- Featuring a highly practical door-mounting architecture, the VCCF4 allows the operating handle to fix directly to the front enclosure panel while coupling securely to the switch body. This clean, space-saving configuration eliminates the need for complex, extended shaft linkages and maximizes available depth inside tight electrical sub-panels and motor control boxes.
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | Brazil, Czechia, Germany, France |
|---|
Physical Attributes
| Handle Color | red |
|---|
| Handle Front Plate Color | yellow |
|---|
Complementary Attributes
| Rated Operational Power In W | 18.5 kW 230...240 V AC-23A), 30 kW 400...415 V AC-23A), 18.5 kW 690 V AC-3)15 kW 230...240 V AC-3)22 kW 400...415 V AC-3)30 kW 500 V AC-3), 30 kW 690 V AC-23A), 37 kW 500 V AC-23A) |
|---|
Important Information Attributes
| Persona Type Ids | EU, LC, OM, OM8, PB |
|---|---|
| Market Segmentation Id | COMMERCIAL, INDUSTRIAL |
| Device Composition | handle, switch, shaft extension |
| Fixing Mode | by 4 screws handleby clips switch, by screws switch |
| Mounting Support | handle doorswitch symmetrical rail, switch plate |
| Certificate Agency | UL, GL, CSA, CCC, UKCA |
| Rated Conditional Short-circuit Current | 10 kA 400 V 80 A aM, 10 kA 400 V 80 A gG |
| Carbon Footprint Of The End-of-life Phase [C1 To C4] | 1.8032541258470183, 2 kg CO2 eq. |
| Carbon Footprint Of The Manufacturing Phase [A1 To A3] | 4 kg CO2 eq., 4.295447530288486 |
| Local Data Status | Publishable |
| Return Indicator | Y |
| Stock Policy | 2 |
| Serviceability | No |
| Field Service Division | PPIBS |
| Weee Scope | In |
| Scope Perimeter | At least in Europe |
| Reach Full Compliance Status | Reference contains Substances of Very High Concern above the threshold |
| Reach Compliance Directive | Reference contains Substances of Very High Concern above the threshold |
| Rohs Eur Status | Compliant |
| Rohs Eur Full Compliance Status | Compliant |
| China Rohs Label | 1 |
| Without Single Use Plastic | Yes |
| Tier Id | 2 |
| Function Option Id | STANDARD |
| Product Kit Identifier | N |
| Compatibility Code | main switch disconnector |
| Control Type | rotary handle |
| Fire Resistance | 960 °C IEC 60695-2-1 |
| Marking | 0 - 1 |
| Mechanical Robustness | vibrations 10...150 Hz 1 gn) IEC 60068-2-6shocks 11 ms 30 Gn) IEC 60068-2-27 |
| Performance Level | high performance |
| Product Name | TeSys VARIO |
| Protective Treatment | TC |
| Returnability | Yes |
| Rotary Handle Padlocking | 1 to 3 padlocks 4-8 mm |
| Suitability For Isolation | yes |
| Tightening Torque | power circuit 4-4 N.m screw clamp terminals |
| Weee Label | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| Handle Front Plate Color | yellow |
| Pep Code | ENVPEP2211006EN |
| Pep Verification Date | 2025-08-05 |
| Psr Version | PSR-0005-ed3.1-EN-2023 12 08 |
| Data Source | extrapolated product |
| Functional-unit Quantity | 1 |
| Reference Lifetime In Y | 20 |
| Energy Model - Manufacturing [A1-a3] | Czech Republic, CZ |
| Energy Model - Use [B6] | Electricity Mix; Low voltage; 2018; France, FR |
| Recyclability Potential In % | 57 |
| Width Nominal | 60 mm |
| [Icw] Rated Short-time Withstand Current | 960 A 400 V 1 s |
| [Ith] Conventional Free Air Thermal Current | 80 A |
| [Ue] Rated Operational Voltage | 690 V AC 50/60 Hz |
| Nbr. Of Units In Pkg. | 1 |
| Take-back | No |
| Customs Code | 8536509025 |
| Persona Type Names | End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder |
|---|---|
| Market Segmentation | Commercial, Industrial |
| Electrical Durability | 30000 cycles AC-21, 30000 cycles DC-1...5 |
| Making Capacity | 800 A 400 V AC-21A, 800 A 400 V AC-22A, 800 A 400 V AC-23A |
| Network Type | DC, AC |
| Connections - Terminals | power circuit screw clamp terminals 25-25 mm² solid, power circuit screw clamp terminals 16-16 mm² flexible - with cable end |
| Carbon Footprint Of The Distribution Phase [A4] | 0.13250940205369047, 0.1 kg CO2 eq. |
| Carbon Footprint Of The Installation Phase [A5] | 0.1 kg CO2 eq., 0.059620679440657694 |
| Carbon Footprint Of The Use Phase [B2 B3 B4 B6] | 29 kg CO2 eq., 28.971796700100345 |
| Local Publishable Date | 2026-06-27 |
| Stocking Flag | N |
| Device Type | LV equipment - LV switch - disconnector |
| Traceability | No |
| Average Life Duration | 15 year(s) |
| Weee Product Category | 5 |
| Eoli Availability Display | No need of specific recycling operations |
| Reach Full Compliance Status Id | CONTAINS_SVHC |
| Rohs Eur In Scope | Yes |
| Rohs Eur Conformity Date | 1936 |
| China Rohs In Scope | No |
| With Recycled Cardboard | Yes |
| Product Contributes To Saved And Avoided Emissions | No |
| Tier | 2 |
| Function Option | Standard |
| Base Dimension | 60 x 60 mm |
| Contacts Type And Composition | 3 NO |
| Device Short Name | VCCF |
| Intermittent Duty Class | 30 |
| Mechanical Durability | 30000 cycles |
| Number Of Poles | 3P |
| Product Availability | Stock - Normally stocked in distribution facility |
| Product Or Component Type | emergency stop switch disconnector |
| Range | TeSys |
| Rotary Handle Mounting Style | extended |
| Software Version | v6.1 |
| Sustainable Packaging | No |
| Total Lifecycle Carbon Footprint | 35 kg CO2 eq. |
| Handle Color | red |
| Thermal Current 3 | 80 A |
| Database Version | 2023-02 |
| Pcr Version | PCR-4-ed4-EN-2021 09 06 |
| Type Of Verification For The Pep | Independent internal review |
| Functional-unit Description | Turn off all or part of an installation by separating the installation or part of the installation of all electrical energy or earth, for safety reasons with a rated voltage U, and rated current In ensuring isolation characterised by a rated voltage Ui, and if applicable the specific specifications, according to the appropriate use scenario, and during the reference service life of the product of 20 years. |
| Functional-unit Unit | unit |
| Energy Consumption On Product Lifetime In Kwh | 433.62 |
| Energy Model - Installation [A5] | Electricity Mix; Low voltage; 2018; France, FR |
| Energy Model - End Of Life [C1-c4] | Electricity Mix; Low voltage; 2018; France, FR |
| Height Nominal | 83 mm |
| [Icm] Rated Short-circuit Making Capacity | 2.1 kA 400 V at Ipeak |
| [Ie] Rated Operational Current | 57 A AC-23 Ue: 400 V |
| [Ithe] Conventional Enclosed Thermal Current | 63 A |
| [Uimp] Rated Impulse Withstand Voltage | 8 kV |
| Package Weight(Lbs) | 567.000 g |
| Warranty (In Months) | 18 |
Environment Attributes Main
| China Rohs Regulation | Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope) |
|---|---|
| Ip Degree Of Protection | IP20 conforming to IEC 60529, IP65 |
| Recycled Metal Content At Cr Level | 0 % |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP2211006EN |
| Packaging Made With Recycled Cardboard | Yes |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| Pep Verification Date | 2025-08-05 |
| Psr Version | PSR-0005-ed3.1-EN-2023 12 08 |
| Ambient Air Temperature For Operation | -20-50 °C, -20-50 °C |
|---|---|
| Take Back | No |
| Toxic Heavy Metal Free | Yes |
| Carbon Footprint | 35.2626284377302 |
| Eu Rohs Directive | Compliant |
| Packaging Without Single Use Plastic | Yes |
| Pep Code | ENVPEP2211006EN |
| Pcr Version | PCR-4-ed4-EN-2021 09 06 |
| Type Of Verification For The Pep | Independent internal review |
General Attributes
| Product Or Component Type | emergency stop switch disconnector |
|---|
ETIM
| ETIM 8 | EC000216 |
|---|
| ETIM 9 | EC000216 |
|---|
Contractual Warranty Attributes
| Warranty Period | 18 months |
|---|
| Warranty | 18 months |
|---|
