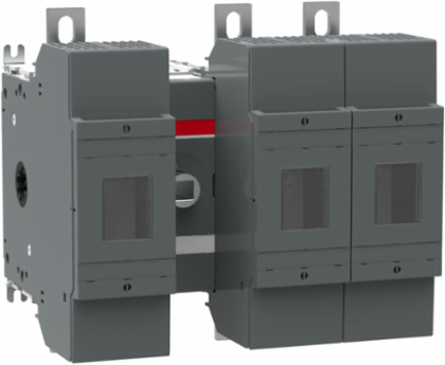

ABB OS400J12 OS400J12 FUSIBLE DISCONNECT SWITCH
- MPN: OS400J12
- UPC: 662019481265
- PPN: ABB-OS400J12
- UNSPSC: 39122233
CAD
$2314.77
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Switch Fuses,Front Operated,3-pole,12 (Between the Poles),Class J,400 A,Handle and shaft not included,
Specifications
Dimensions
- Product Net Width
- 254 mm
- Product Net Depth / Length
- 176 mm
Product Net Height230 mm
Product Net Weight6.4 kg14.11 lb
Technical
- Rated Operational Current AC-21A (Ie)
- (500 V) 400 A(690 V) 400 A
- Rated Operational Current AC-23A (Ie)
- (380 ... 415 V) 400 A(500 V) 400 A(690 V) 400 A
- Conventional Free-air Thermal Current (Ith)
- Θ = 40 °C 400 A
- Rated Impulse Withstand Voltage (Uimp)
- 12 kV
- Rated Operational Voltage
- Main Circuit 690 V AC
- Rated Conditional Short-Circuit Current (Inc)
- (690 V) 80 kA
- Pollution Degree
- 3
- Switches Operating Mechanism
- 12 (Between the Poles)
- Fuse Size
- 400 A
- Operating Mode
- Front Operated
- Mounting Type
- Base mounting
- Terminal Type
- Lug terminals
- Tightening Torque
- 30 ... 44 N·m
Rated Operational Current AC-22A (Ie)(380 ... 415 V) 400 A(500 V) 400 A(690 V) 400 A
Rated Operational Power AC-23A (Pe)(220 ... 240 V) 132 kW(400 V) 220 kW(415 V) 230 kW(500 V) 280 kW(690 V) 400 kW
Conventional Thermal Current (Ithe)Fully Enclosed 400 A
Rated Insulation Voltage (Ui)1000 V
Rated Short-time Withstand Current Low Voltage (Icw)for 1 s 14 kiloampere rms
Power Lossat Rated Operating Conditions per Pole 45 W
Handle TypeHandle and shaft not included
Position of Line TerminalsTop In - Bottom Out, Bottom In - Top Out
Fuse SystemClass J
StandardsUL98IEC 60947-3
Number of Poles3
Terminal Width25 mm
Rated Current (In)Main Circuit 400 A
Classifications
- Object Classification Code
- Q
- IDEA Granular Category Code (IGCC)
- 5291 >> Fuse switch disconnector
- WEEE Category
- 5. Small Equipment (No External Dimension More Than 50 cm)
ETIM 9EC001040 - Fuse switch disconnector
eClassV11.1 : 27371401
Environmental
- RoHS Status
- Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Circular Value
- Conflict Minerals Reporting Template (CMRT)
- 9AKK108467A5658
- RoHS Information
- 1SCC011020D0201
REACH Declaration1SCC011021D0201
Technical UL/CSA
- Ampere Rating
- 400 A
- Tightening Torque
- 30 ... 44 N·m
Horsepower Rating UL/CSA(acc. to UL 240 V) 125 Hp(acc. to UL 480 V) 250 Hp(acc. to UL 600 V) 350 Hp
Tightening Torque UL/CSAWire-Clamp 375 in·lbCable Lug 240 in·lb
Ordering
- Minimum Order Quantity
- 1 piece
- Country of Origin
- Finland (FI)
Customs Tariff Number85365080
